1-38 American-Lincoln
MPV 60
SERVICE INSTRUCTIONS
AIR INTAKE SYSTEM
NOTE
Monitor the air filter indicator daily
The importance of replacing the air filter at the appropriate time cannot be overemphasized. Even a small amount of
dirt ingested through the air intake system will wear out a set of piston rings in just a few hours.
Always cover the air intake when removing the air filter for replacement. Keep all other air intake components, such
as hoses and clamps, secure and in good condition to prevent intake of unfiltered air.
AIR FILTER
The elements contained within this air filter are NOT reusable. There is no interim cleaning involved other than a
daily emptying of the dust collector housed in the filter cap. Squeeze and release the rubber valve on the filter
cap several times to expel any dust or dirt that has accumulated. Replace BOTH the safety and main filter
elements when the filter service indicator reaches the red band. The indicator will remain at the red band level
even after the engine has been shut down. Reset the indicator by depressing the black button at the bottom.
TO REPLACE AIR FILTER ELEMENTS
1. Stop the engine and engage the machine parking brake.
WARNING
Always park on a level surface, stop the engine, and engage parking brake before working on the machine to keep
it from creeping or rolling.
2. Unhook the two latches on the filter housing
3. Remove the cap
4. Clean dust collector (housed in cap) by squeezing and releasing the rubber valve several times
5. Remove both filter elements and discard
6. Insert new safety and main filter elements
7. Replace cap and close latches

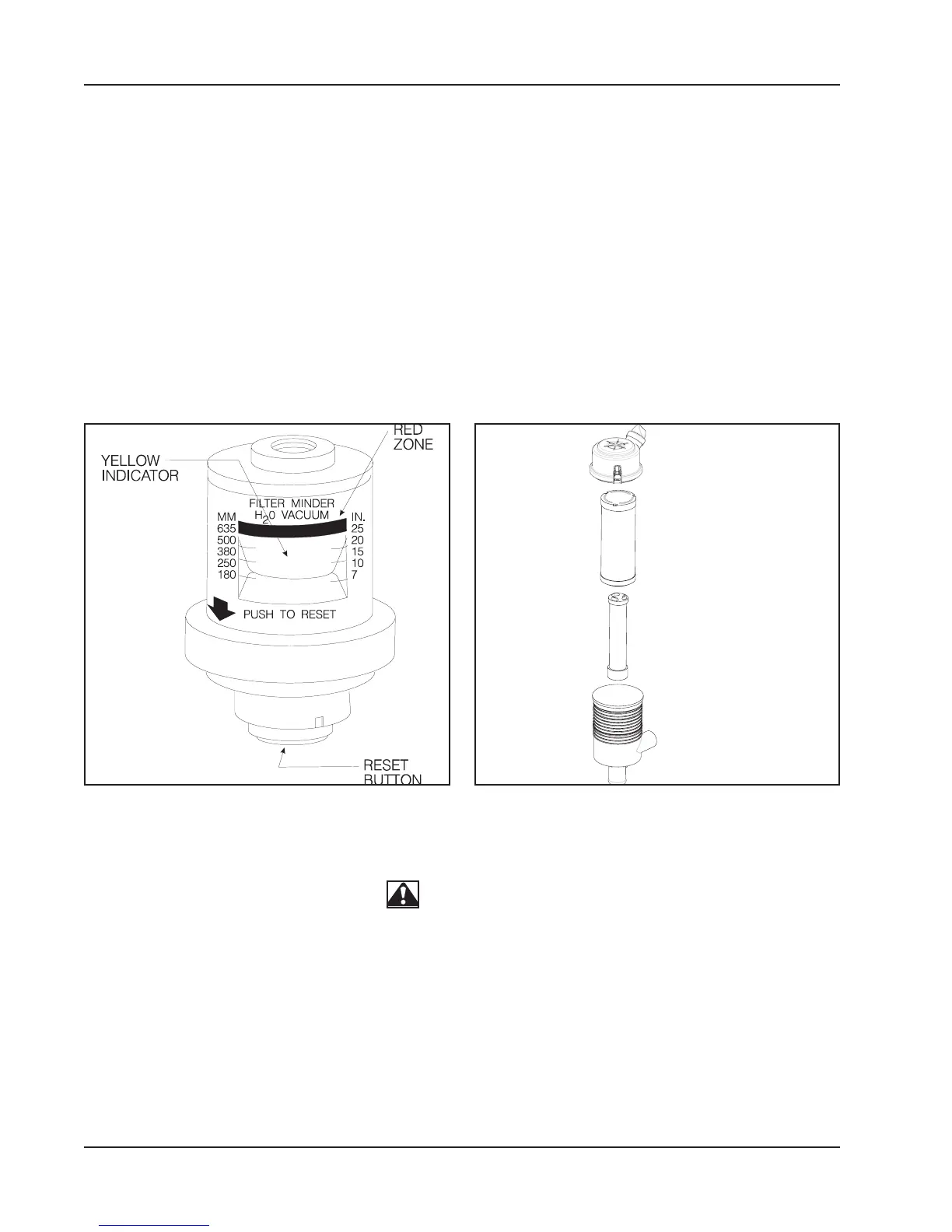

P4713 FIGURE 38a FIGURE 38b
AIR FILTER HOUSING
SAFETY FILTER ELEMENT
MAIN FILTER ELEMENT
AIR FILTER CAP
w/DUST COLLECTOR
DUST COLLECTOR
RUBBER VALVE
