SIDE BROOM LEVER (figure 16)
The side broom lever is located on the right side of the
instrument panel. The side broom lever raises and lowers the
side broom. Use the brooms lever on the operator’s center
console to turn on the side broom.
To raise the side broom, pull the lever back into the “UP”
position.
To lower the side broom, move the lever out of the “UP”
position and move it forward to the “DOWN” position.
SIDE BROOM ADJUSTMENT (figure 16)
The side broom lever has an adjustment for changing the
sweep height to compensate for broom wear. The side broom
adjustment is located under the right side of the instrument
panel.
To Adjust the side broom height turn the threaded knob. (See
page 30 for adjustment instructions)
MAIN BROOM LEVER (figure 17)
The main broom lever is located on the left side of the
instrument panel. The main broom lever has three positions
and controls the main broom sweep height. Use the brooms
lever on the operator’s center console to turn on the main
broom.
To lower the main broom, grasp the lever and move it to the
left out of the “UP” position and place in the “SWEEP” or
“FLOAT” position.
The “SWEEP” position is used for normal sweeping and
should be used under most sweeping conditions.
The “FLOAT” position is used for sweeping very uneven
surfaces only. Using the Float position will cause premature
wear on the main broom if used under normal operating
conditions for extended periods of time.
MAIN BROOM ADJUSTMENT (figure 17)
The main broom lever has an adjustment for changing the
sweep height to compensate for broom wear. The main
broom adjustment is located under the left side of the
instrument panel.
To Adjust the main broom height turn the threaded knob.
(See page 29 for adjustment instructions)

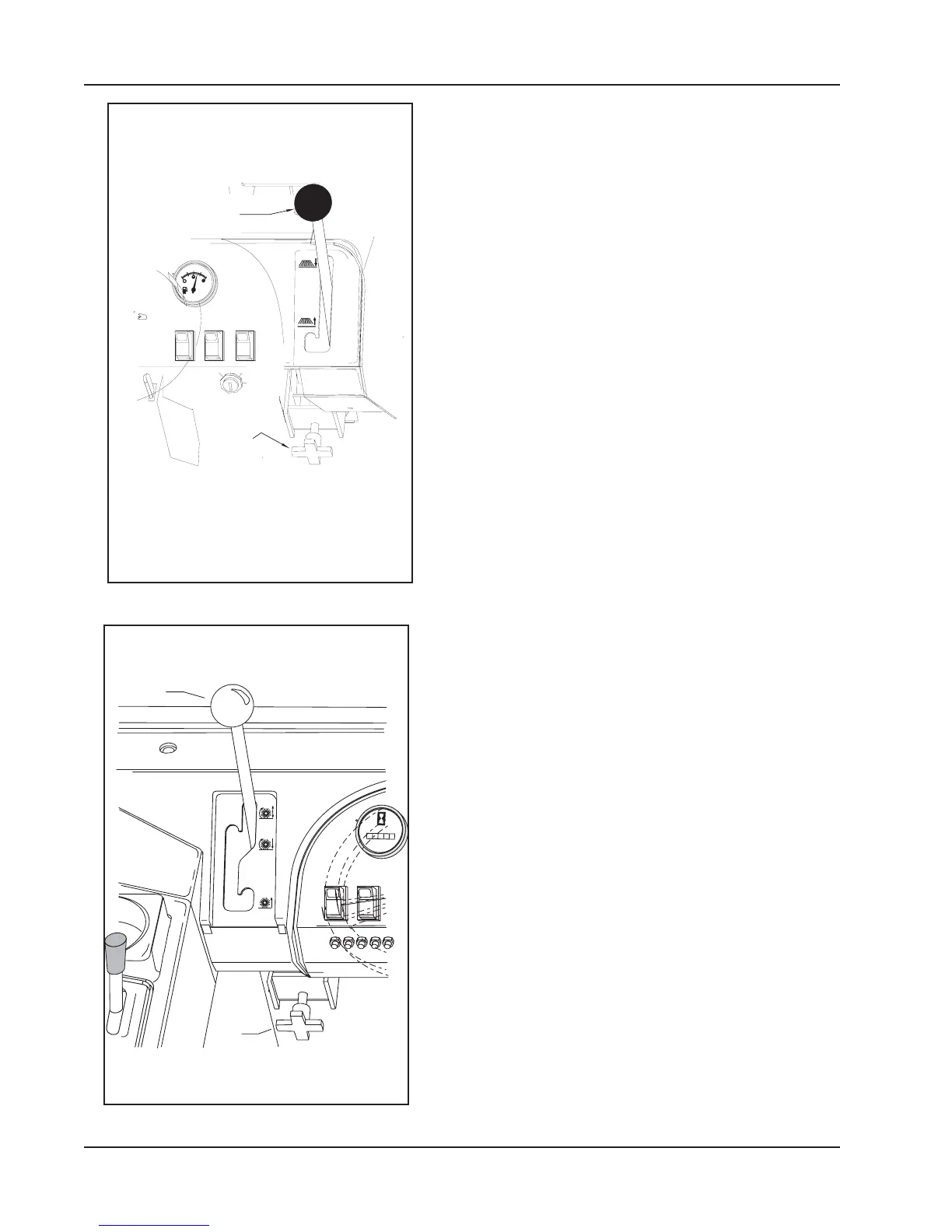

SWEEPER CONTROLS/INSTRUMENTS
