1-18 American-Lincoln
MPV 60

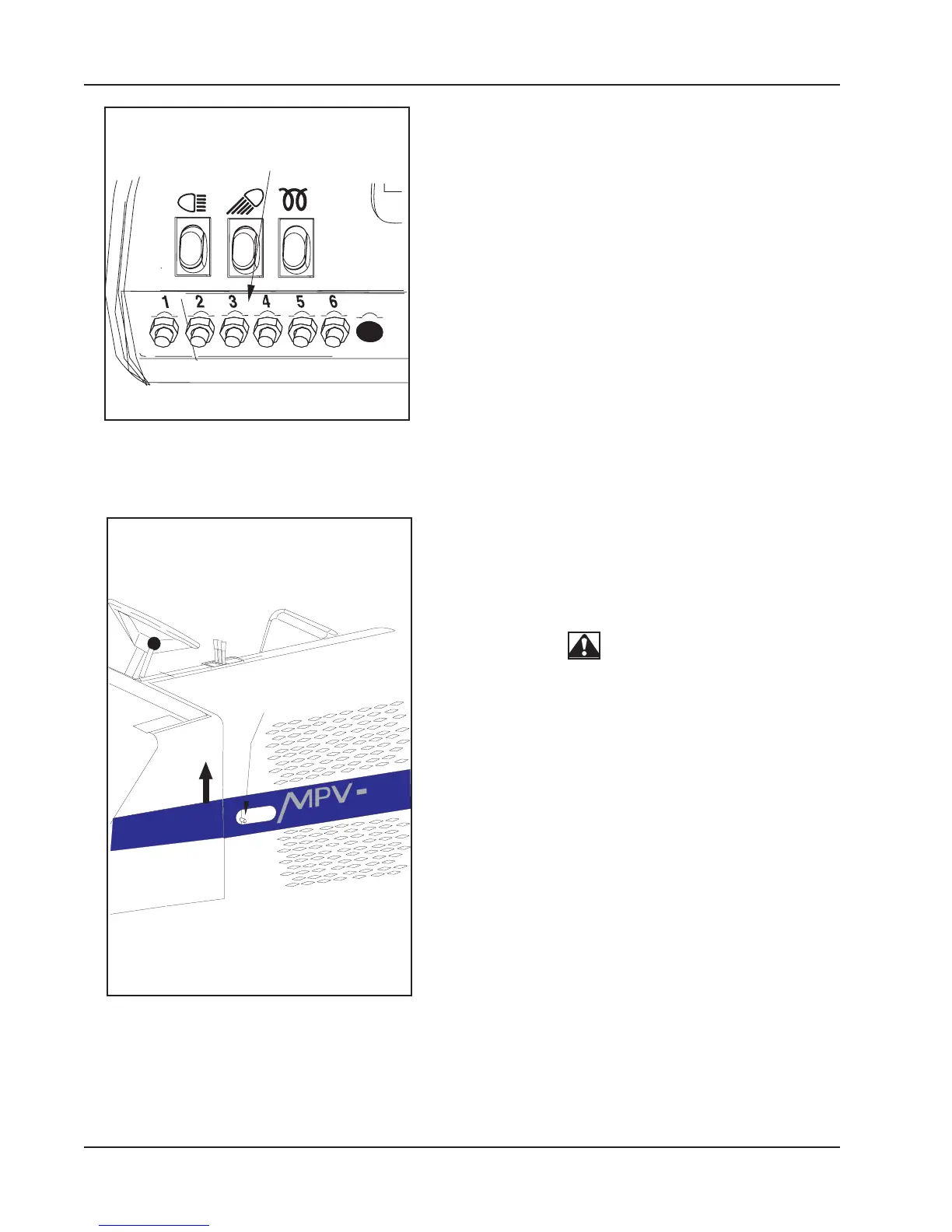

CIRCUIT BREAKERS (figure 22)
The circuit breakers are located to the left of the steering
wheel. When a circuit breaker “pops” out, this is an
indication of an electrical problem that must be corrected
before the breaker can be reset.
There can be up to eight circuit breakers in the row. They
control the following circuits, beginning with number 1 on
the left:
CB-1 = Filter shaker motors
CB-2 = Horn
CB-3 = Starter relay
CB-4 = Ignition
CB-5 = Accessory
CB-6 = Lighting
CB-7 = Options
CB-8 = Cab Options
ENGINE COMPARTMENT LATCH (figure 23)
The engine cover encloses the entire engine, radiator and
hydraulic reservoir assembly. The cover can be swung open
to allow easy access to the engine and hydraulics for
service or inspection.
WARNING
Operate Only When Lids, Doors, And Access Panels Are
Securely Closed.
To open the cover, lift the cover latch lever up. Swing the
cover open.
The cover will latch automatically when the cover is closed.
After closing the engine cover, check to be certain the latch
has fully engaged.
SWEEPER CONTROLS/INSTRUMENTS
C-0521
Ame
CIRCUIT
BREAKERS
C-0521 FIGURE 22
C-1436 FIGURE 23
60
American-Lincoln
ENGINE
COMPARTMENT
LATCH
TO
OPEN
