BRAKES
The service brakes are located on the front wheels. They are operated by the brake pedal and the parking brake
lever. Check the Brakes daily for proper operation and inspect the brake pads for wear every 100 hours of
operation.
BRAKE PEDAL ADJUSTMENT
Perform this adjustment to ensure proper pedal height and linkage operation. The brakes are properly adjusted
when the brakes hold the sweeper on an 8 degree ramp. The brakes need adjusted if the Pedal travels closer
than 1 inch to the floor of the operator’s compartment when the brakes are fully engaged.
WARNING
Hopper Could Fall And Cause Serious Injury. Always Engage Hopper Safety Arm Before Working Under Hopper.
WARNING
Always park on a level surface, chock tires and Observe Safety Procedures when adjusting the brakes
TO ADJUST THE BRAKES
When adjusting the brake clevises be sure to adjust both sides the same amount to prevent uneven braking
between the two sides. Follow these steps to adjust the brakes.
1. Empty the debris hopper.
2. Raise the hopper and engage the safety arm.
3. Stop the engine, chock the tires.
4. Remove clevis pins from both sides of the brake cross shaft.
5. Thread the clevis out to decrease brake pedal height or in to increase pedal height.
6. Adjust the brakes so the brakes hold the machine on an 8 degree ramp and the pedal travels no closer
than 1 inch from the floor.
7. Reinstall the clevis pins.
8. Start the engine, lift the hopper and lower the hopper safety arm.
9. Lower the hopper and stop the engine.
10. Remove the wheel chocks.
TENSION KNOB
PARKING
BRAKE
BRAKE PEDAL
BRAKE CROSS
SHAFT
CLEVIS PIN
PULL ROD
BRAKE
LEVER
SPRING
AXLE NU
C-0550

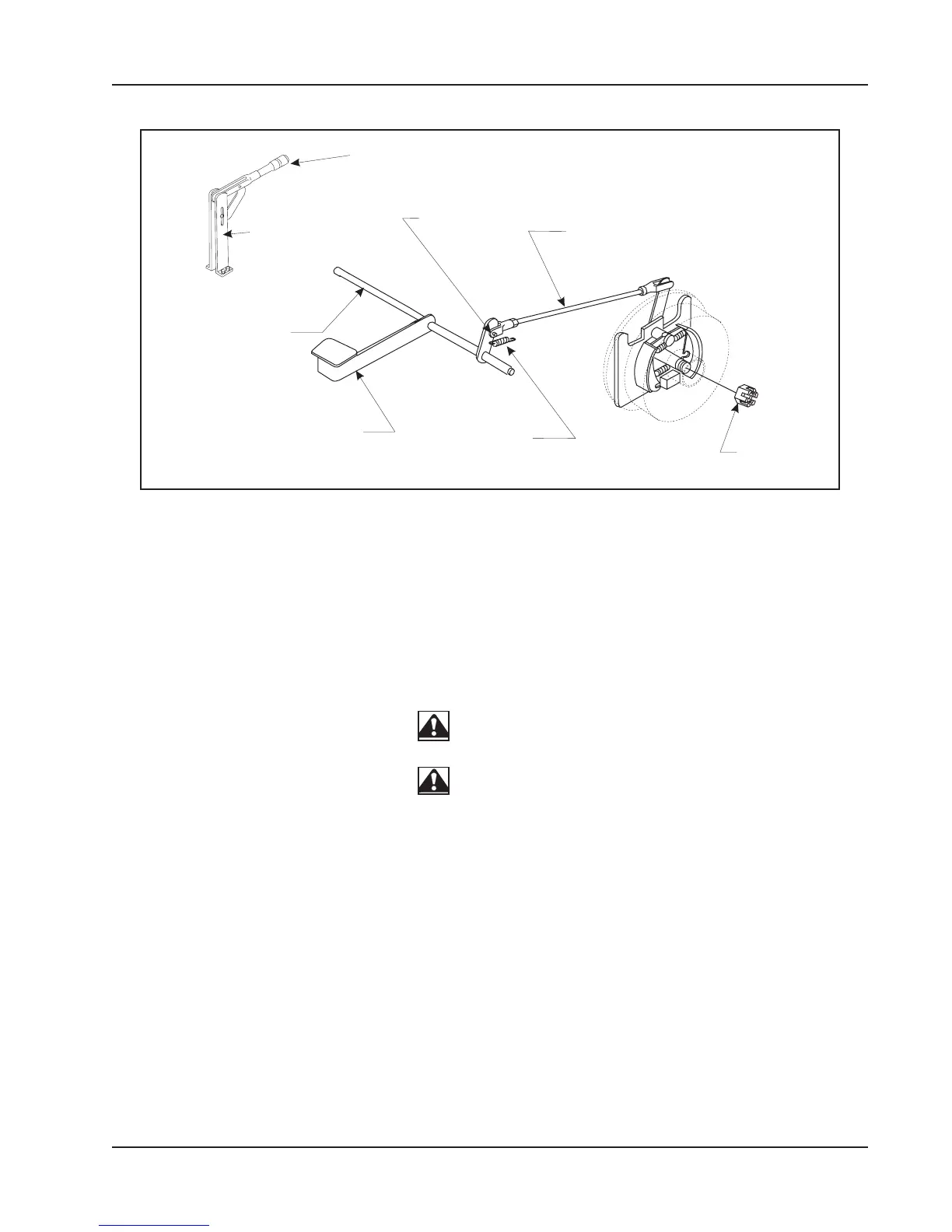

C0550 FIGURE 35
BRAKE SERVICE
