HYDRAULIC RESERVOIR LEVEL SIGHT GAUGE

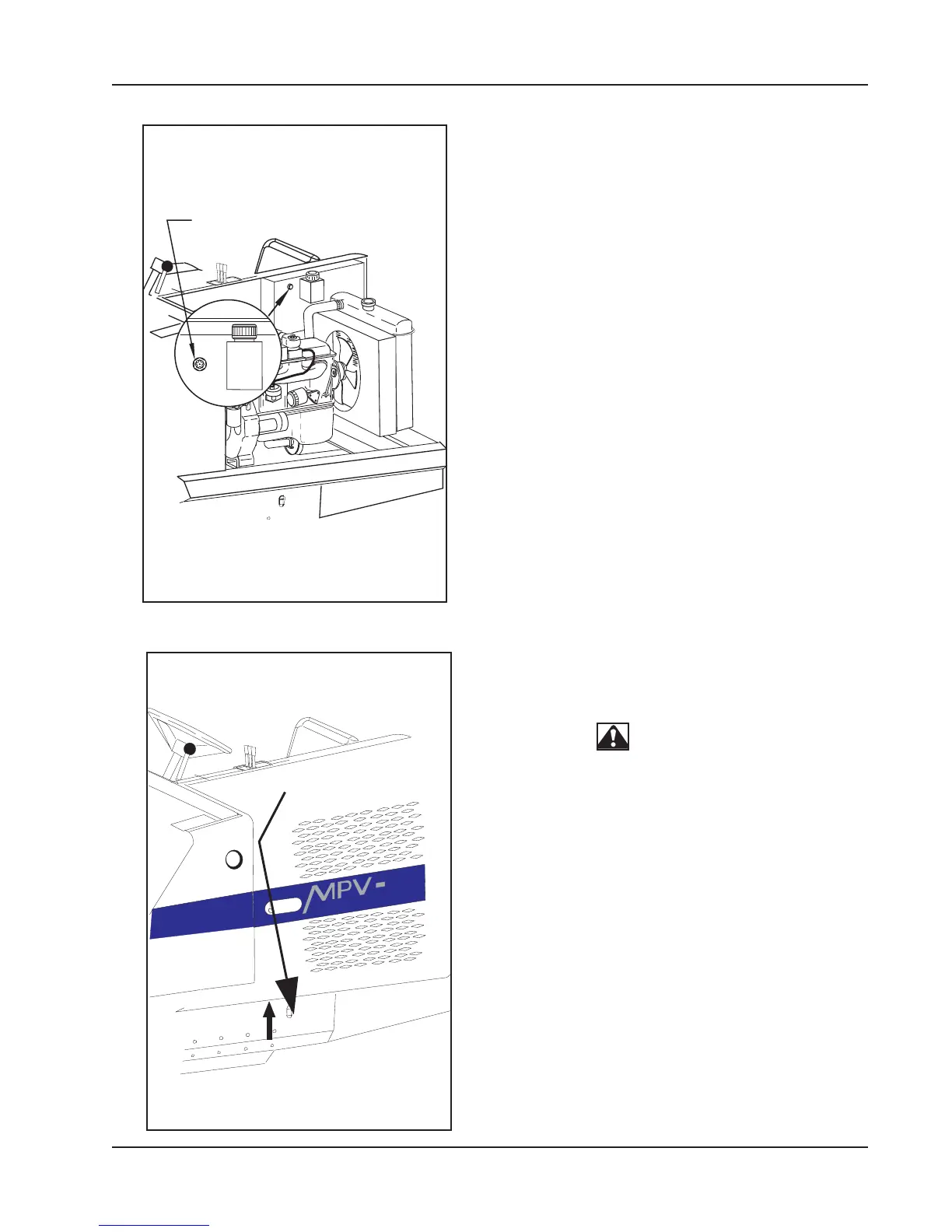

(figure 24)
The sight gauge is located on the side of the hydraulic
reservoir in the engine compartment. The sight gauge is
used to indicate the level of fluid in the reservoir. Fluid level
must be visible in the sight gauge when the hopper is in the
down position.
MAIN BROOM COMPARTMENT DOORS (figure 25)
The main broom compartment doors are located behind the
front tires on both sides of the sweeper. The doors provide
access to the main broom for service or inspection.
WARNING
Operate Only When Lids, Doors, And Access Panels Are
Securely Closed.
Open the right side door to remove or replace the main
broom. The right side door is an integral part of the main
broom drive system and must be closed for operation.
Open the left side broom door for inspection. Check the
drive hub for banding and shrink wrap which have a ten-
dency to get tangled in the broom driver.
To open the main broom door, reach inside the hole in the
door and lift up on the latch handle.
The door latch will automatically engage when the door is
closed.
SWEEPER CONTROLS/INSTRUMENTS
60
American-Lincoln
MAIN BROOM
COMPARTMENT
LATCH
TO
OPEN
HYDRAULIC RESERVOIR
LEVEL SIGHT GAUGE
C-0524
C-0524 FIGURE 24
C-1435 FIGURE 25
