SWEEPER CONTROLS/INSTRUMENTS

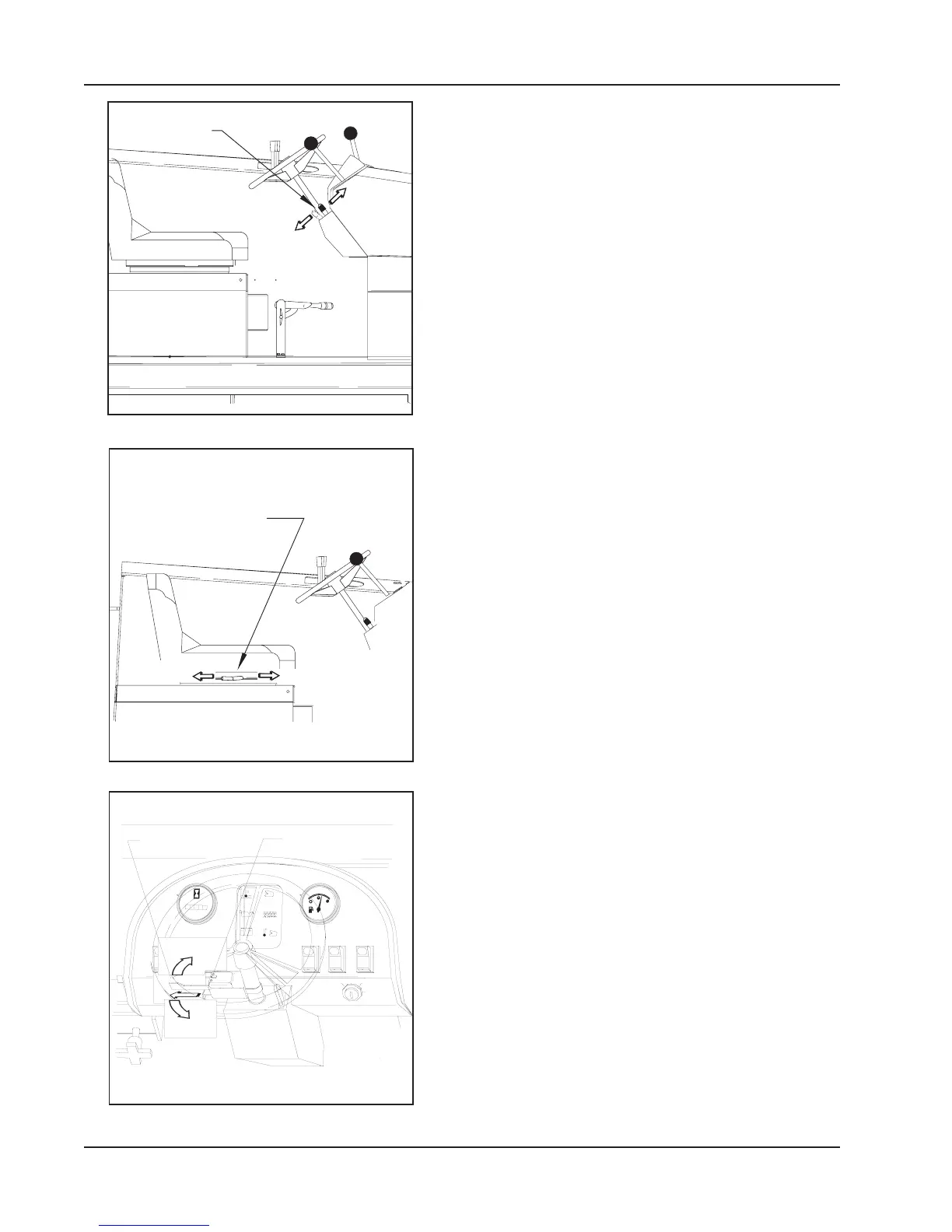

TILT STEERING LEVER (figure 10)
The tilt steering lever is located near the base of the steering
column and is spring loaded to the locked position.
To adjust the steering column tilt angle, Grasp the lever and
pull back. While holding the lever, position the steering
wheel to the desired angle, and release the lever to lock the
column in place.
SEAT POSITION ADJUSTMENT (figure 11)
The seat adjustment lever is located on the right side of the
seat base. The lever is spring loaded to the “LOCK” position.
To adjust the seat, push “FORWARD” on the lever and move
seat to desired position then release the lever to “LOCK” the
seat in place.
4-WAY TURN SIGNALS (OPTION) (figure 12)
The turn signal switch is located on the steering column and
functions the same as a typical automotive turn signal. The
operator must return the lever to the centered position after
the turn has been completed.
To signal a right hand turn move the lever to the “FOR-
WARD” position.
To signal a left hand turn position the lever to the “BACK-
WARD” position.
To use the 4-way Flashers pull out on the turn signal lever.
BACK UP ALARM (OPTION)
The backup alarm is activated by a switch in the foot pedal
and automatically emits a loud audible noise when the
machine is driven in reverse.
