DE-3000 IOI 7-17
All rights reserved © ALTRONIC, LLC 2017
15
18mA
6mA
5.0 PSIG 20.0 PSIG

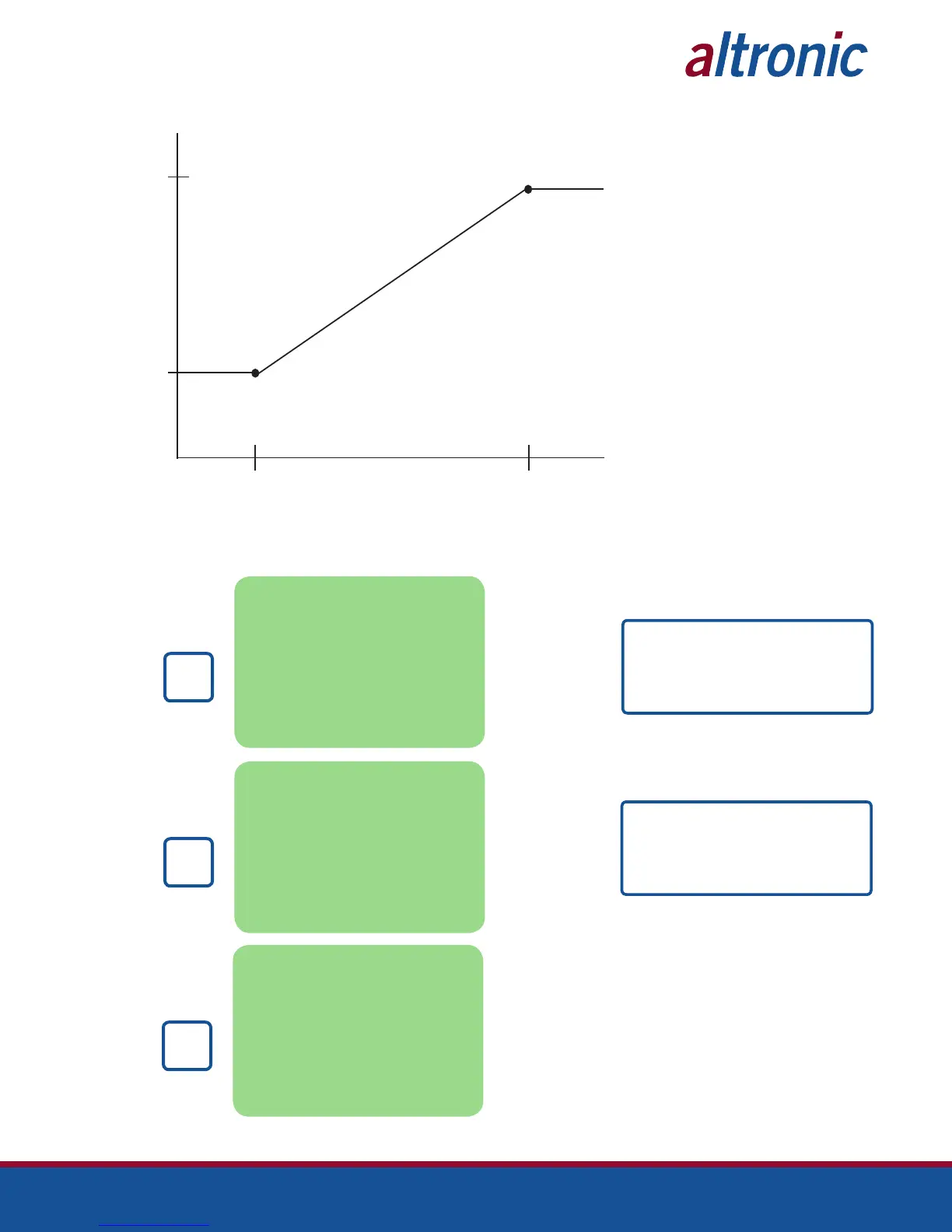

A02 (4–20mA) vs. Suction Pressure
The screens which will appear for LOOP #2, depending upon which program
options are used, are shown below.
RUNNING
CH02/A02 42.3 PSIG
SETPOINT 42.2 PSIG
P:45% I: 1s D:450m
AUTO 58%
PRESS
TWICE TO
VIEW
NEXT
OR
RUNNING
CH02/A02 1199 RPM
SETPOINT 1200 RPM
P: 45% I: 1s D:450m
AUTO 58%
PRESS
TWICE TO
VIEW
NEXT
OR
RUNNING
Calculated 1800 RPM
A02 54
Suction 13.3 PSIA
RPM 1800 RPM
PRESS
TWICE TO
VIEW
NEXT
CH02/A02 42.3 PSIG
SETPOINT 42.2 PSIG
P:45% I: 1s D:450m
AUTO 58%
CH02/A02 1199 RPM
SETPOINT 1200 RPM
P: 45% I: 1s D:450m
AUTO 58%
