B.3.4 MAIN COMPONENTS

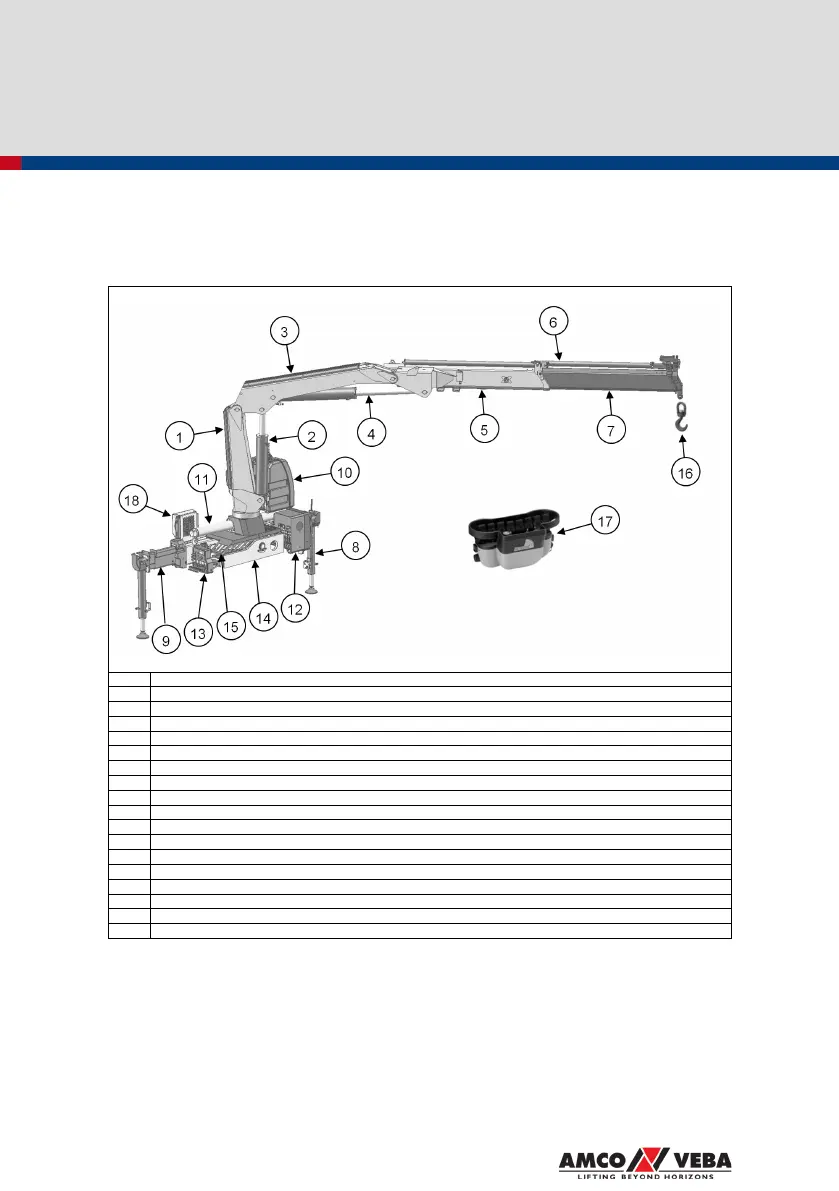

A list of the main crane components is given below in accordance with EN 12999:
MAIN COMPONENTS
1
Column
2
1
st
boom cylinder
3
1
st
boom
4
2
nd
boom cylinder
5
2
nd
boom
6
Extension cylinders
7
Hydraulic extensions
8
Stabilizer cylinder
9
Stabilizer extension
10
Oil tank
11
Slewing cylinder
12
Controls, at control valve side
13
Controls, at opposite control valve side
14
Swivel bridge
15
Base
16
Hook
17
Radio remote control (option)
18
Oil cooler (option)
