Amco Veba 817NG - Base Dimensions and Mounting Bolts

USER MANUAL
817NG
TECHNICAL SHEET
D.5
7845282-06 03/20
subject to change without notice

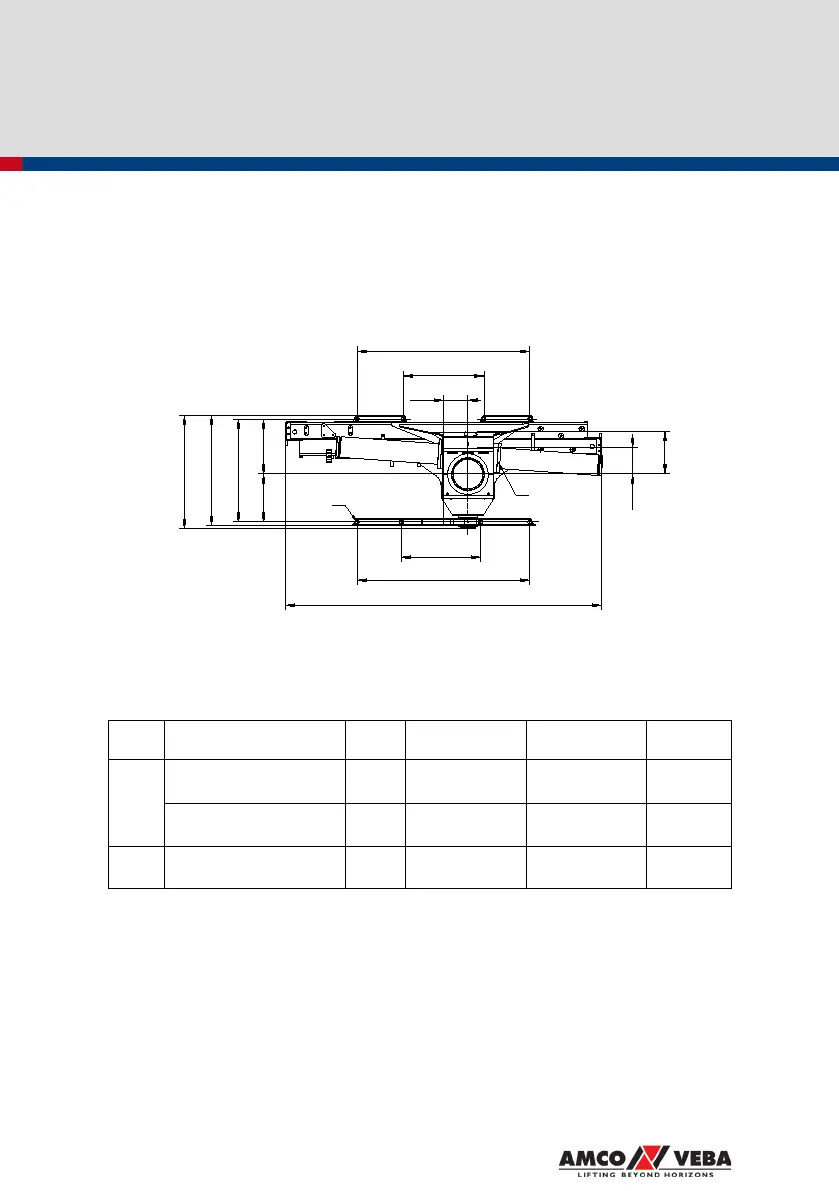

D.5 BASE DIMENSIONS AND MOUNTING BOLTS
675.5
721.5
2070
360
742
160
1128
A
B
175
281
530
1128
530
315.5
Ref. Description Q.ty
Material
Grade
Size
Tightening
torque
A
Kit with 8
crane mounting bolts
8
42CrMo4+QT
EN 10083-3
M24x2
L=1100
400 Nm
Kit with 4
crane mounting bolts
4
42CrMo4+QT
EN 10083-3
M30x2
L=600
700 Nm
B
Fixing bolts for each slewing
cylinder
8 8.8 M14x2 L=40 80 Nm
