Amco Veba 817NG - How to Rotate Upwards the Manual Turning Stabilizer Legs

USER MANUAL
817NG
USE
B.45
7845282-06 03/20
subject
to change without notice
B.7.13 HOW TO ROTATE UPWARDS THE MANUAL TURNING STABILIZER
LEGS

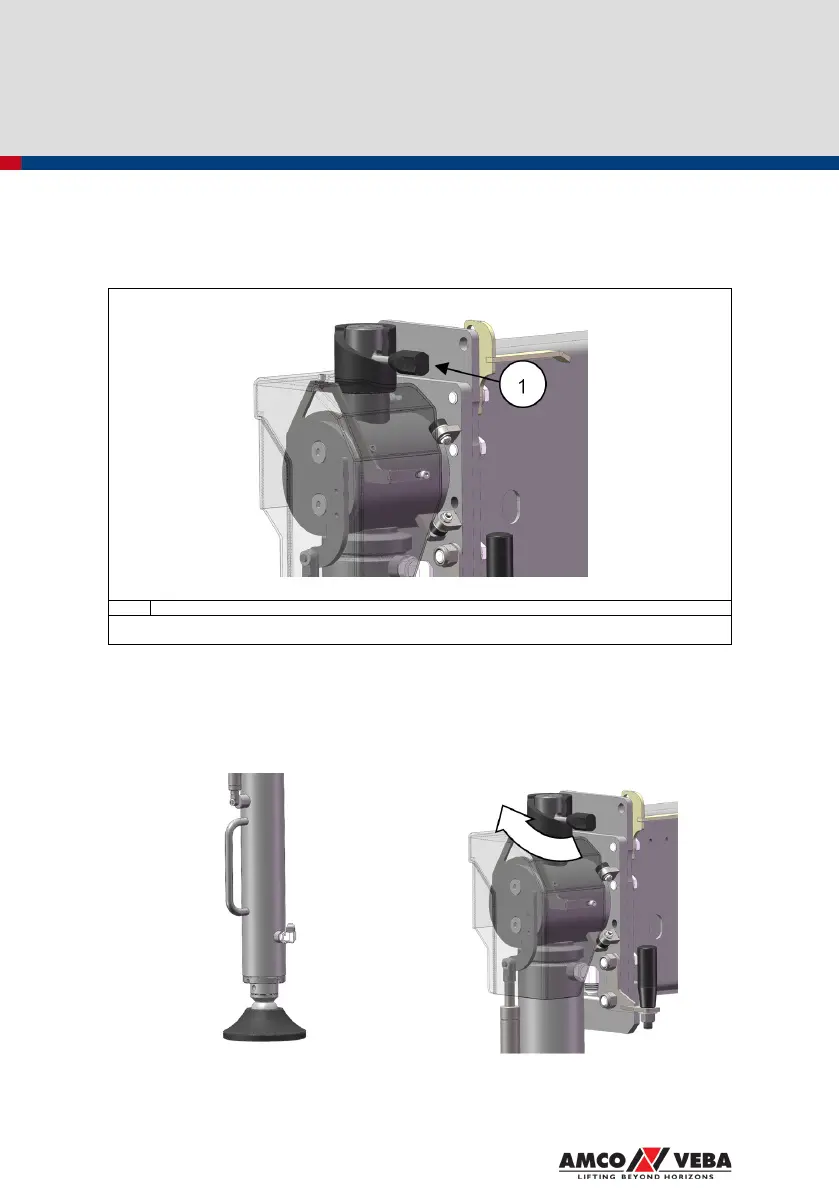

LOCKING DEVICE OF TURNING LEGS
1
Locking device with lever
Lever 1 perpendicular to extension axis (down): the locking device is engaged
Lever 1 parallel to extension axis (up): the locking device is disengaged
Execute the following procedure:
1) Grasp the handle and turn clockwise the lever (the locking device is disengaged). If the lever is
locked, shake lightly the leg till the lever can be easily operated.
