B.7.11 HOW TO FOLD THE STABILIZERS WITH MANUALLY OPERATED
EXTENSIONS

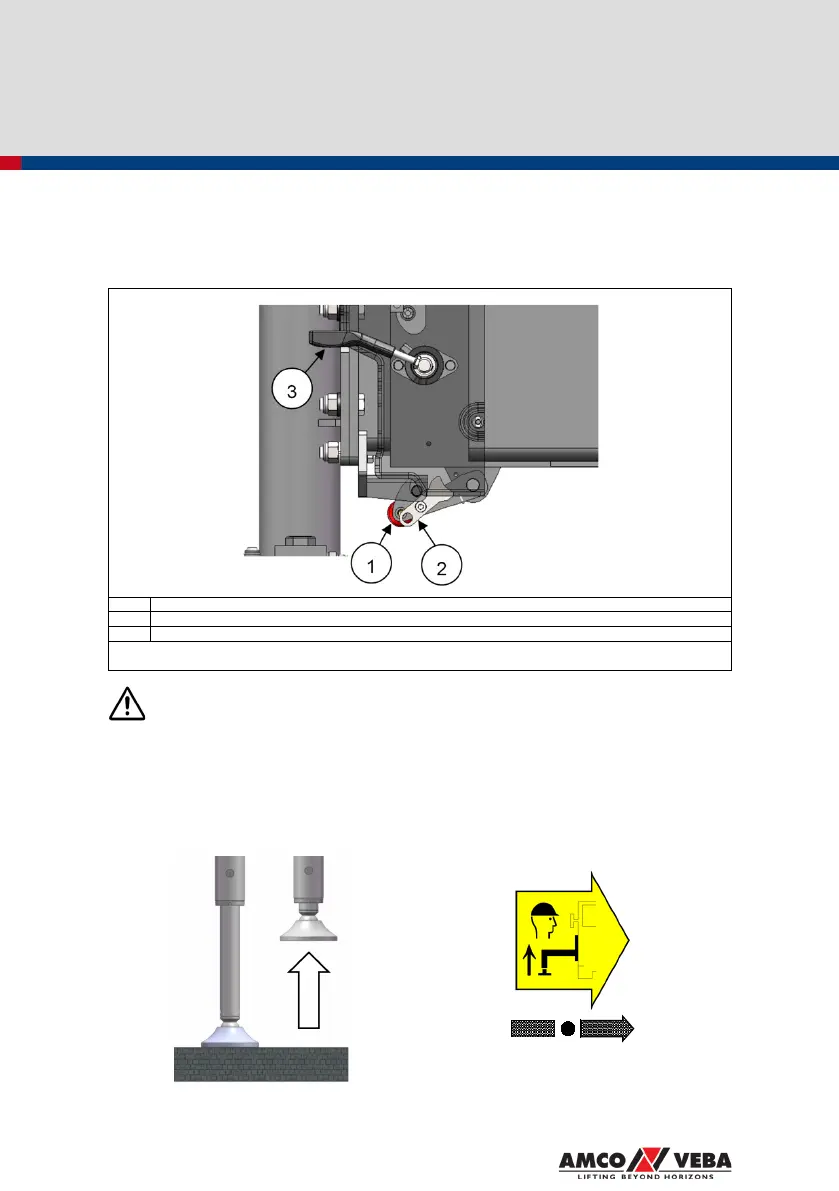

LOCKING DEVICES OF STABILIZER EXTENSIONS
Semi-automatic locking device
Lever 3 up: the locking device 1 is engaged or ready to get engaged
Lever 3 down: the locking device 1 in disengaged
The stabilizers can be closed exclusively after the booms are closed in transport position.
Always use the controls on the side on which you are operating the crane.
Execute the following procedure on the control valve side:
1) Retract fully the stabilizer leg.
