B.7.12 HOW TO FOLD THE STABILIZERS WITH HYDRAULICALLY OPERATED
EXTENSIONS

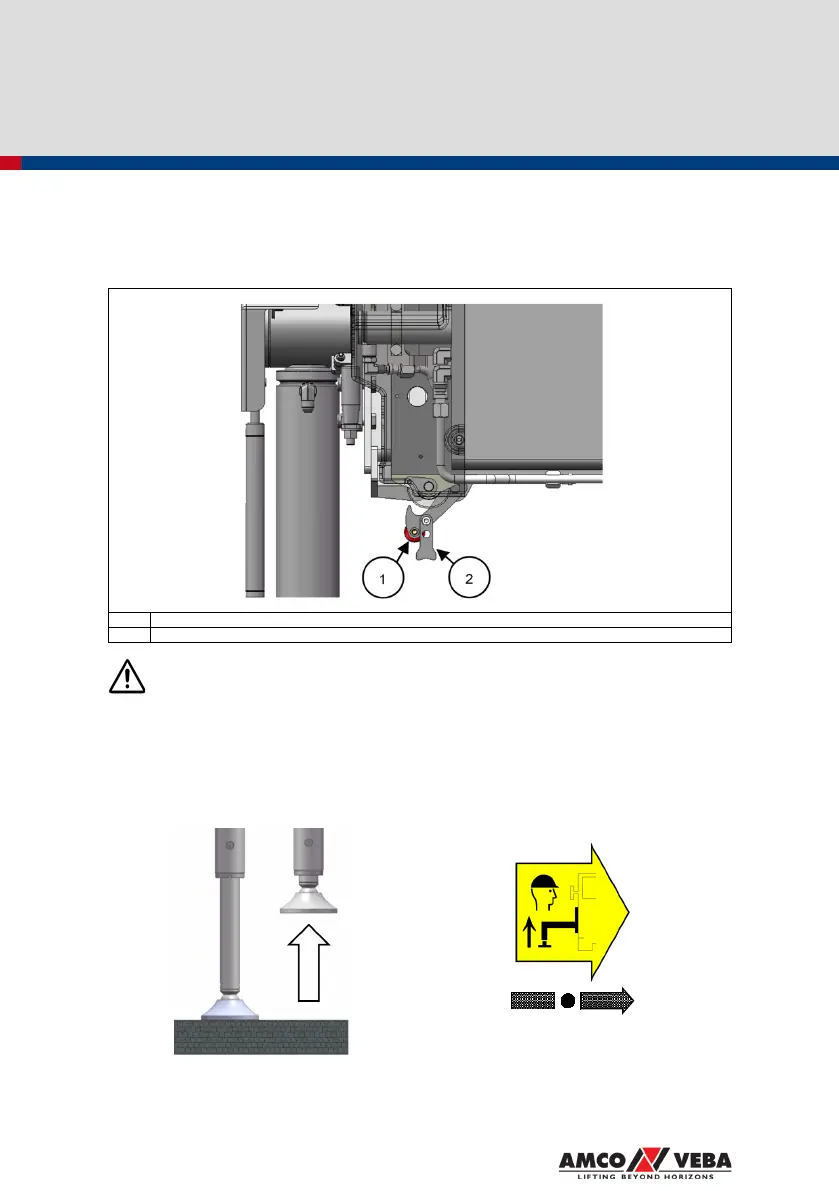

LOCKING DEVICE OF STABILIZER EXTENSIONS
1
Automatic lock
2
Lock support
The stabilizers can be closed exclusively after the booms are closed in transport position.
Always use the controls on the side on which you are operating the crane.
Execute the following procedure on the control valve side:
1) Retract fully the stabilizer leg.
2) If the crane is fitted with turning stabilizer legs, rotate the leg up to its transport position
(see B.7.13)
