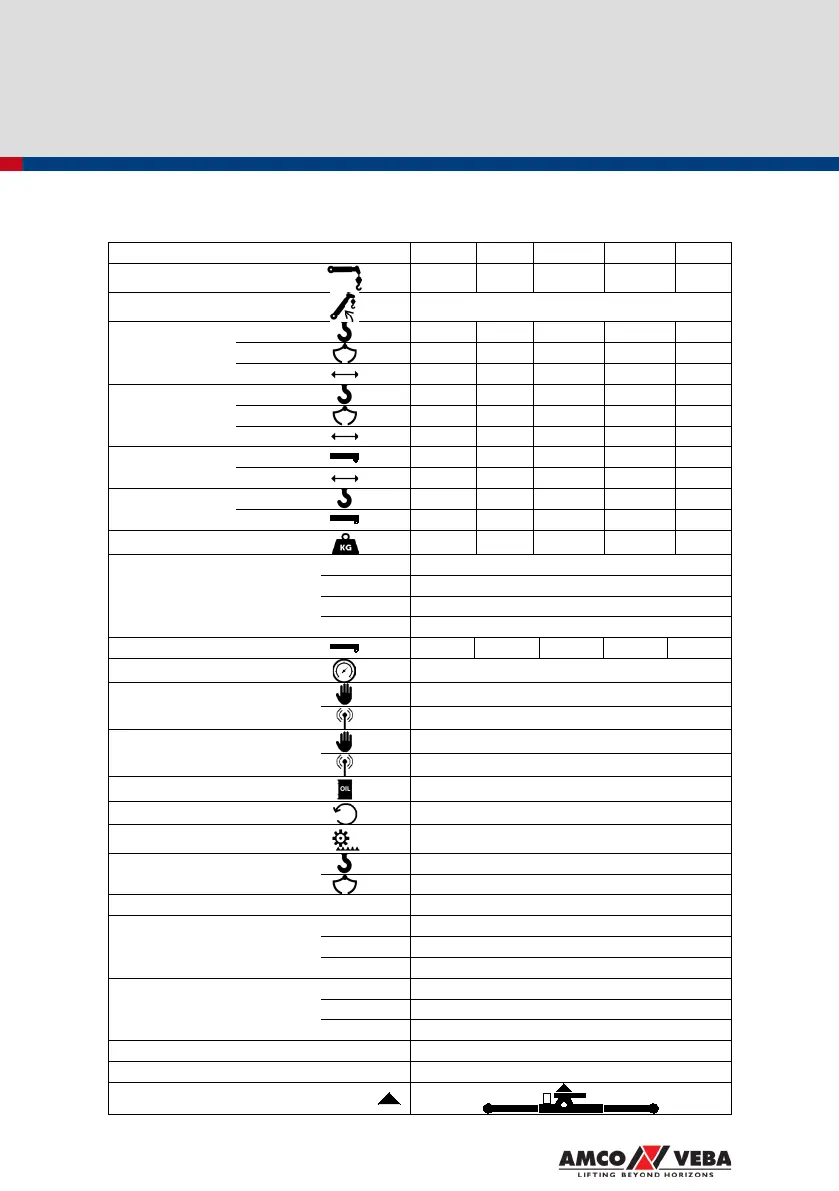

D.1 CRANE'S TECHNICAL DATA
Versions 1S 2S 3S 4S 5S
Max. net lifting moment
t m
kNm
15.8
155
15.0
147
14.6
143
14.2
139
13.7
135
Max. dynamic moment
daNm
kNm
19700
197
Capacity at min.
hydraulic outreach
Max rated capacity
hook [S2]
kg 3490 3310 3150 3005 2875
grab [S1] kg 3490 3310 3150 3005 2875
min. outreach m 4.54 4.54 4.62 4.71 4.78
Capacity at max.
hydraulic outreach
hook [S2]
kg
2475
1775
1305
980
740
grab [S1] kg 2475 1775 1305 980 740
max.outreach
m
6.34
8.14
10.20
12.27
14.39
Capacity of 1st man.
extension
capacity kg N/A 1305 980 740 535
max.outreach m N/A 10.36 12.34 14.39 16.49
Max. load height
above the base for
the last extension
hydraulic m 8.6 10.3 12.3 14.3 16.4
manual m N/A 16.4 18.4 18.4 18.4
Weight of crane without stabilizers kg 1525 1660 1775 1880 1970
Weight of stabilizers
ST-M kg 250
EX-M kg 340
EX-H
kg
375
SE-H kg 410
Weight of 1st man. extension kg N/A 69 60 43 38
Max. working pressure bar 280
Max. oil flow rate
ℓ/min 40
ℓ/min 60
Max. power needed
kW 24.3
kW 36.4
Oil tank capacity ℓ 130
Slewing angle ° 425
Gross slewing torque
daNm
kNm
2170
21.7
Max. base inclination
° 4°
°
3°
Max boom inclination for use with CE winch ° 75°
Max. stabilizer force
on the ground
with stabilizers fully extended
ST daN 10090
EX daN 7720
SE daN 6250
Max. stabilizer pressure
on the ground
with stabilizers fully extended
ST
MPa
3.96
EX MPa 3.03
SE MPa 2.46
Lifting coversion factor, k kgm/bar 64.85
Distribution factor of dyn. moment on base, β - 0.70
Position of standard dead point
(see D.6)
