B.6 GAUGES AND INDICATORS

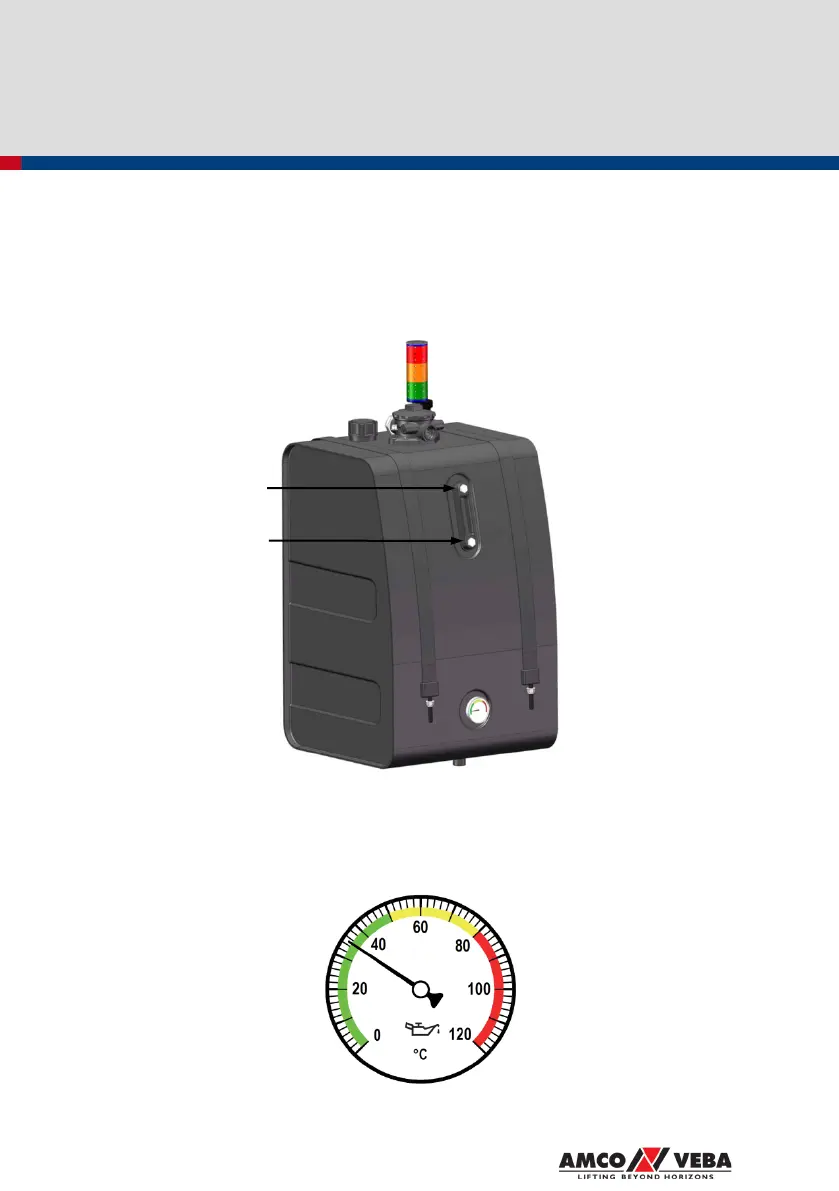

B.6.1 GAUGES ON OIL TANK
OIL LEVEL INDICATORS
The oil tank is fitted with two visual level indicators in order to check the amount of oil in the tank.
THERMOMETER
CE cranes are fitted with a thermometer that shows the current oil temperature in degrees Celsius:
• Yellow sector (T > 50°C): it is dangerous to touch hydraulic elements due to high temperature.
• Red sector (T > 80°C): the user must suspend work until the temperature falls below 80°C.
Maximum level
Minimum level
