USER MANUAL
817NG
USE
to change without notice

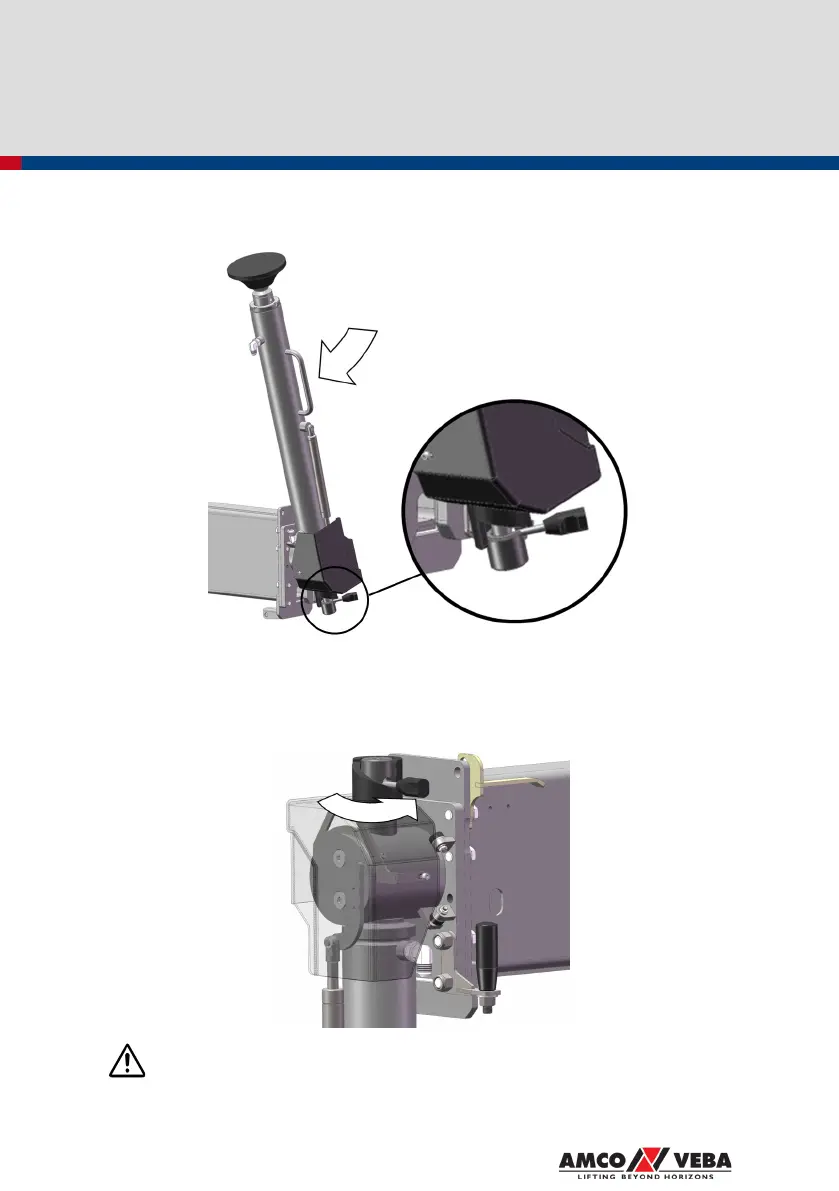

2) Rotate slightly the leg, holding the locking device 1 in disengaged state.
3) Then release the locking lever and rotate fully the leg downwards up to the vertical position: the
locking device engages automatically (the lever turns clockwise and goes down). If the locking
device doesn't engage, shake lightly the leg. Now the stabilizer leg is locked.
Before opening the stabilizer cylinder, be sure the locking lever is fully engaged and the
stabilizer leg is locked correctly.
