USER MANUAL
817NG
USE
to change without notice

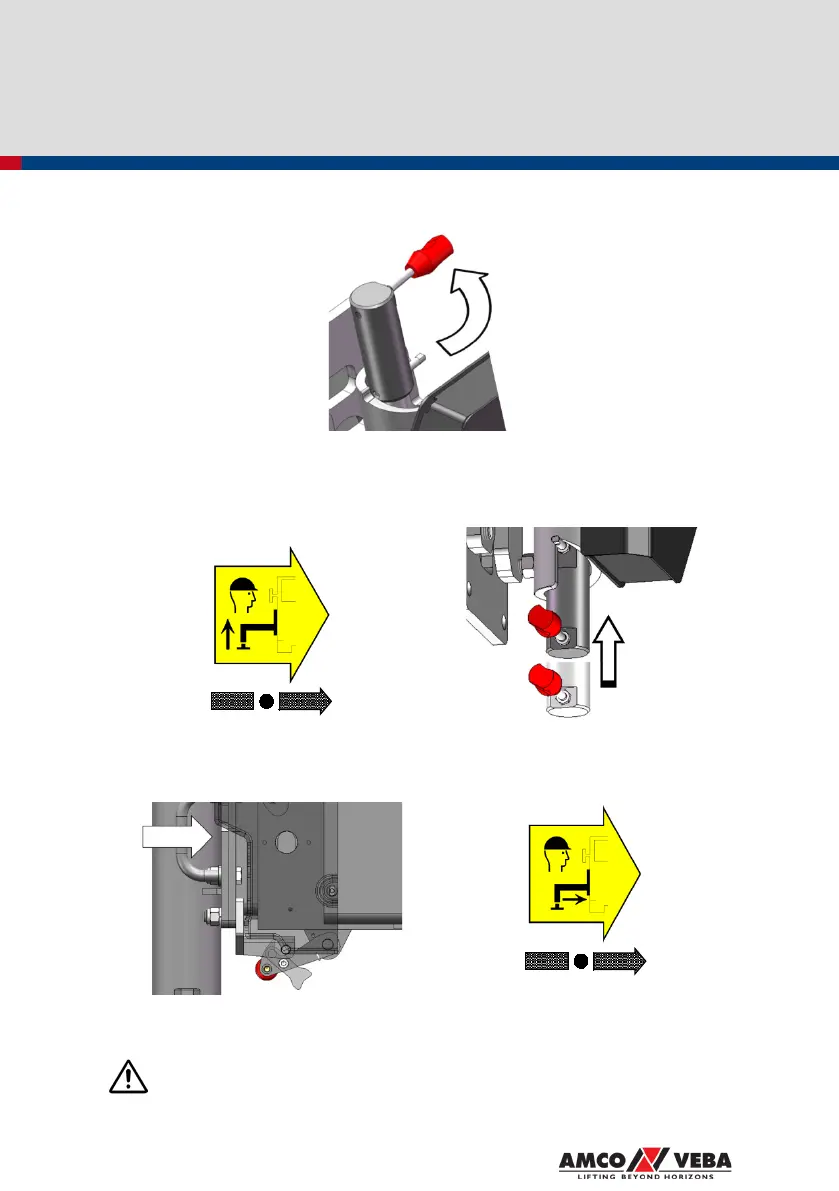

4) Then release the pin by rotating the lever clockwise completely.
5) Fully rotate the leg upwards to the vertical position: the locking device engages automatically (the
pin guide reaches the locked position). If the locking device is not engaged, shake lightly the leg until
you obtain the engagement.
6) Fully retract the stabilizer extension. The automatic lock 1 engages automatically.
7) Execute the same procedure at opposite control valve side.
Before leaving the stabilizer cylinder, be sure the locking pin is fully engaged and the
stabilizer leg is locked correctly.
