AMETEK CTS Quick start guide - Conducted
1.00 13 / 50
Important for operation
Connect the delivered Safety Circuit Terminal SCT
or the optional Safety
Circuit Adapter SCC AD to the SYSLINK plug.
The generator does not start any test if the safety circuit is not connected and closed.
NOTE: The short circuit is already short-circuited at the delivered Safety circuit terminal
SCT and Safety Circuit Adapter SCC AD
.

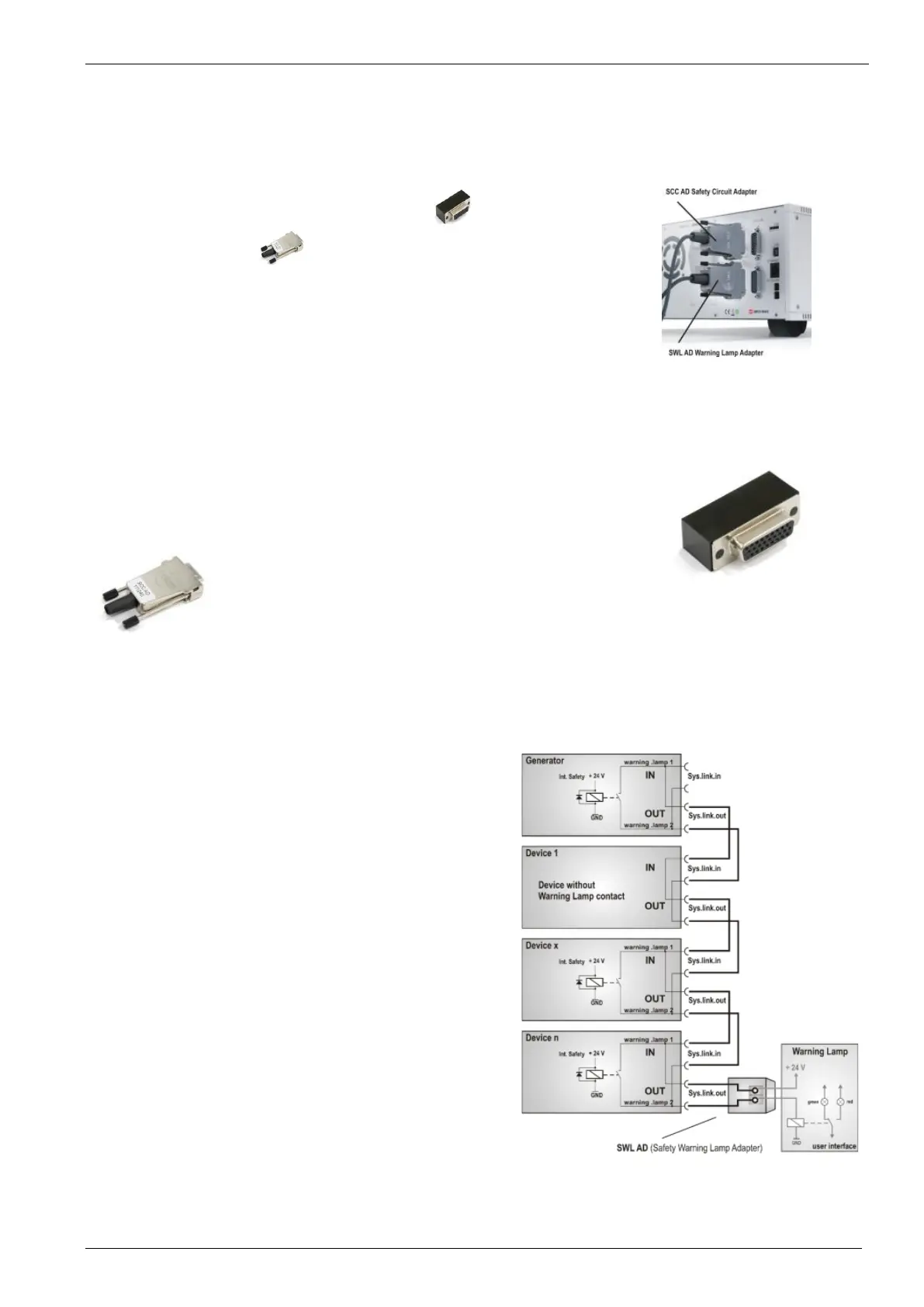

Figure 12 - Safety and
Warning Lamp
Connectors
SCT Safety Circuit termination
The safety circuit terminal SCT is part of the delivery and includes the short circuit for the
safety circuit. If an external safety circuit is required, please order the optional Safety
Circuit Adapter SCC AD.
Figure 13 - SCC AD option for external safety circuit loop
Figure 14 - Safety
Termination
3.2. Warning lamp
3.2.1. Warning lamp for compact NX and NSG 3000A series
The warning lamp offers a voltage free contact that indicates the
status of the generator system.
Design
Each device with warning lamp function can short thewarning
lamp contact. An external powered relays max. 60 V / 2 A is
controlling the lamp. The user is responsible for the warning lamp
power supply
Warning Lamp switch closed (red):
- Safety circuit is closed and TEST ON is on
Status: RED Lamp, Power on EUT output,
High voltage can be “switched ON”
Warning Lamp switch opened (green):
- Safety circuit is open and / or TEST ON is off
- Generator is switched off
Status: GREEN Lamp, no danger, High voltage is off
Figure 15 - Warning Lamp Connection
