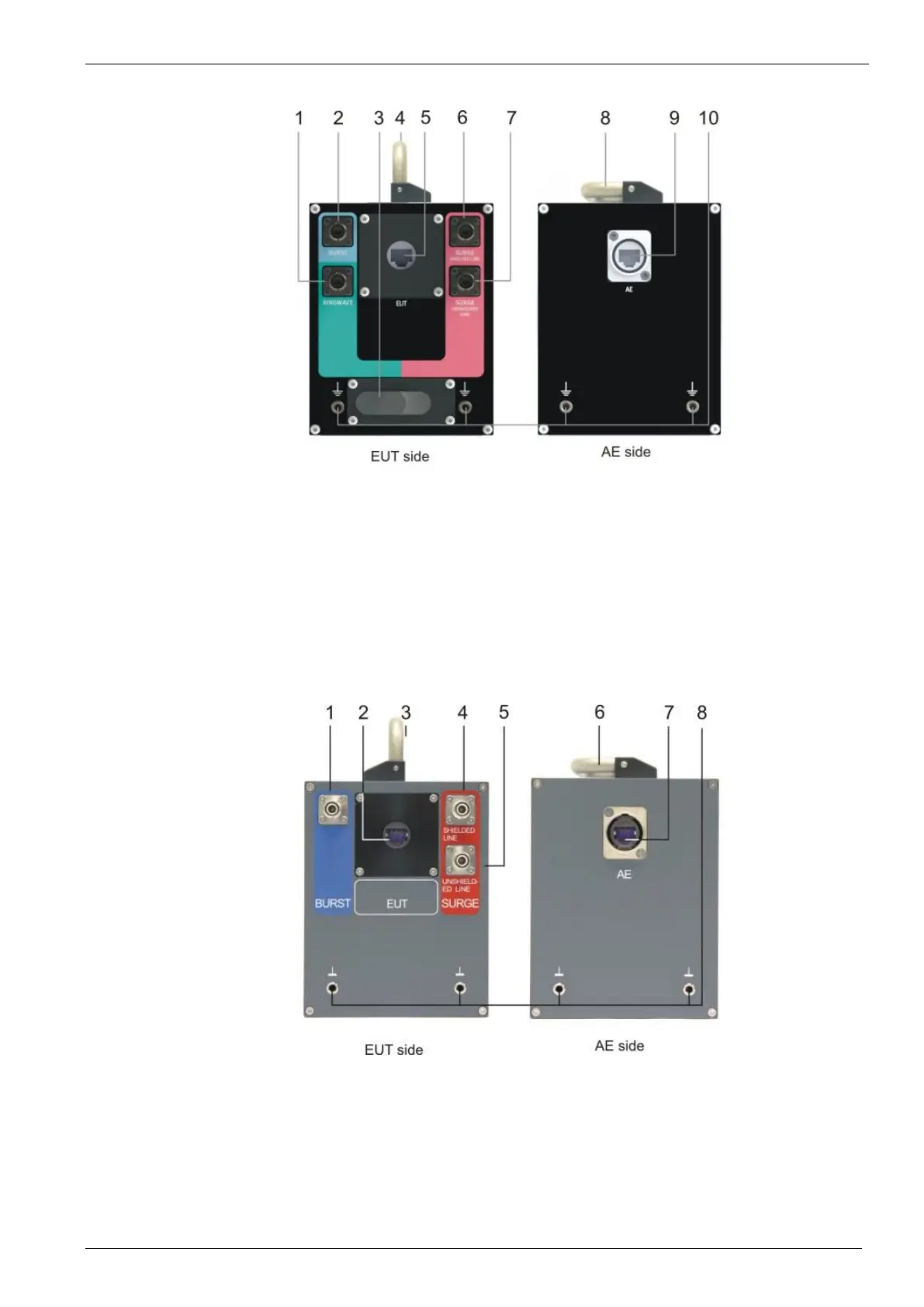

11.4. Front and rear view HSC 4-8
1 Ring Wave / SDOW input from Generator
2 Burst input from Burst Generator
3 Switch Ring Wave / Surge
4 Handle open position
5 Output to EUT Port
6 Surge input from Surge Generator to shield
7 Surge input from Surge Generator to lines
8 Handle closed position
9 Output to RJ45 AE Port
10 Earth plugs
11.5. Front and rear view CNI 508N2
1 Burst input from Burst Generator
2 Output to EUT Port
3 Handle open position
4 Surge input from Surge Generator to shield
5 Surge input from Surge Generator to lines
6 Handle closed position
7 Output to RJ45 AE Port
8 Earth plugs
11.6. Front and rear view SPN 508N1
