Ametek EM TEST compact NX User Manual

AMETEK CTS Quick start guide - Conducted
1.00 37 / 50

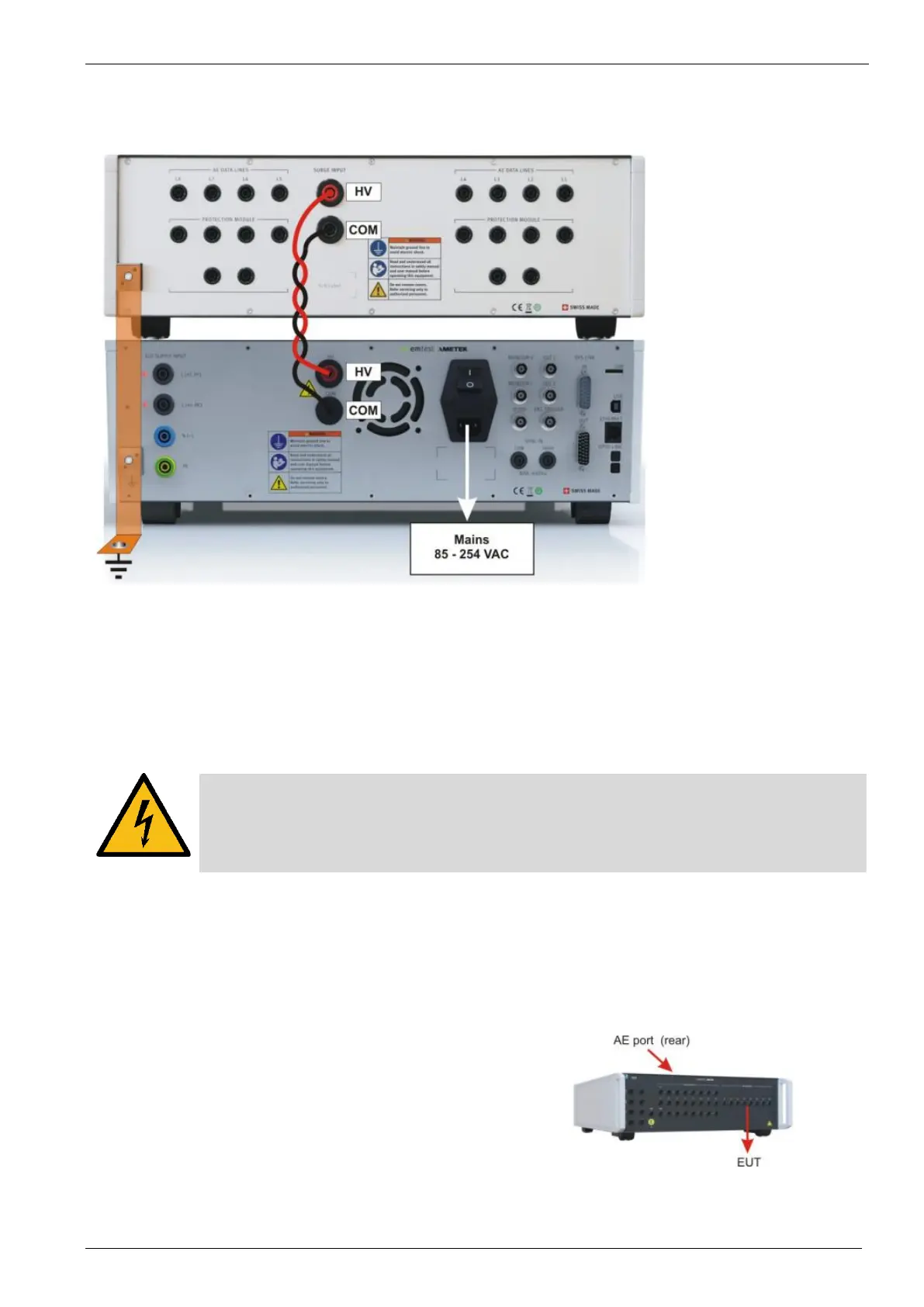

9. Quick start guide DCD sr- and st-series
9.1. Test Setup for DCD application
Figure 42 - DCD Use
DCD
coupling / decoupling
network
Impulse generator
Earth connections
Earthcable: Low inductance and low ohmic connection ex. Use a copper tresse or a flat copperband.
Connection: Connect the earth bolt of the DCD, compaxt NX generator and ground reference together
Depending on the application, the sequence of the earth connection DCD - generator - reference earth can be changed as
required.
WARNING
The device earth bolt must be connected to the ground reference plane, if there is one. In other case user is
responsible that the generator earth bolt is proper connected with the building earth.
Connection HV – COM (impulse cable generator – DCD)
Twisted cable (HV and COM)
HV-cable red: HV generator - HV DCD coupling / decoupling network
HV-cable black: COM generator - COM DCD coupling / decoupling network
Dataline connection
- Input from AE port on rear side
- Output to EUT on frontside
Figure 43 - DCD Connection
