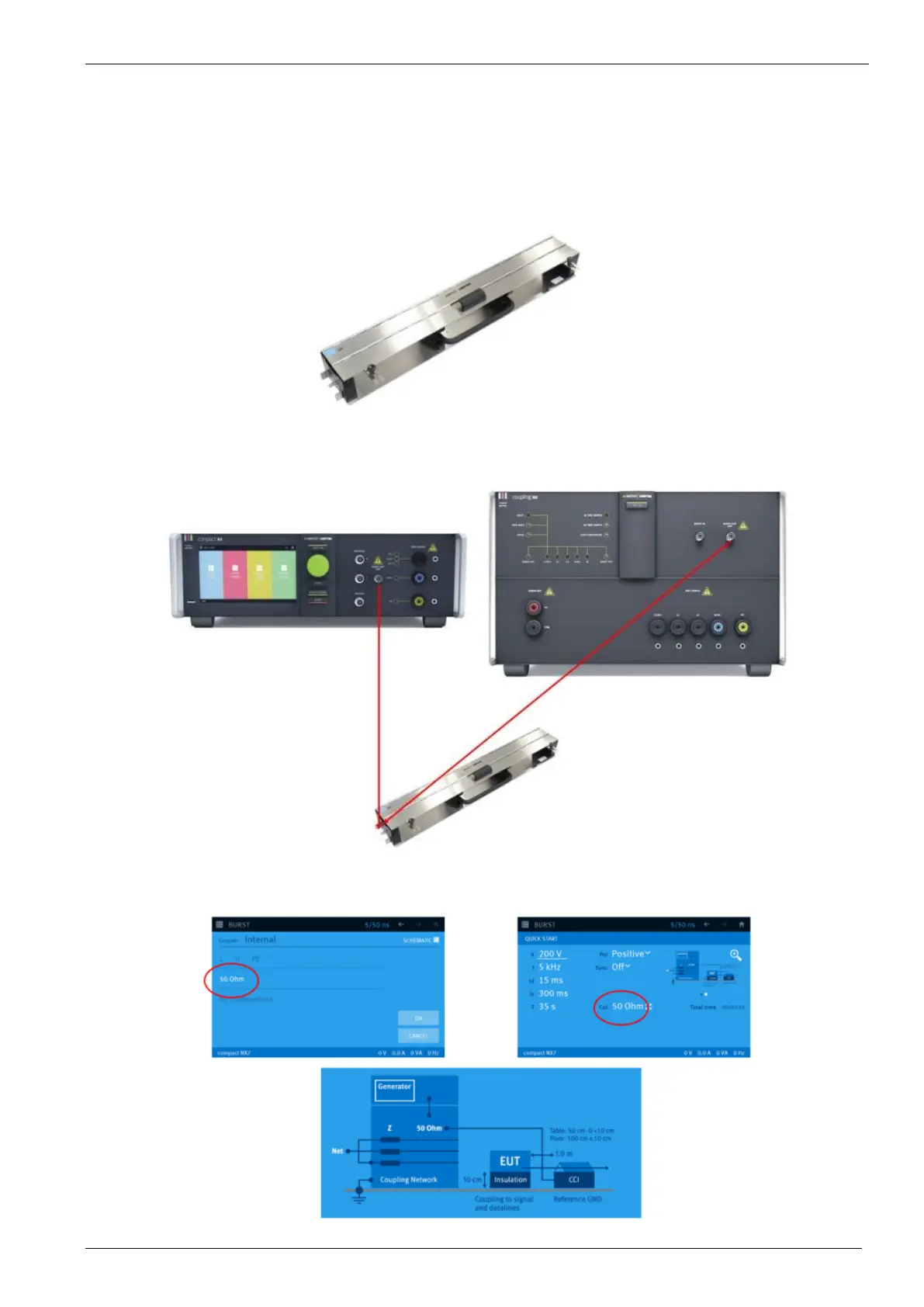

10. Quick start guide capacitive coupling clamp CCI
The CCI is used to couple EFT/burst pulses to I/O lines as required in different European and international standards for
immunity testing. The coupling of the Electrical Fast Transients EFT/burst to signal lines can usually not be achieved by
discrete capacitive coupling without interfering with the signal flow. It is often impossible to contact the required circuit (direct),
e. g. coaxial or shielded cables.
In this case the coupling is realized by the capacitive coupling clamp. The interference simulator can be connected on both
sides of the coupling clamp.
Normally the clamp is connected directly to the coaxial output of the generator (50 Ohm output), but it also can be connected and
controlled via the external coupling network.
Figure 58 - CCI Connection
To activate the coupling via the coupling clamp, the appropriate coupling must be selected on the generator.
Figure 59 - Generation Settings for CCI
