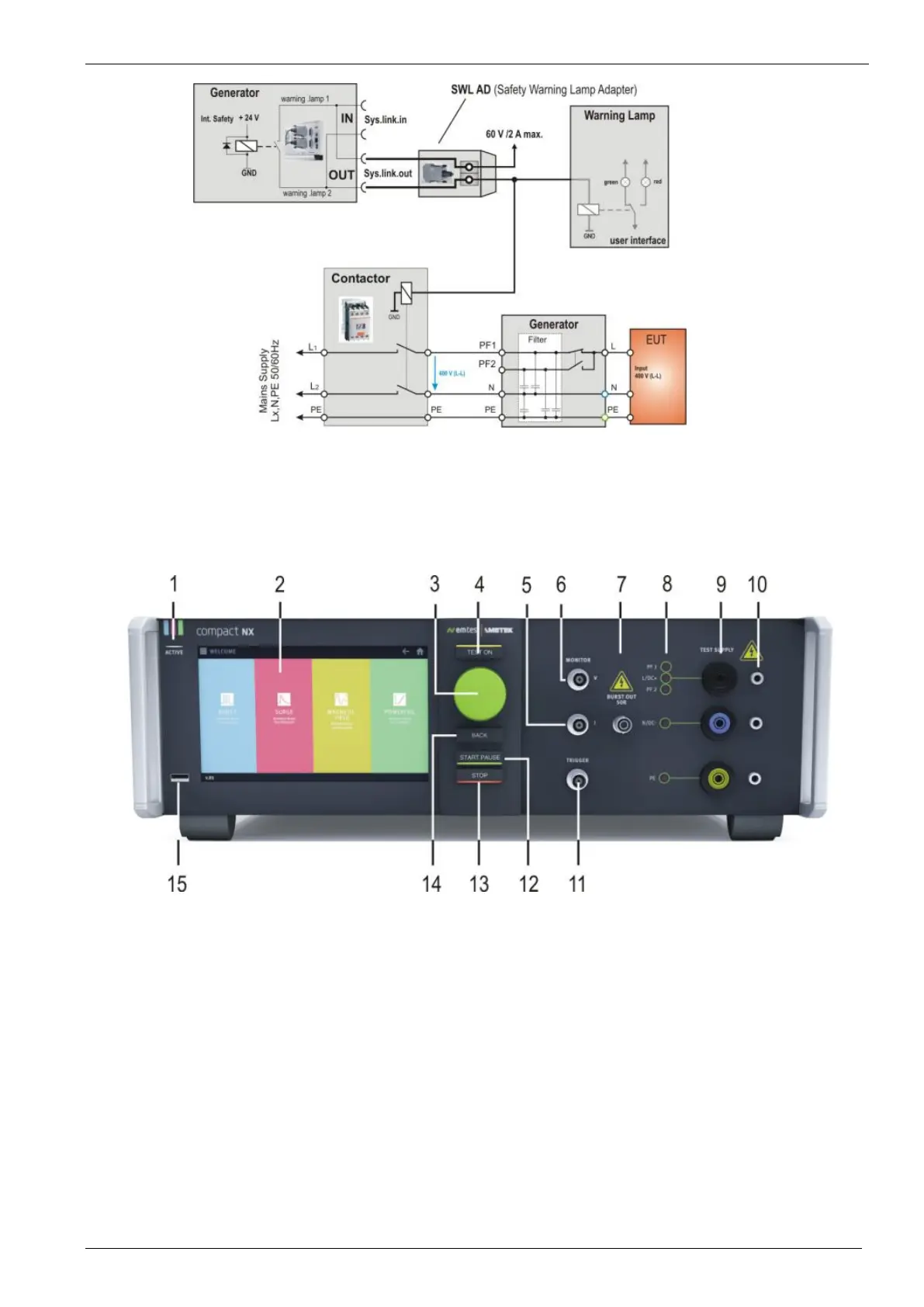

Figure 25 - Line-to-Line (400V) Operation
EUT power setup for a test device powered with 400 V line to line
6.7. Front view (model-specific distinctions)
Figure 26 - Operating Elements
1 Active indication
2 Touch screen
3 Knob (Inc. / Dec /Enter)
4 " Test On"
5 CRO I (surge)
6 CRO V (surge)
7 HV pulse Burst output 50 Ω
8 Coupling (Power, Burst, Surge)
9 EUT test supply
10 Ground reference (calibration)
11 CRO Trigger output ↑ 5V
12 Start / Pause
13 Stop
14 Back
15 USB input (Memory stick)
