AMETEK CTS Quick start guide - Conducted

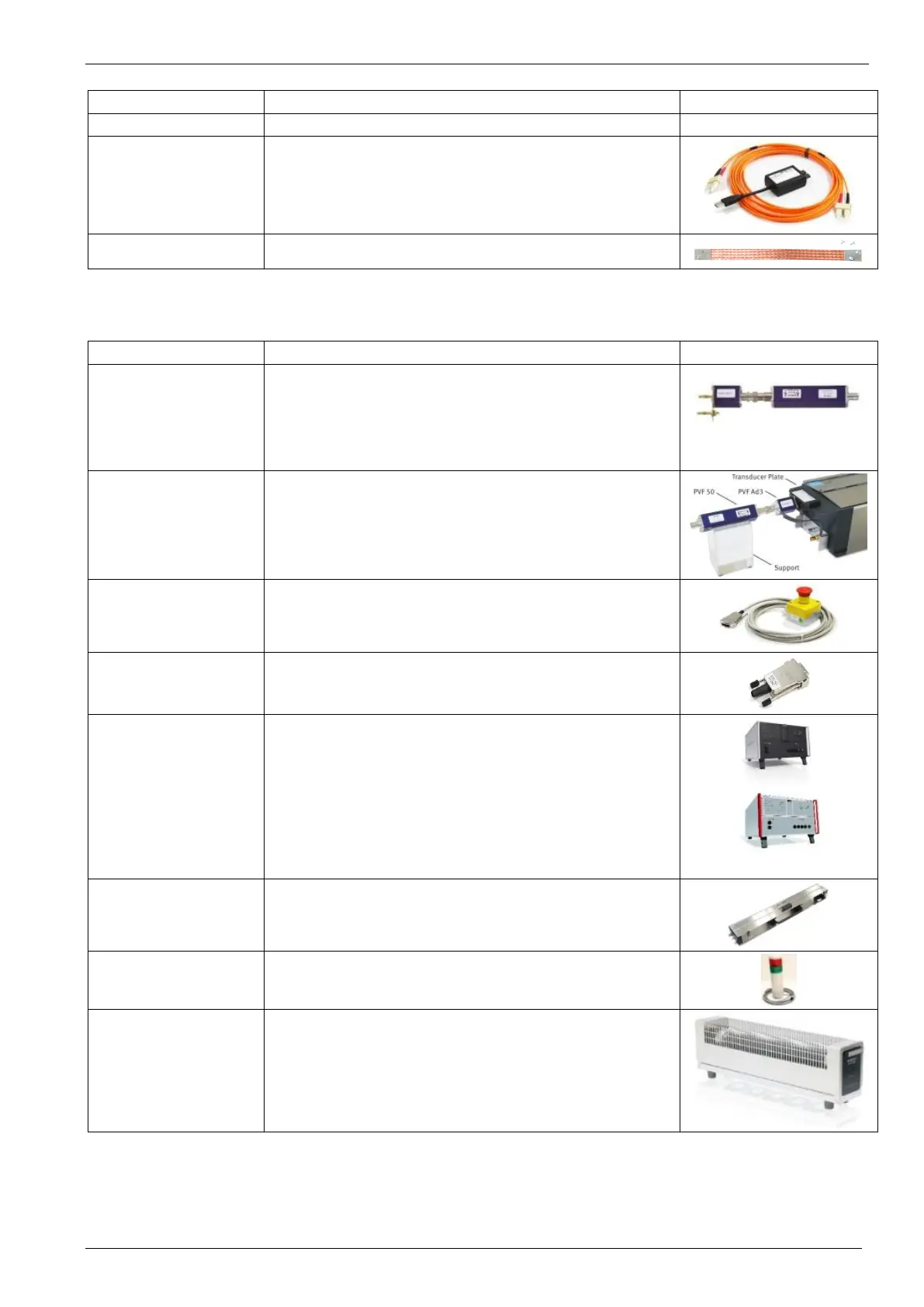

1.00 19 / 50
Name
Remark
SLC xxx
Sys Link Cable with various cable length
UOC
#111311
USB Optolink Converter (USB to LWL)
Optical Fiber cable, 5m
Remark:
The USB Optolink is included in the software license
Copper braid
Earth band connection NX-generator to coupling NX,
Dimension: 300 x 23 mm, 25mm
2
, 4 x Screws M4 x 10mm
6.1.2. Options
Name
Remark
PVF BKIT 1
Pulse Verification Fast Burst Kit 1
PVF 50, Pulse Verification Fast 50 Ohm
PVF 1000, Pulse Verification Fast 1000 Ohm
PVF AD 1 Pulse Verification Fast Adapter 1 –
Multi Contact (MC) to SHV fix
PVF AD1 PVF 50 or
PVF 1000
CCI PVKIT 1
Industrial Capacitive Coupling Clamp
Pulse Verification Kit 1
Transducer plate
Support
PVF AD3 Pulse Verification Fast Adapter 3 – MC to SHV
ESS 1
#111607
ESS 1 Interlock for compact NX5 system
Switches OFF High voltage and EUT power supply
SCC AD
#111240
Safety Circuit Adapter (Sys. Link)
Short circuit for Interlock for external safety loop
Alternative to: SCT Safety Circuit Terminator
coupling NX /
CDN 30x3A
External 3-phase coupling network
coupling NX:
AC voltage: 3 x 400 V / 690 V
DC voltage: up to 1000 VDC
Current: 16 A up to 200 A CA and or DC
CDN 30x3A:
AC voltage: 3 x 480 V
DC voltage: up to 500 VDC
Current: 16 A up to 100 A AC and or DC
CCI
Capacitive Coupling Clamp Industrial
For coupling of Burst impulses to signal and data-lines.
BCC 1000 Burst connection cable SHV 1000 mm
SWL
#111594
Safety Warning Lamp
Safety warning lamp for NX series
SVP CL 100
Calibration load resistor for power fail generators
Low inductive 100 Ohm carbon load resistor
