AMETEK CTS Quick start guide - Conducted
1.00 36 / 50
8.7. Operation with external CDN or generator internal CDN
The coupling network of the coupling NX is operated and controlled via the compact NX generator. After power on, the compact NX
generator scans the system for searching all devices.

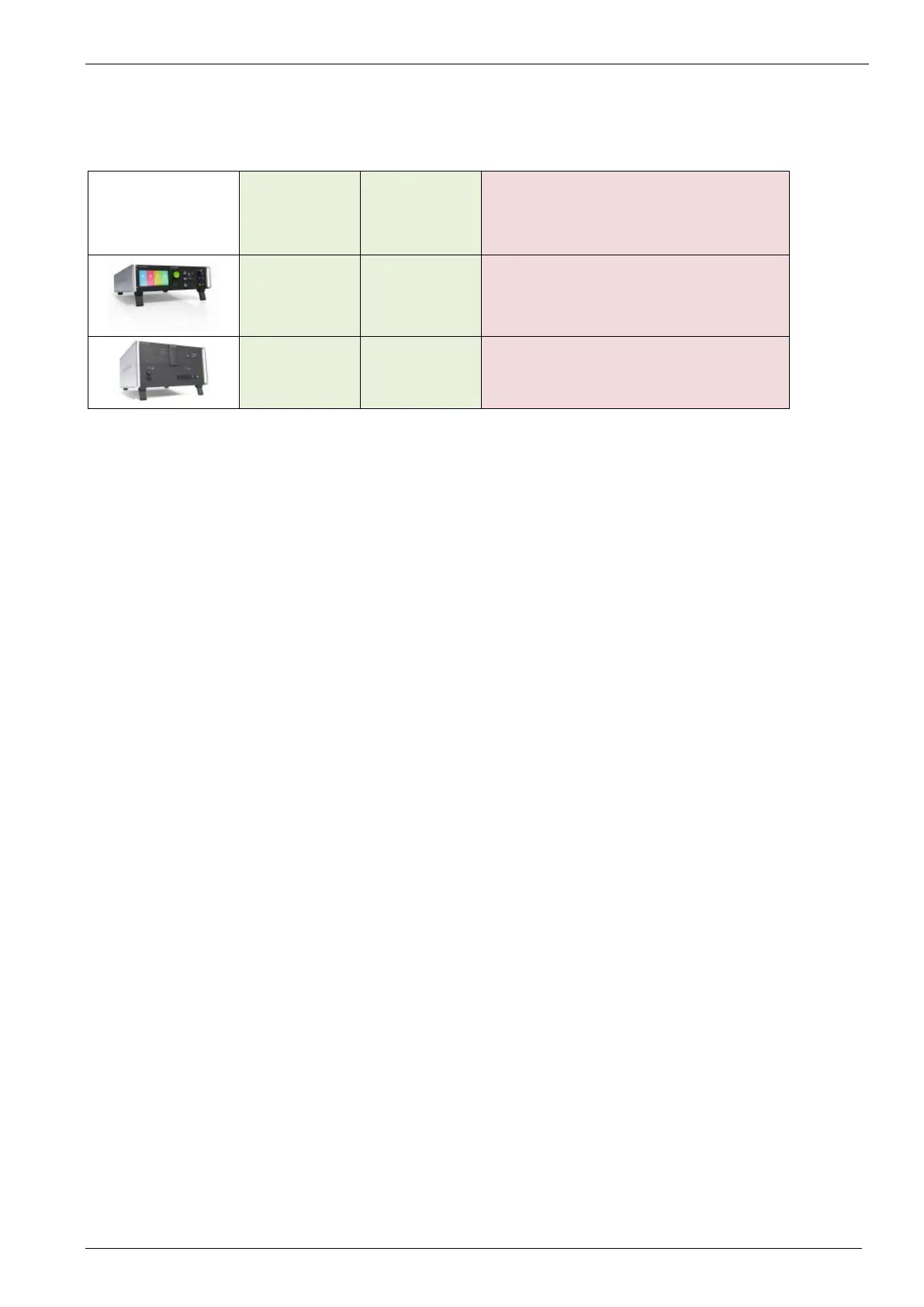

Power ON procedure
Result power on
OK
OK
NOGO
generator cannot find the coupling NX,
switch
compact NX generator
same time second first
same time first second
The test generator realizes that a three phase coupler is connected and shows the possible coupling modes in the display of the
generator. The complete system is controlled by the generator from front panel or software.
If the external coupling network is connected or switched on later than the generator, the generator must be reset by switching power
ON/OFF.
On the front panel of the coupler the user can switch ON/OFF the power supply of the EUT.
Using iec.control software the coupling matrix is completely controlled by software.
Coupling device detection
After power ON the compact NX, the controller searches all external devices.
External CDN detected: Working with external coupling device
External CDN not detected: Working with internal generator CDN
