Ametek EM TEST compact NX User Manual

AMETEK CTS Quick start guide - Conducted
1.00 34 / 50
6 Power mains cable 2 m Mains – Supply coupling
85V to 154 V 50 / 60 Hz
7 EUT mains To define Mains 3-ph – EUT input Ext fuse required

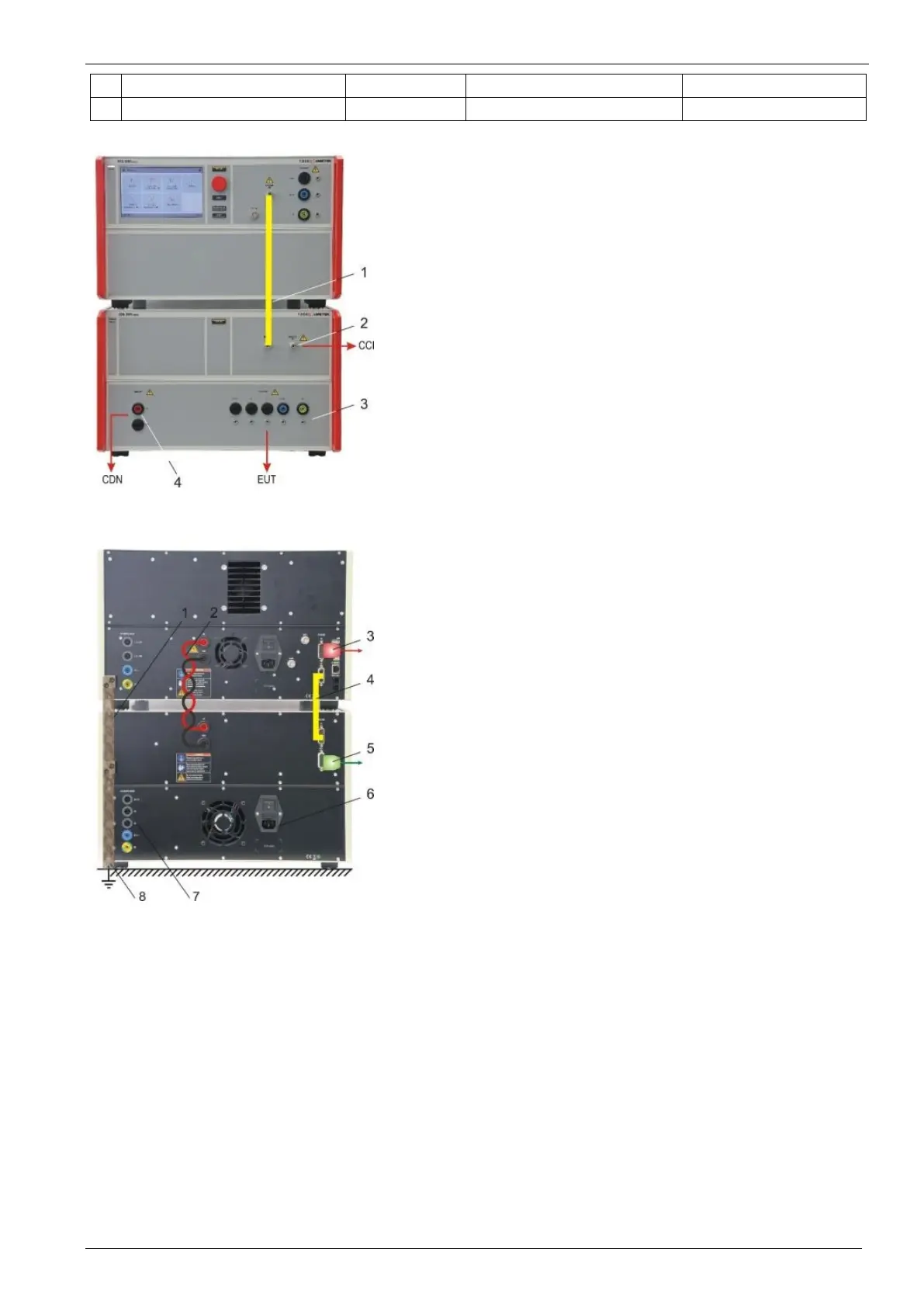

Figure 38 - Front Connections
Connection front side:
1. BCC 350, Burst connection cable. Coaxial cable for connect the EFT
Burst pulse from the generator to the coupling.
2. Burst output to a capacitive coupling clamp CCI with the coaxial
connection cable BCC 1000.
3. Output to the EUT. Burst and Surge pulses are coupled to the supply
lines.
4. Surge output to external CDN for data lines via a HVS cable.
Figure 3.2: Front side NSG 3060A with CDN 3063A-C32
Figure 39 - Rear Connections
Connection rear side:
1. Copper braid for earth the generator and coupling
2. HVS Surge cable
3. SCC AD, Safety circuit Adapter (Sys.link)
4. SLC 500 Sys.Link cable (Daisy chain)
5. SWL AD, Safety warning Lamp Adapter (Sys.link)
6. Mains supply (control)
7. EUT supply input
8. Earth connection to reference ground plane with low inductance
connection.
Figure 3.3: Rear side NSG 3060A with CDN 3063A-C32
