PARSTAT MC Hardware Manual
PARSTAT MC Hardware Manual 22
There are two rails on the top and two rails on the bottom of the power supply module. These rails help to
locate the module in the chassis, aligning and retaining it properly. The thumbscrews fasten the module to
the front of the chassis.

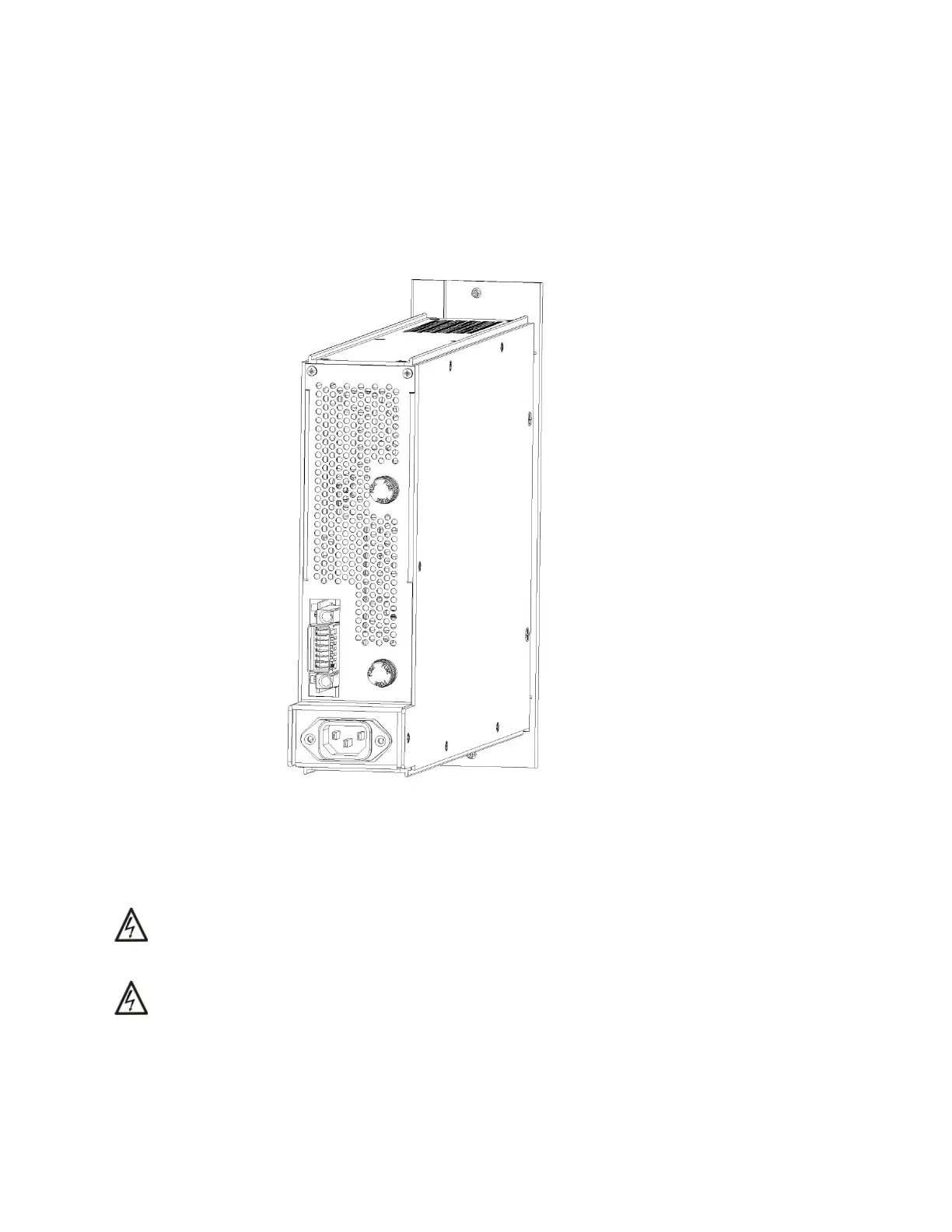

Figure 13. Back of the PWR01 after the removal from the CHS08A.
The rear of the power supply module has the power entry for AC mains power, the locators and connector
to the backplane module, and two fuse holders.
WARNING Do NOT connect an AC mains power cable to the power supply module when the
module is not installed in the PMC chassis.
WARNING Do NOT remove any covers or panels from the power supply module.
