PARSTAT MC Hardware Manual
PARSTAT MC Hardware Manual 51

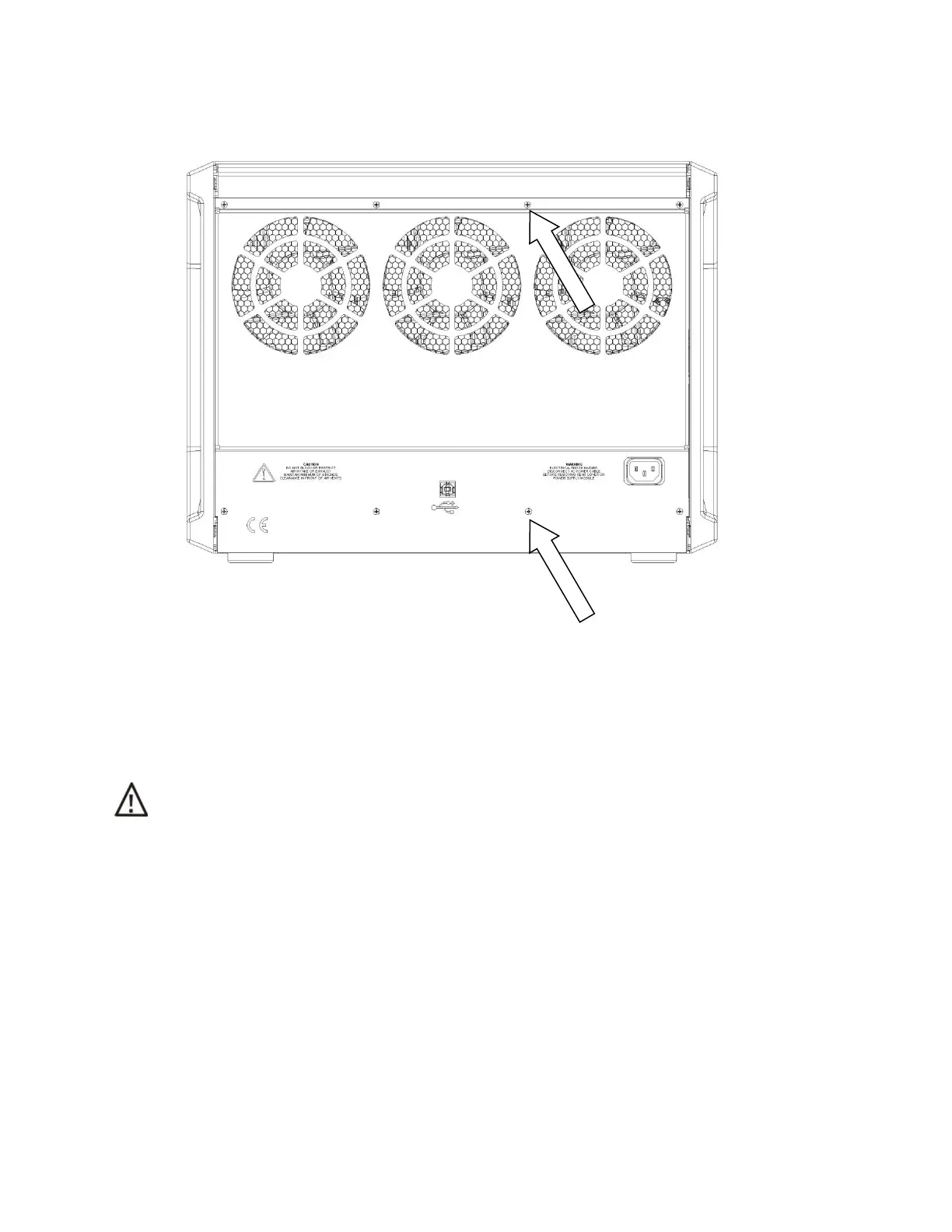

Figure 45. PMC CHS08A showing screw installation for the rear panel.
The power supply module may now be installed into the chassis. For instructions, refer to the section
Replacing the power supply module.
The potentiostat and blank modules may be installed. For instructions, refer to the section Replacing a
potentiostat module.
CAUTION Do NOT operate the PMC with empty slots.
The AC mains power cable and USB cable may be connected, and the instrument may be powered ON.
4.7. Airflow considerations
