4.1.1. Safety Information
WARNING Within this manual, a warning message indicates the potential for injury or death to
persons.
CAUTION Within this manual, a caution message indicates the potential for failure of or permanent
damage to the instrument.
4.1.2. The Power Supply Module
The power supply module contains the inlet for AC mains power, and provides power for all of the other
modules.

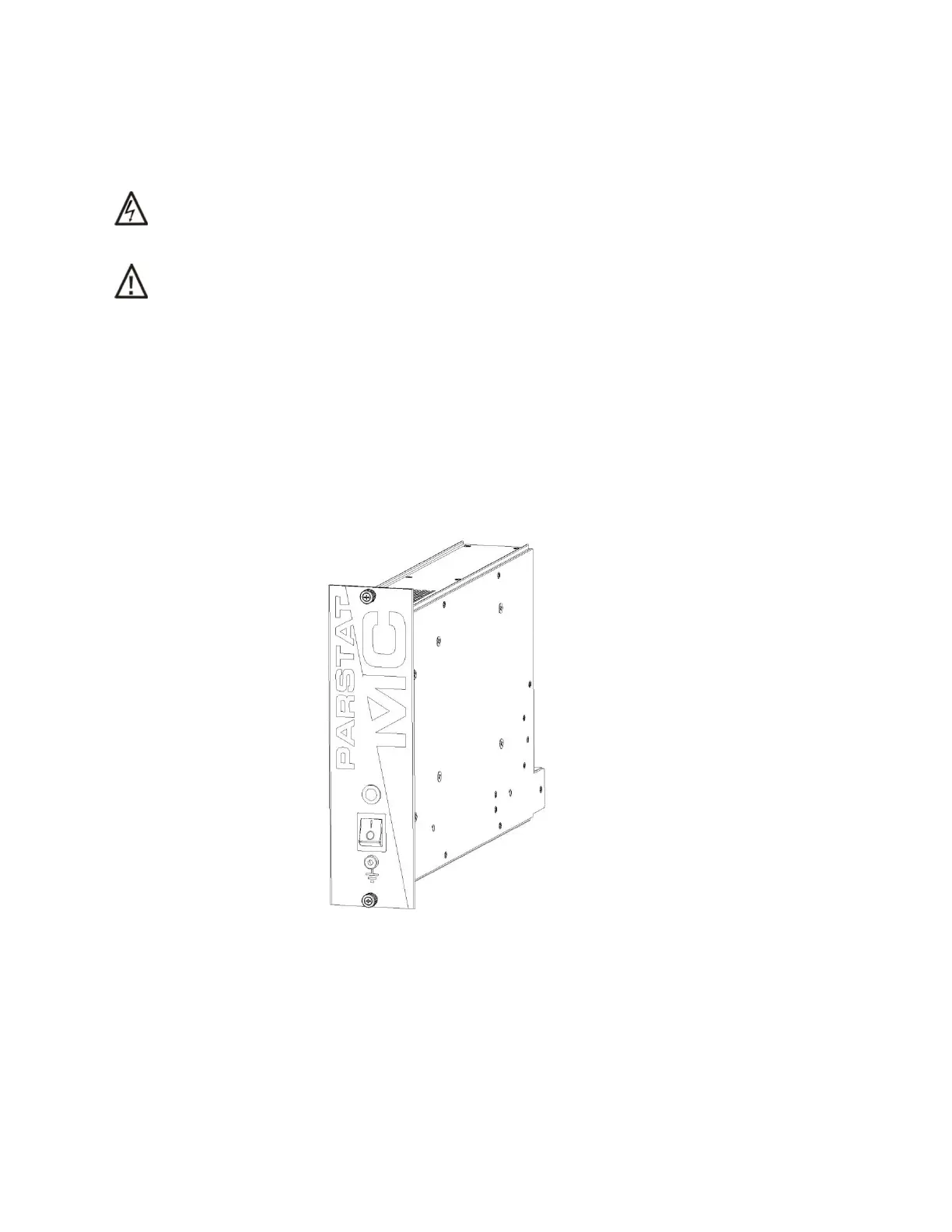

Figure 12. Power Supply module (PMC PWR01).
On the front panel of the power supply module is the main power switch for the PMC. When the switch is
toggled up (I), power is ON. When the switch is toggled down (O), power is OFF. The power indicator LED
lamp is lit when power is ON and unlit when power is OFF. The ground/earth connection on the front panel
is a 4mm banana jack.
