Analog Programming (APG) and Isolated Analog Programming (ISOL)
M370430-01 Rev B 4-9
4
Analog Programming Mode
For more details about connections for your particular model, see
“Rear Panel Connectors on 850 Watt Models” on page 1-7 or
“Rear Panel Connectors on 1500 and 1700 Watt Models” on page
1-9.
CAUTION: Equipment damage
The program/monitor signal and return are internally connected to the power
supply's negative output. Do not attempt to bias these away from that potential.
See “Making Control Connections” on page 4-7.
Analog Programming With External Voltage Source
The pin numbers are described in Table 4-3 on page 4-6.

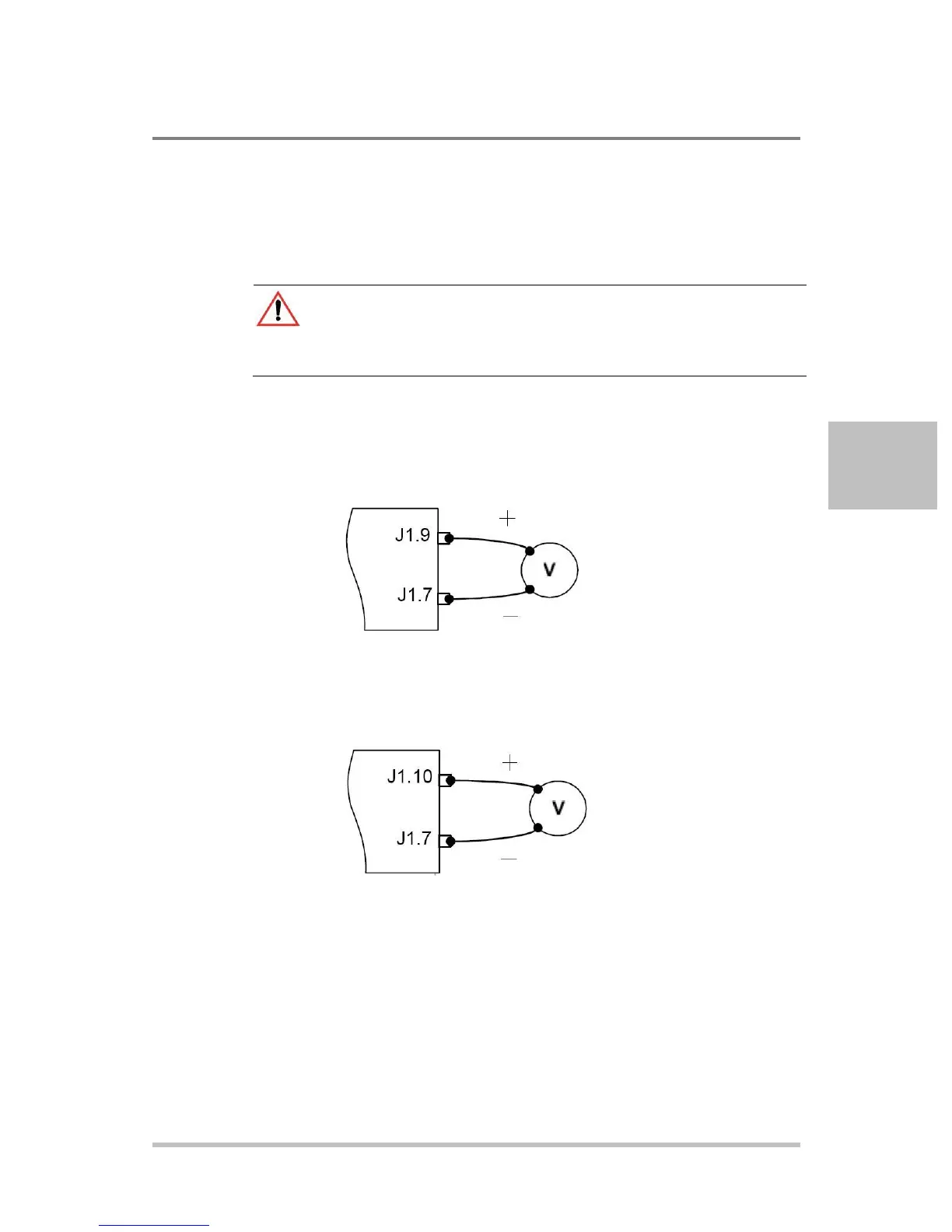

Figure 4-4 Programming Output Voltage using an External Voltage
Source
Figure 4-5 Programming Output Current using an External Voltage
Source
