Ametek Sorensen XTR User Manual

Communications Options
M370430-01 Rev B 6-3
6

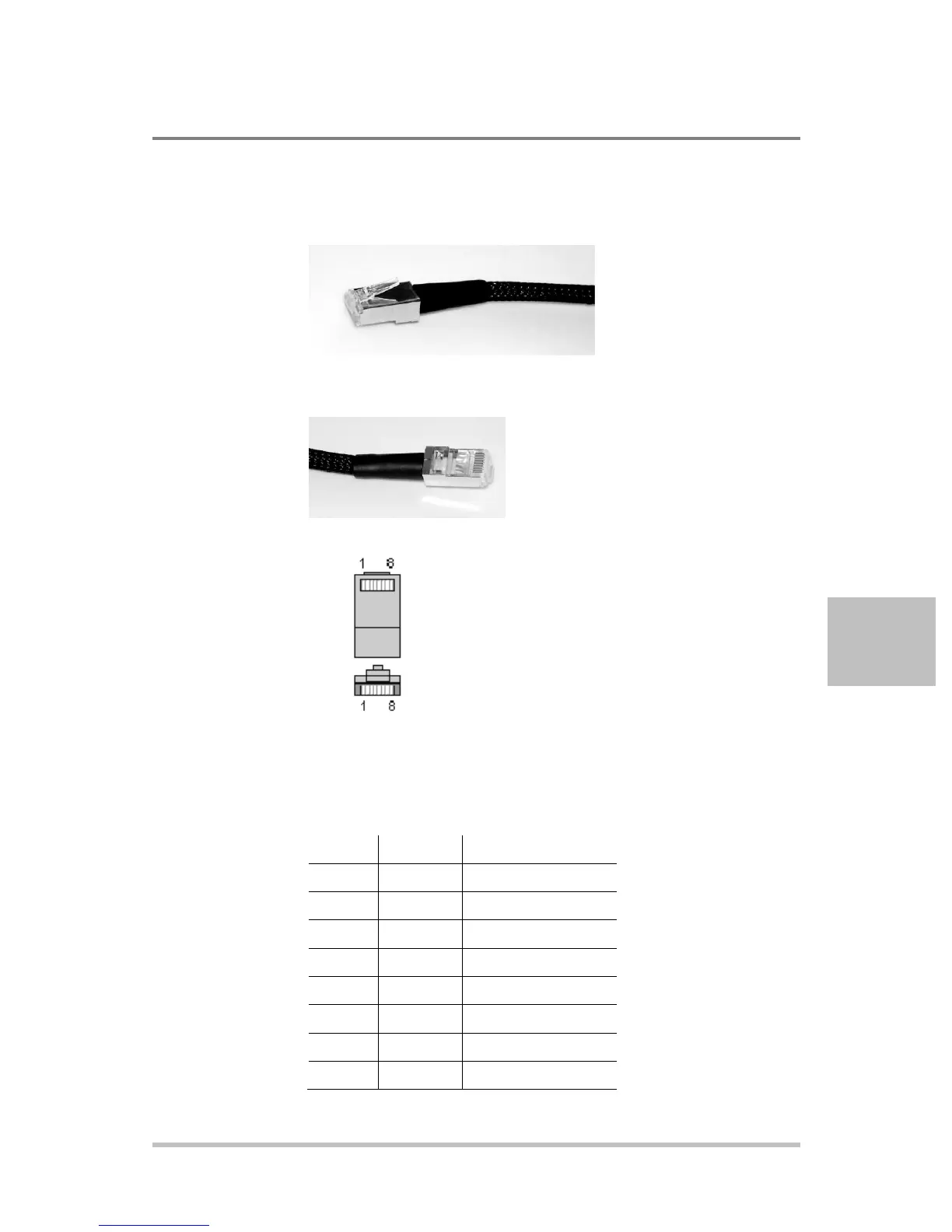

Communication Cable
Use a standard RJ-45 (see Figure 6-1) and RJ-45 cross-cable (see Figure
6-2).
Figure 6-1 Computer or HUB Plug
Figure 6-2 Power Supply Plug
Figure 6-3 RJ-45 Plug
Table 2-1 Description of Pins on RJ-45 Plug
Pin#
Name
Description
1
TX+
Transmit data +
2
TX–
Transmit data –
3
RX+
Receive data +
4
Gnd
Ground
5
Gnd
Ground
6
RX–
Receive data –
7
Gnd
Ground
8
Gnd
Ground

Ametek Sorensen XTR Specifications

General

Brand	Ametek
Model	Sorensen XTR
Category	Power Supply
Language	English
