3-16 | Thermox Series 2000 WDG-IV / IVC / IVCM
Control Unit Mounting
The Series 2000 Control Unit comes with various mounting options.
• The weatherproof enclosure can be mounted to either a panel, a wall,
or to a pole.
• Thegeneralpurposeenclosurecanbemountedasapanel,arack,ora
wallmount.
Find the section below that corresponds to the type of control unit mount-
ing configuration you ordered, then mount as shown in that section.
Weatherproof - Panel

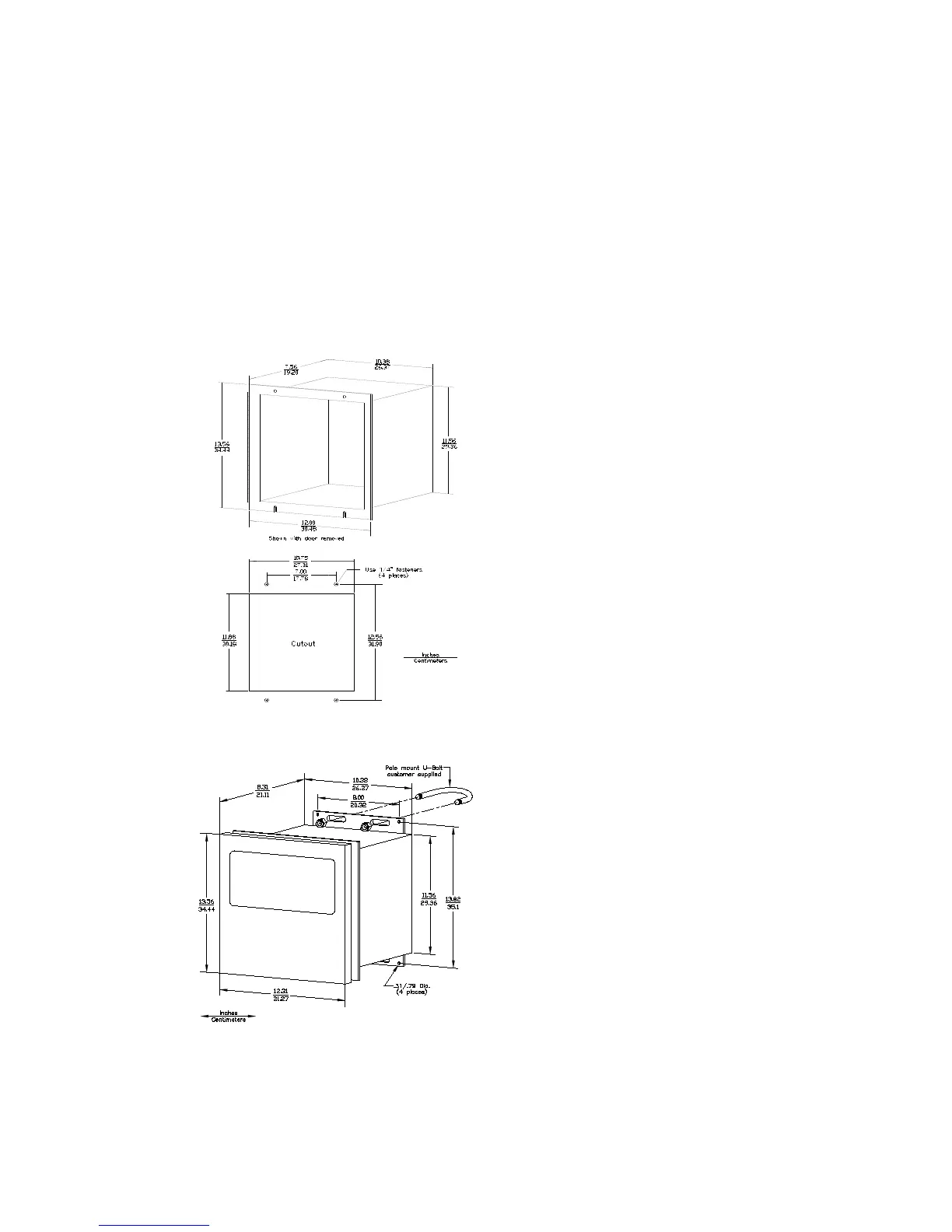

Figure 3-10 shows the panel mounting dimen-
sions for the Series 2000 weatherproof enclo-
sure. Use 1/4” diameter fasteners to mount the
control unit to the panel.
Figure 3-10. Series 2000, weatherproof panel mount.
Weatherproof - Wall/Pole
Figure 3-11 shows the wall and pole mounting
dimensions for the Series 2000 weatherproof
enclosure. For wall mount installations, use
1/4” diameter fasteners to mount the control
unit to a wall. For pole mount installations, the
two slots on the backplate of the enclosure
can be used to accommodate a customer-
supplied U-bolt of 3/8” or 1/2” diameter for a 2
1/2” to 4 1/2” pole diameter.
Figure 3-11. Series 2000, weatherproof wall/pole mount.
