52 ARX 23-2 T4i, ARX 26-2 T4i
h
1/4
2/4
1
3/4
9V
11V
15V
13V
36
22
23
25
26
30
31
32
33
24
38
37
39
21
40
34
35
27
28
29

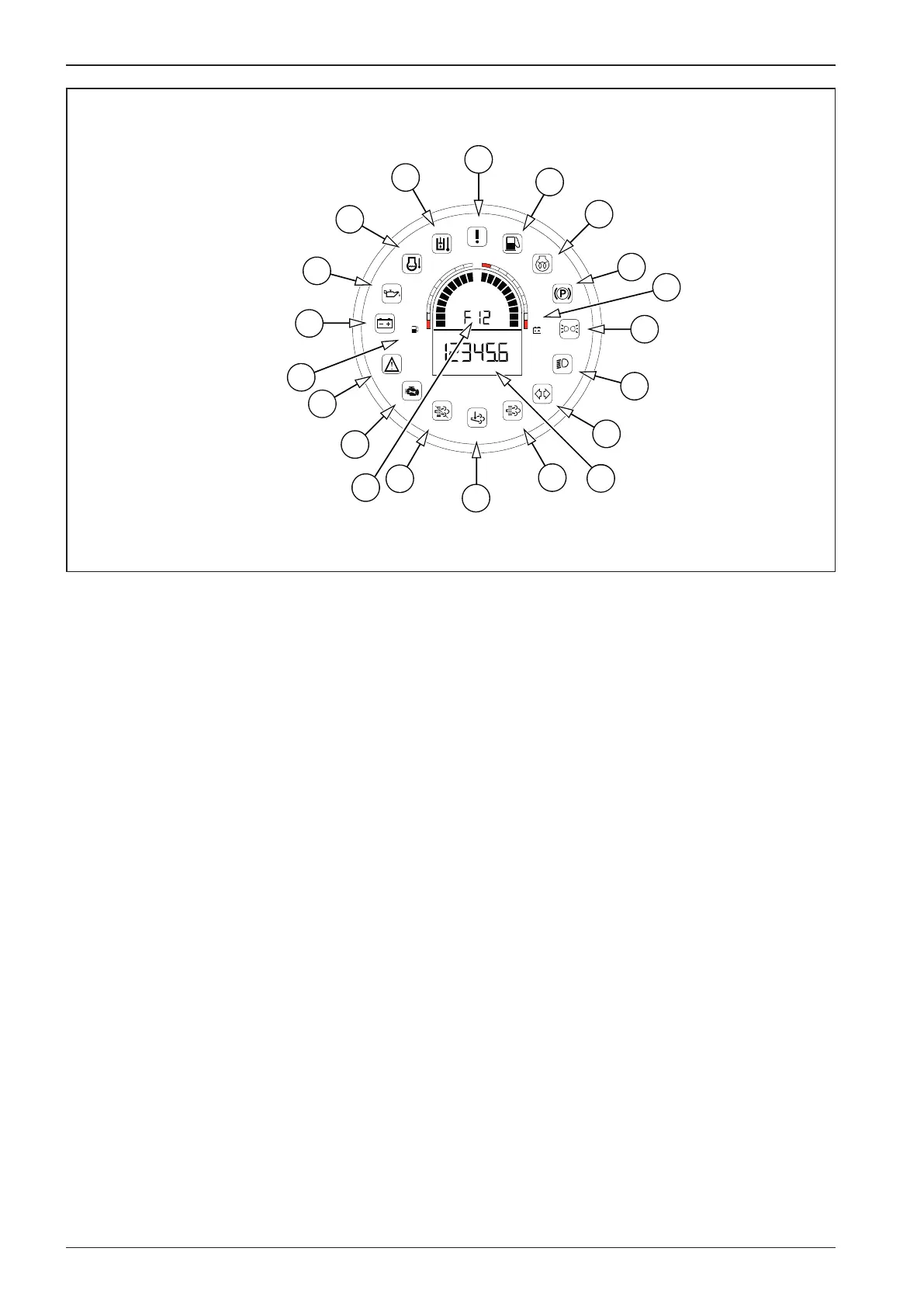

2.6 Controls and checking instruments
Indicator lamps
21 - Error message indicator lamp
22 - Battery charging indicator lamp
23 - Engine oil pressure indicator lamp
24 - Coolant temperature indicator lamp
25 - Hydraulic oil temperature indicator lamp
26 - Emergency stop indicator lamp
27 - Fuel reserve indicator lamp
28 - Engine glowing indicator lamp
29 - Brake indicator lamp
30 - Outline lights indicator lamp
The warning indicator lamps for engine oil pressure, battery charging and brakes must light up when the ignition is ON. As soon as you
start the engine, the indicator lamps must go o.
31 - Low beam lights indicator lamp
32 - Indicator lamp for direction indicators
33 - DPF clogging indicator lamp
34 - Indicator lamp of high temperature of exhaust gases
35 - Suppression of DPF regeneration indicator lamp
36 - Engine failure indicator lamp
37 - Battery voltage indicator
38 - Engine hour counter
39 - Error message indicator
40 - Fuel tank indicator
Display (20)
Instrument to display parameters and functions of the engine and of the machine.
