104 ARX 4
1208531 | 03.07.2012

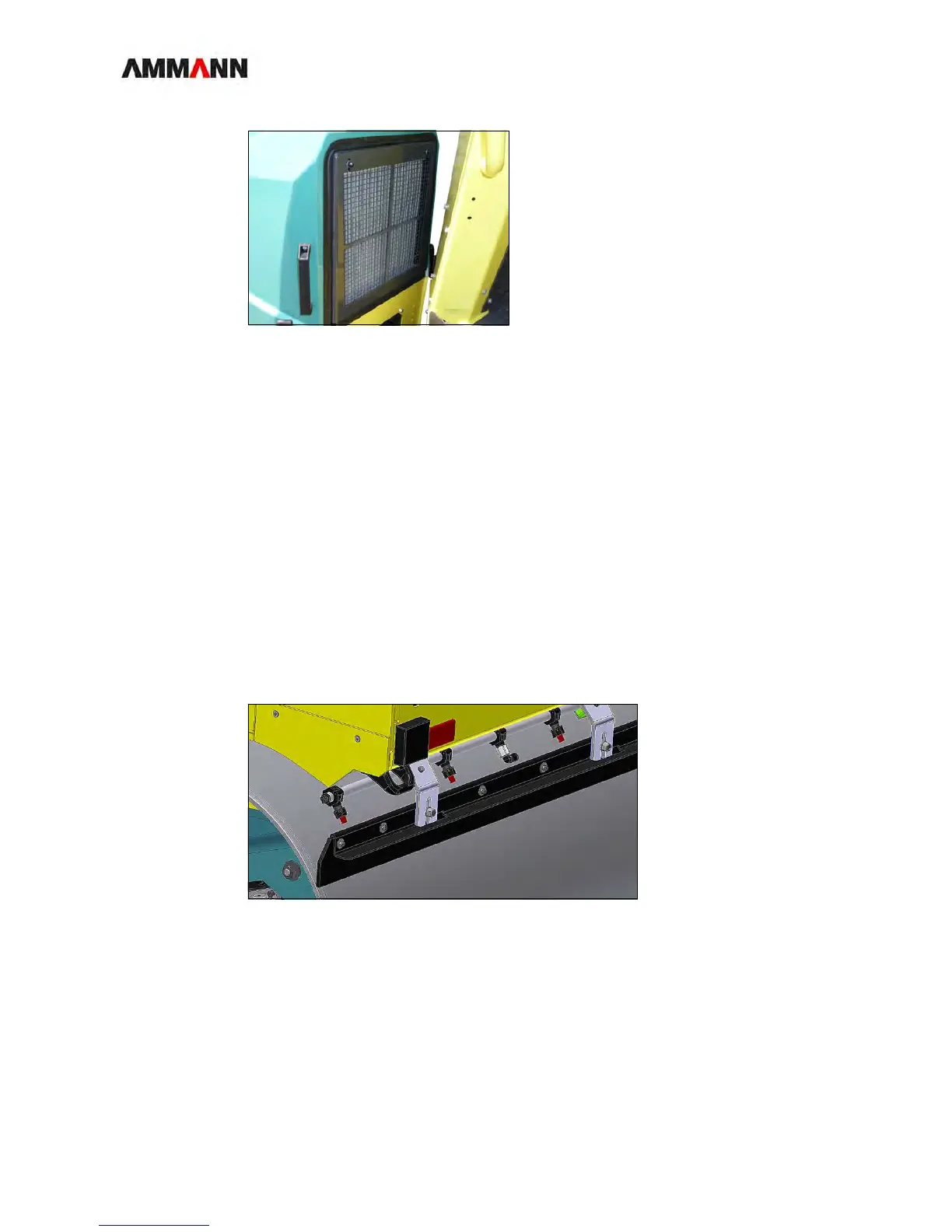

Fig. 9-24 Radiator grill
9.13 Functional check
9.13.1 Sprinkler system
Check and adjust 1 Switch on sprinkler.
2 Check the nozzles on the sprinkler tubes in front and in back.
9.13.2 Roller drum scraper
Roller drum scra-
per
1 Tension the scrapers lightly by hand.
Fig. 9-25 Roller drum scraper
Scraper for pneu-
matic wheels
1 Adjust the scrapers with a clearance of 3-5mm.
1.1 The anti-adhesive must not get scraped off.
