Maintenance 109
1208531 | 03.07.2012
9.14 Lubricating steering cylinder, bearing
1 Rotate the roller's steering fully to the stop in order to grease the cylinder.
2 Steer the roller briefly to the right and the left. This causes the bearing to be
unloaded.
3 Clean the grease nipple (1) before greasing.
4 Connect the grease gun to the grease nipple.
5 Press grease into the bearing until it visibly begins to ooze out.
6 Put the protective cover back on.

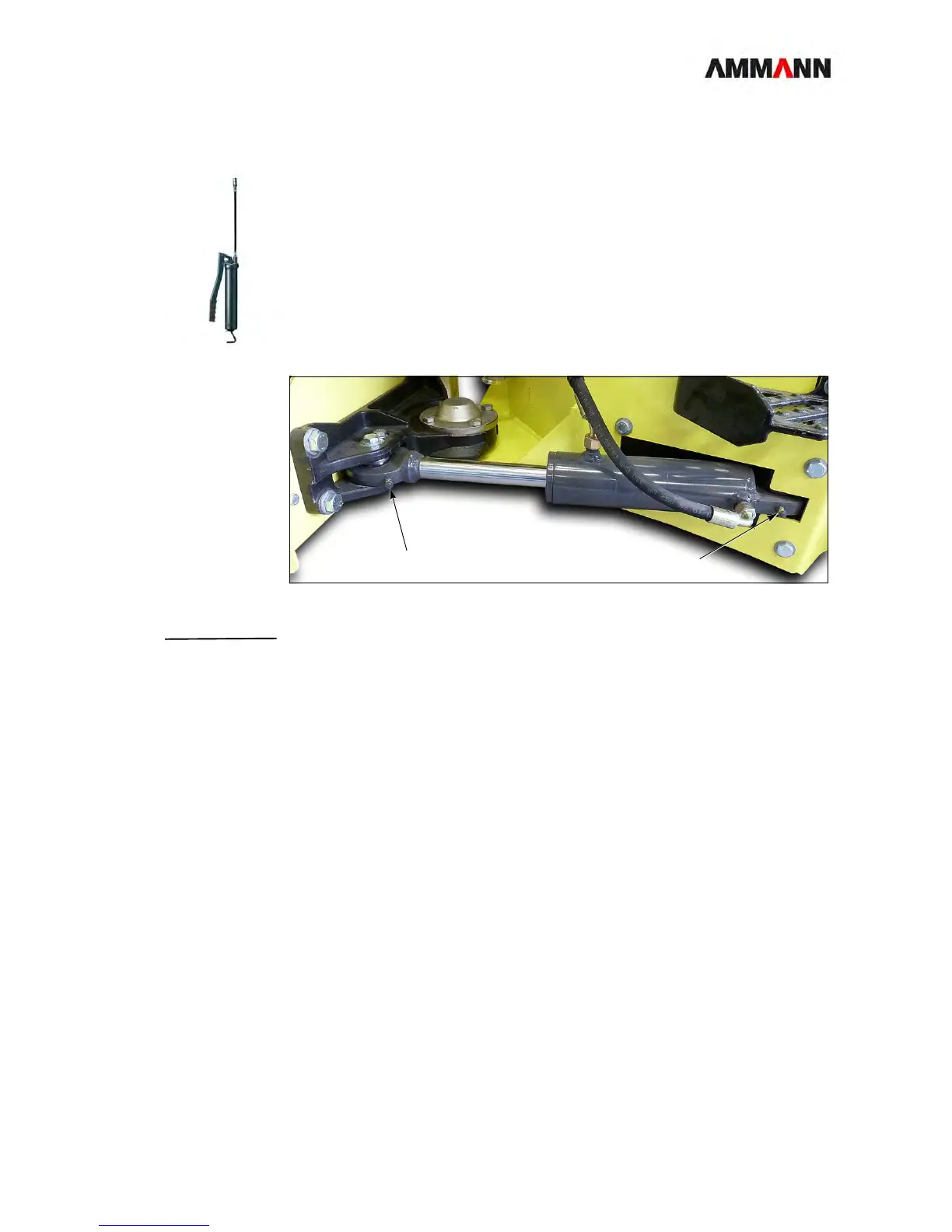

Fig. 9-32 Location of grease nipples on steering cylinder
NOTE Damager to property due to increased wear!
• Regrease the bearing after every cleaning / steam cleaning of the roller.
