4.1 Component overview

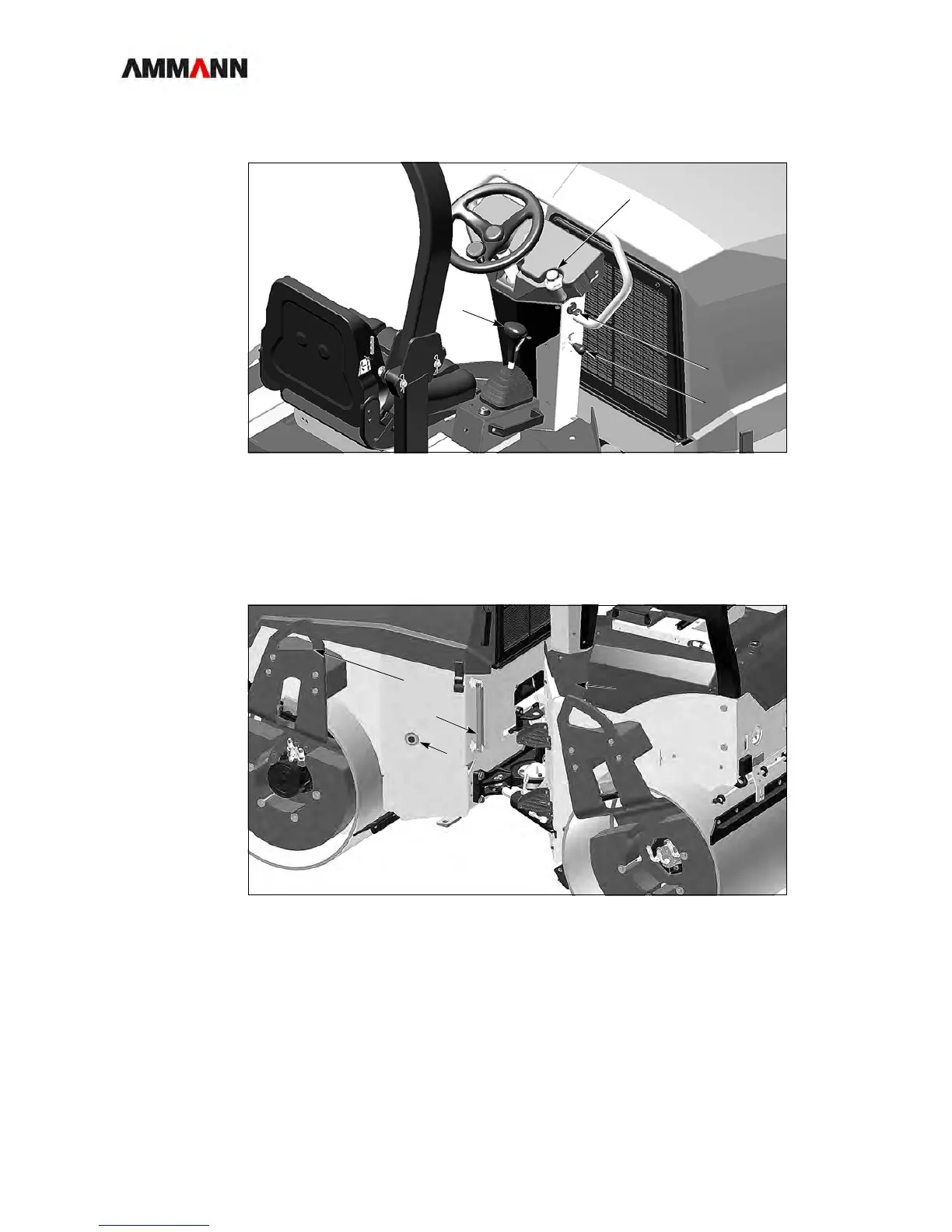

Fig. 4-1 View driver’s position
Fig. 4-2 View from left
1 Emergency stop switch
2 Ignition switch
3 Speed adjusting lever
4 Operating lever
1 Suspension
2 Articulated joint protection
3 Hydraulic tank oil level indicator (optical)
4 Filler neck cover for anti-adhesive tank (option)
