Ammann ARX 40 - Page 39

Structure and function 39
1208531 | 03.07.2012

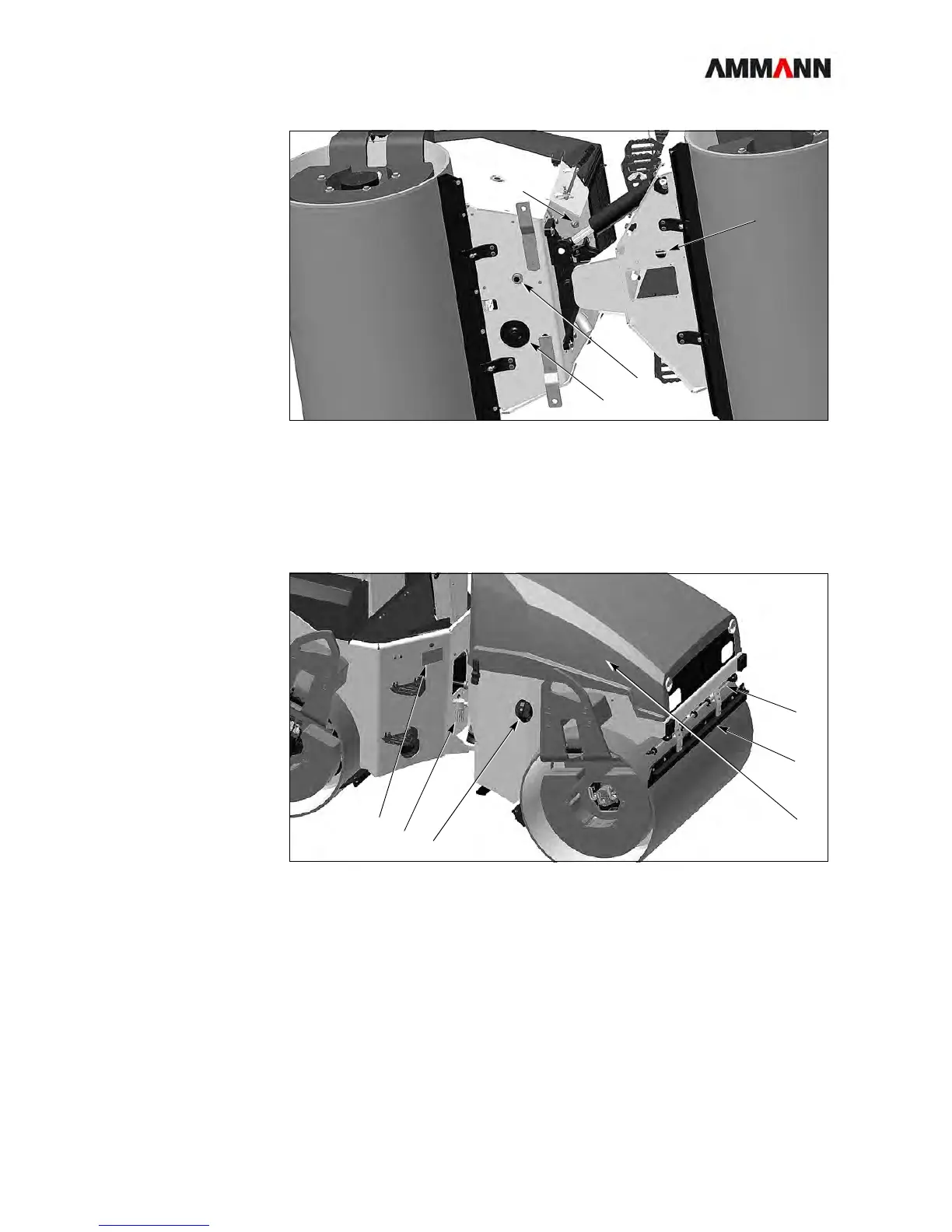

Fig. 4-3 View from below
Fig. 4-4 View front right
1 Hydraulic oil drain
2 Diesel tank drain
3 Draining engine oil
4 Anti-adhesive tank drain
1 Identification plate
2 Water filter
3 Tank cap (diesel)
4 Front sprinkler
5 Roller drum scraper
6 Document holder under the hood
1
2
3
4
5
4
6
1
3
2
