52 ARX 4
1208531 | 03.07.2012
6.1 Commissioning
NOTE Familiarize yourself with the manual before commissioning.
In order to begin operating the roller (driving), the following conditions must be ful-
filled:
● Joint protection is opened.
● Motor is started.
● Seat contact is closed.
● Operating lever is in the neutral position.
● Parking brake is not activated.
In order to be able to activate the vibration, the work gear must also be activated.
6.1.1 Roller with pneumatic wheel (combined roller)
● If using a combined roller, you must check tire pressure and adjust as required.
The ex works pressure is set to 2.5 bar.

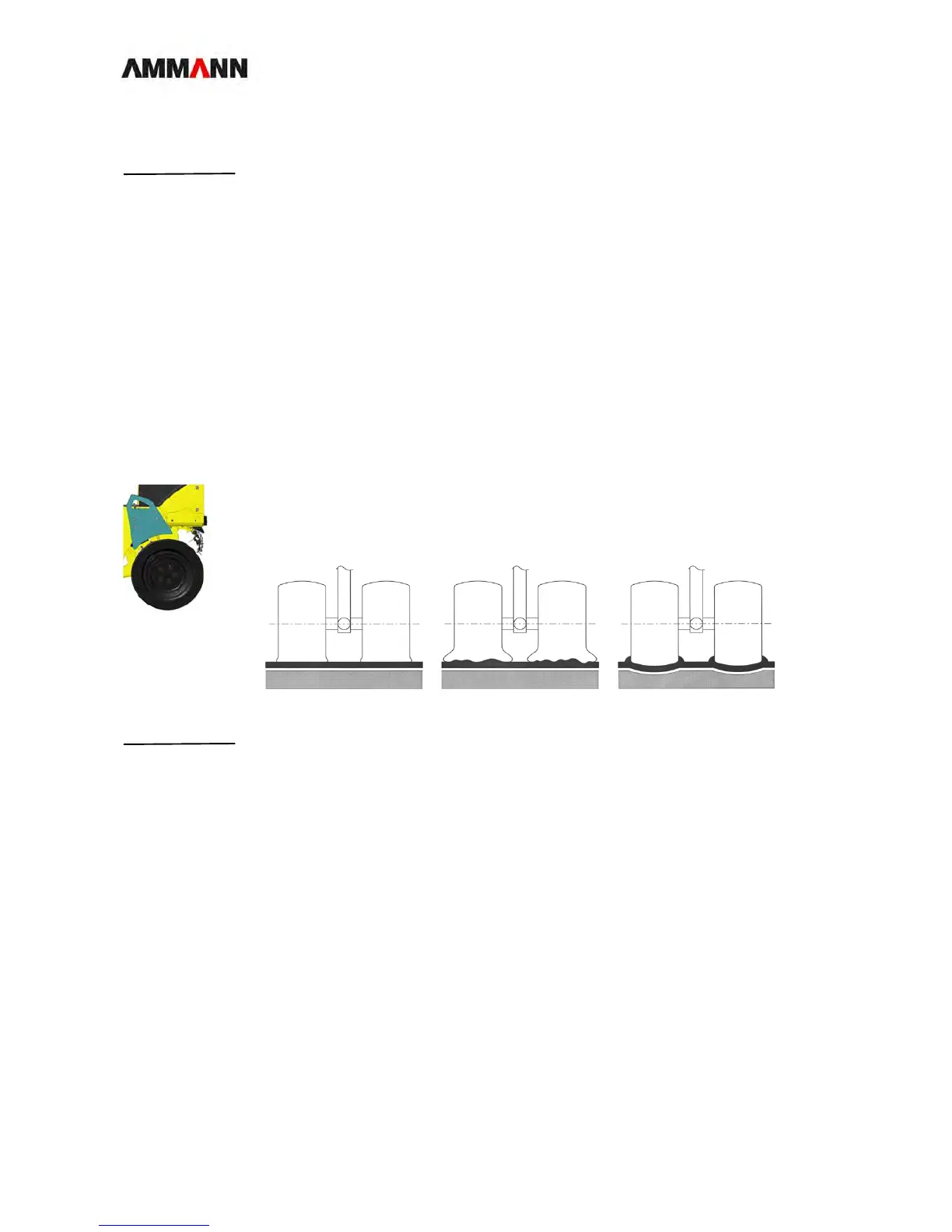

● Tire pressure must be adjusted to suit the compaction condition of the ground:
NOTE The tires must be replaced if the fabric is visible on the tire surface.
6.1.2 Wide tires
Valves Two tires on each side are connected to each other. The valves for inflating the tires
come through the same opening.
The valve (1) with the hose leads to the inner tire.
The valve (2) with the tube leads to the outer tire.
