Operation 59
1208531 | 03.07.2012
Setting
Backrest
1 Move the lever upward or downward.
The tension of the suspension can be adjusted to suit the weight of the driver.
Setting
Weight

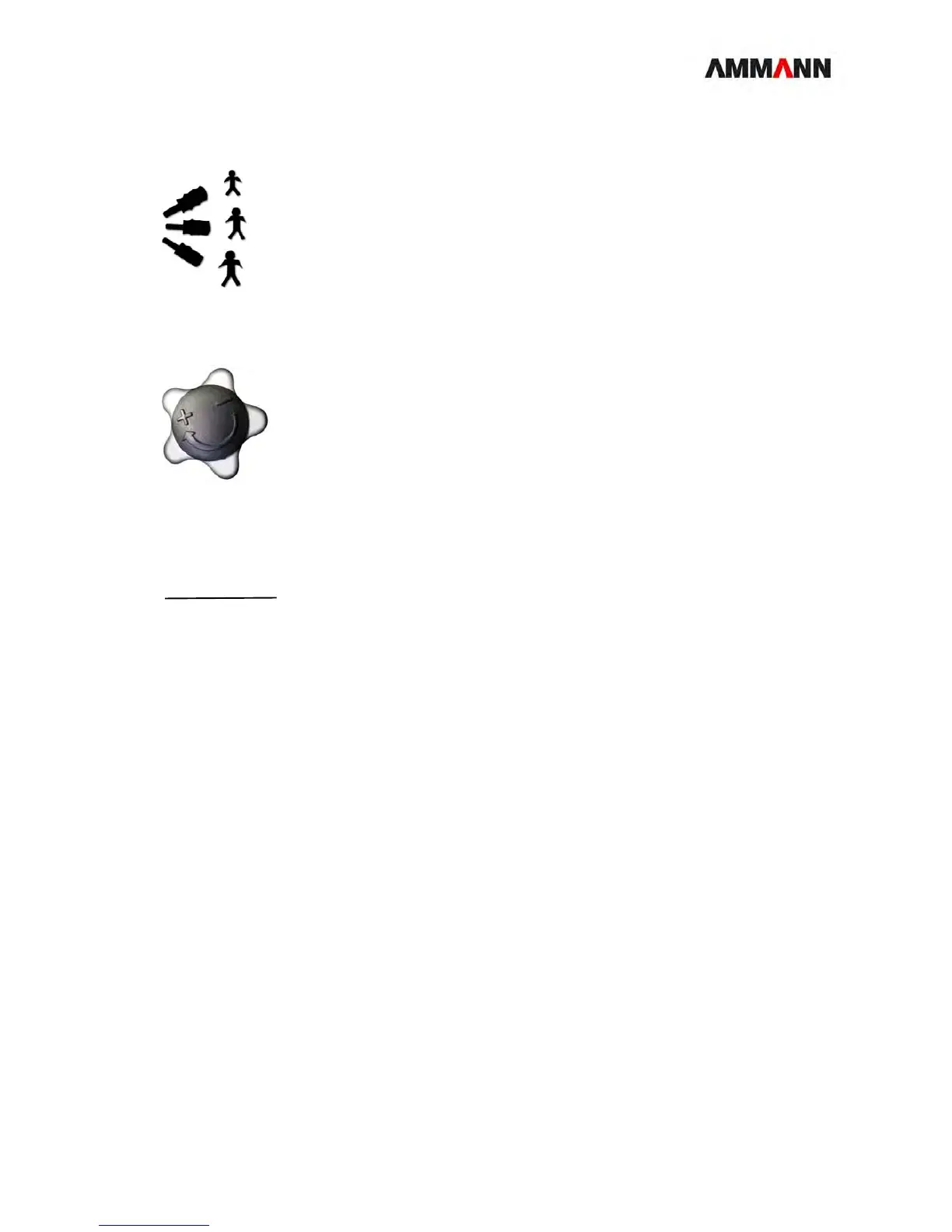

1 Turn the adjusting knob:
2a Toward right: The spring tension of the seat will be reduced.
2b Toward left: The spring tension of the seat will be increased.
Weight adjustment is infinite in the range of 50 - 120kg.
Forward/back-
ward adjustment
1 Pull the lever slightly upward.
1.1 Place the seat in the desired position.
NOTE If adjusted ergonomically forward/backward, your feet will be on the floor pa-
nel.
Transverse ad-
justment
1 Pull the lever slightly upward.
1.1 Place the seat in the desired position.
7.3 Protection against vandalism
Always fold the vandalism protection cover upward before start-up of the roller.
The vandalism protection cover protects the instrument panel from:
● the effects of weathering
● vandalism
● alterations by third parties
If you wish to secure the instrument panel from unauthorized access by third parties,
you can install a padlock on the loop provided for this purpose.
Commercially available padlocks can be obtained in any building supplies store.
