Ammann ARX 40 - Edge Cutter; Presetting Edge Cutter

70 ARX 4
1208531 | 03.07.2012
8.1 Edge cutter

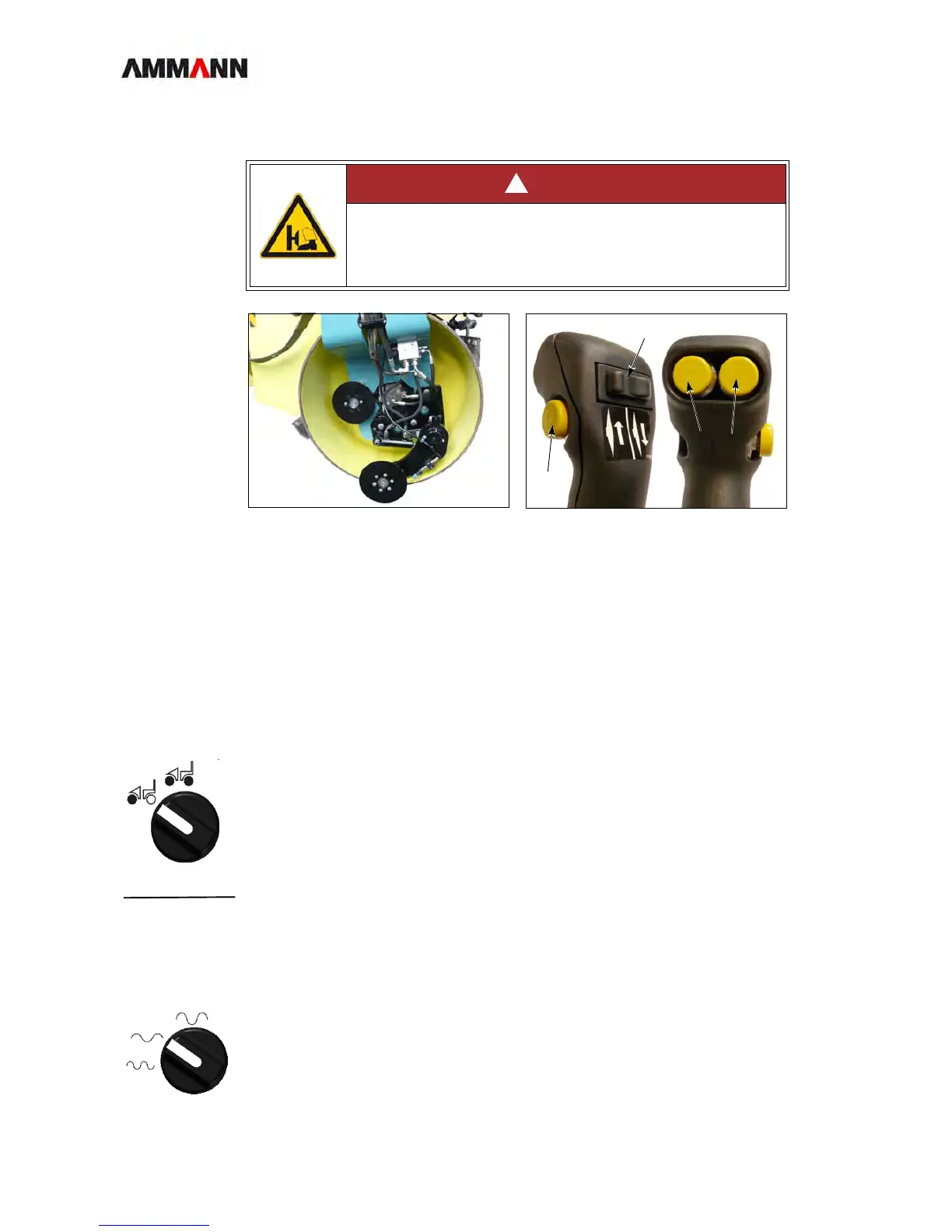

Fig. 8-1 Edge cutter / Multi-function operating lever
8.1.1 Presetting edge cutter
Vibration 1 Before operating the edge cutter, set the pre-select switch to “front vibration”.
NOTE The edge cutter only operates correctly in this setting. If the pre-select is set
incorrectly, it will malfunction (vibration will be switched on, pavement will be
damaged).
Frequency 1 Before operating the edge cutter, turn the pre-select switch:
2a towards the left: High frequency / low amplitude or
2b to the center: Low frequency / low amplitude
DANGER
Risk of injury when lowering cutting disk or pressure disk
• Keep personell out of the hazard zone when raising and lowe-
ring the edge cutter. Keep to a safety distance of at least 1 m.
1 Raising/lowering the edge cutter.
2 Roller drum sprinkler
3 Edge cutter water
4 Vibration on/off
!
3 2
4
1
