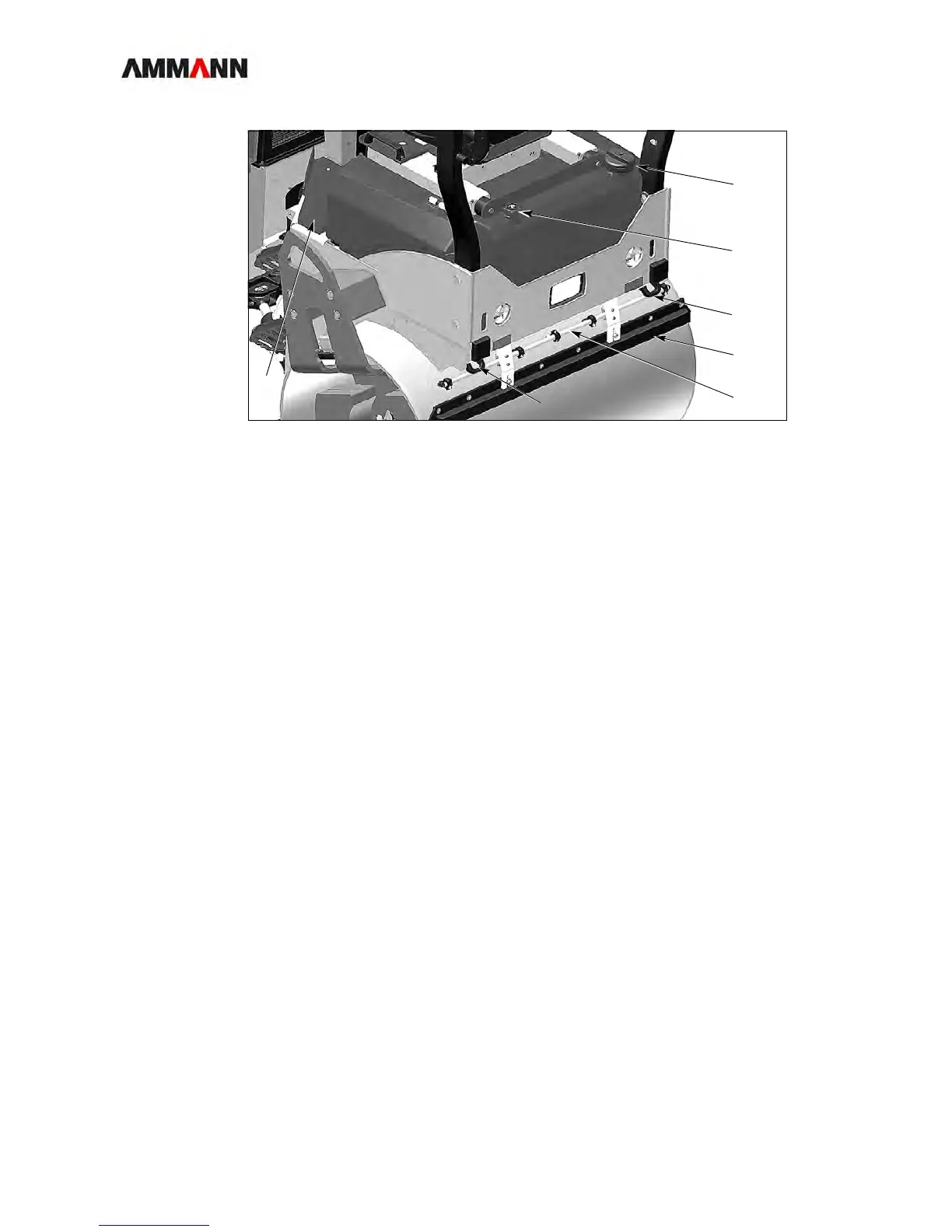

Fig. 4-5 View rear left
1 Water tank cover
2 Water level display
3 Rear sprinkler
4 Roller drum scraper
5 Water pump (below the footplate)
6 Towing lugs
1
2
4
3
5
6
6
