Encoder Configuration Options
31
N1000 Series User Manual
RS232 Settings

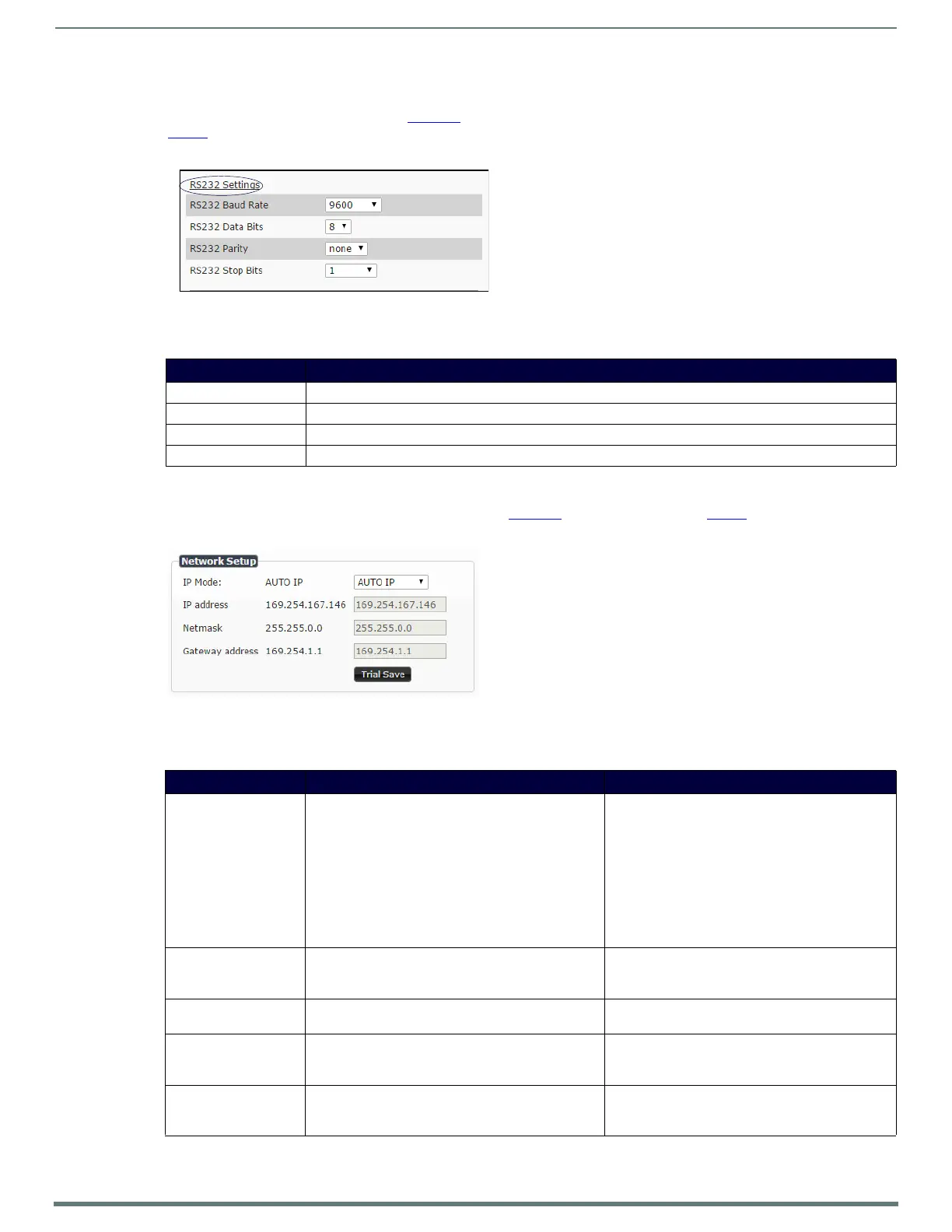

The section of the Settings page shown in Figure 25 is displayed when you click the RS232 Settings link. Options are described in
Table 3
.
FIG. 25
RS232 Settings
Network Setup Section
The Network Setup section of the Settings page is shown in Figure 26. Options are described in Table 4.
FIG. 26
Network Setup Section
TABLE 3 Settings Page: RS232 Settings
Option Description
RS232 Baud Rate Select the appropriate baud rate for the RS232 serial interface. Default is 9600.
RS232 Data Bits Select the appropriate data bit count for the RS232 serial interface. Default is 8.
RS232 Parity Select the appropriate parity for the RS232 serial interface. Default is no parity (none).
RS232 Stop Bits Select the appropriate number of stop bits for the RS232 serial interface. Default is 1.
TABLE 4 Settings Page: Network Setup Settings
Option Description Notes
IP Mode Configure the IP address mode. When set to AUTO IP,
an IP Address in the range of 169.254.xxx.xxx with
Netmask of 255.255.0.0 and Ga t e w a y address of
169.254.1.1 will be automatically assigned to the
N1000 Encoder by the control software. When set to
DHCP, an IP Address in the range of the DHCP server on
the network will be automatically assigned to the
N1000 Encoder. When set to STATIC, an IP address,
Netmask, and Ga t e w a y address must be manually
entered.
Using DHCP is generally not recommended. If the
device is set to DHCP and fails to receive an address
from the DHCP server in time, it will revert back to the
AUTO IP Address (169.254.xxx.xxx) until the unit is
rebooted.
IP address View the current IP address of the N1000 Encoder.
When in STATIC mode, enter a new IP address into this
field.
Netmask View the current Netmask of the N1000 Encoder. When
in STATIC mode, enter a new Netmask into this field.
Gate w a y a dd r e s s View the current Gate w a y a d d re s s of the N1000
Encoder. When in STATIC mode, enter a new Ga t e w a y
address into this field.
Trial Save Click to initially save IP address changes. Once you log
in to the unit using the new address, you will be able to
confirm and accept the changes permanently.
Unit can be rebooted during Trial Save mode to revert
back to previous IP changes.
