Encoder Configuration Options
40
N1000 Series User Manual
Logs Page

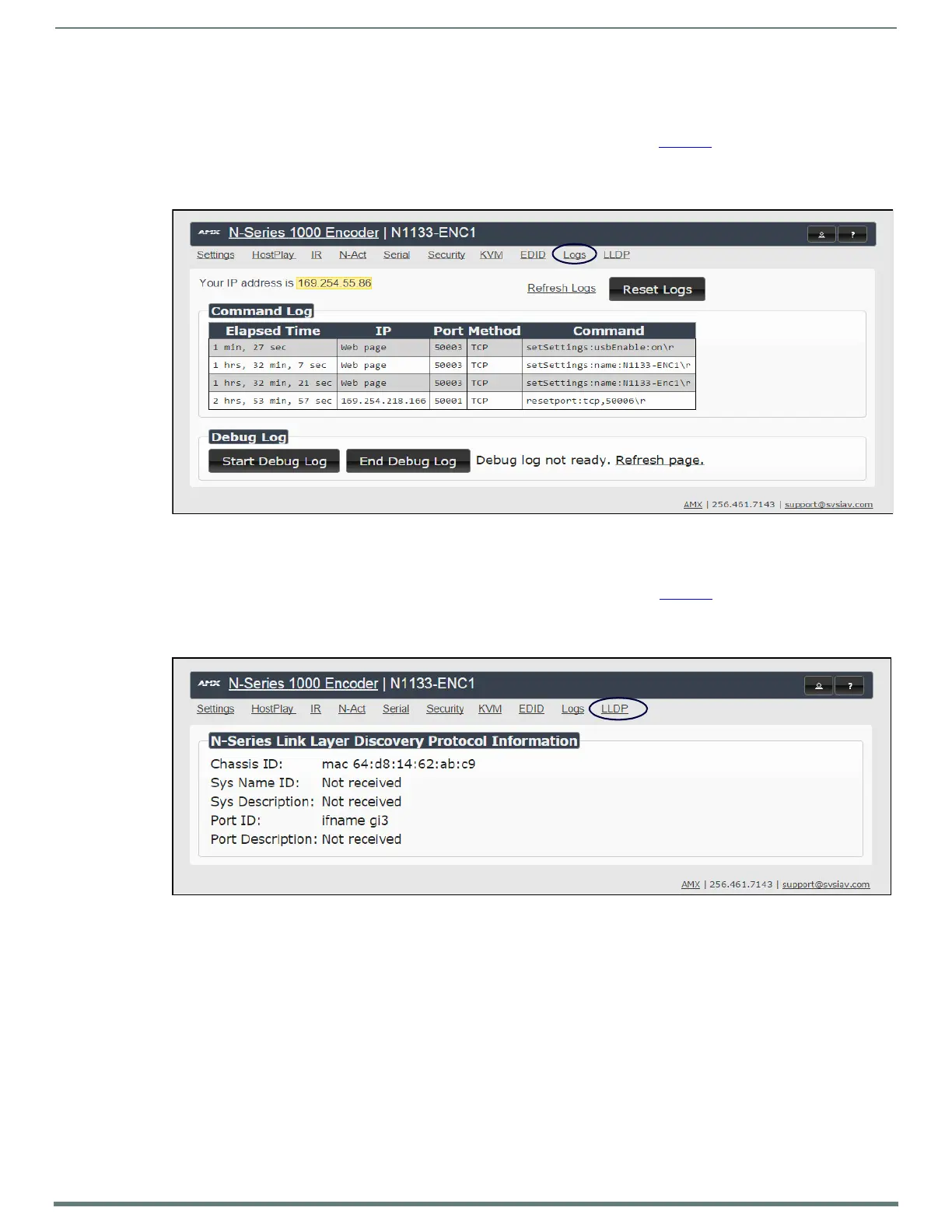

Click the Logs link at the top of any of the main web pages to access the page shown in Figure 37. The Logs page displays a
command log that lists all TCP and UDP messages the unit receives. It also displays the web browser’s IP address and gives you
options to Refresh and Reset Logs.
FIG. 37
Logs Page
LLDP Page
Click the LLDP link at the top of any of the main web pages to access the page shown in Figure 38. The LLDP page displays
information from the Link Layer Discover Protocol (LLDP) packet which identifies the port number and switch the device is
connected to.
FIG. 38
LLDP Page
