Introducing Your New N1000 Series
8
N1000 Series User Manual

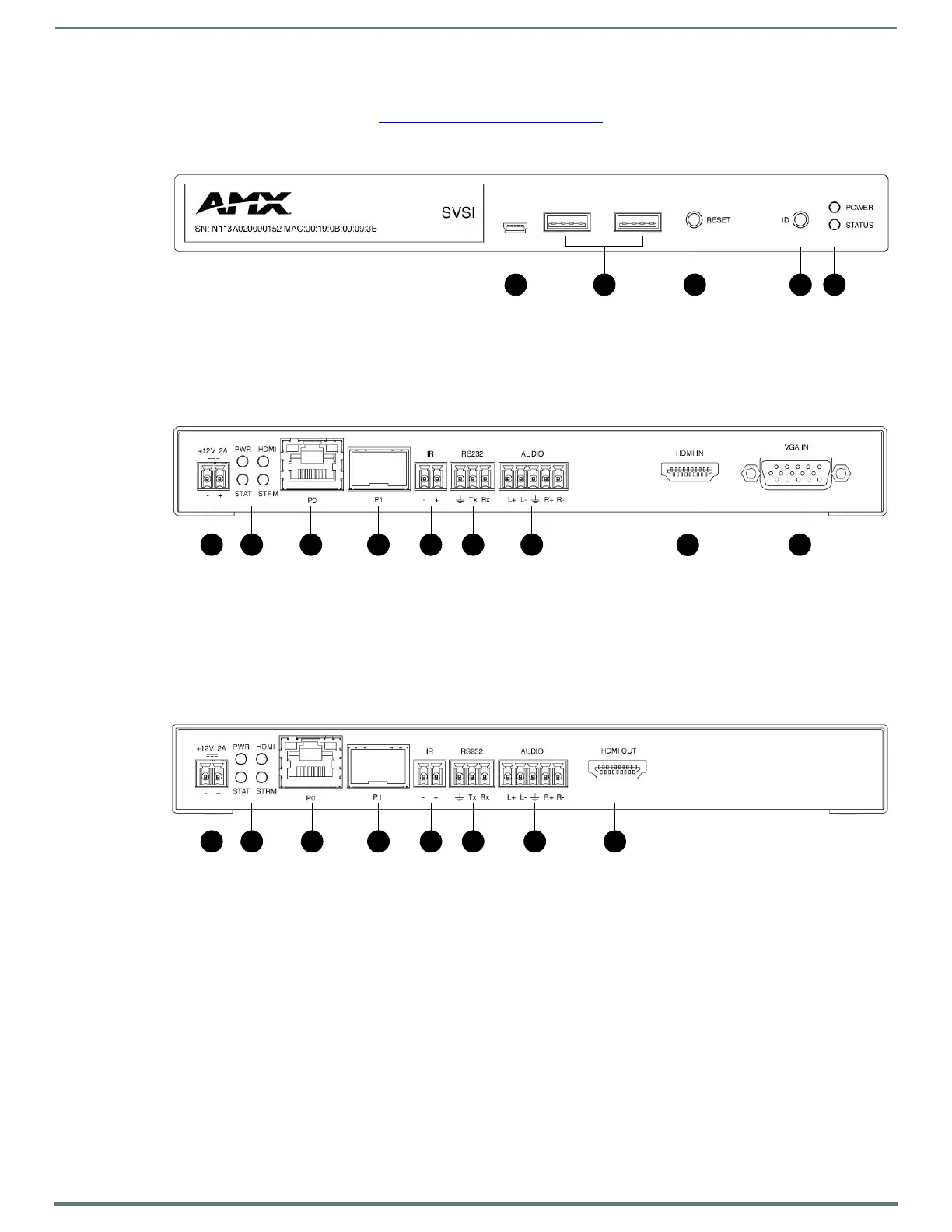

N1133/N1233 Front and Rear Panel Descriptions
Refer to the following figures and the Front and Rear Panel Descriptions table on page 9 for details on ports and LEDs available on
the N1133/N1233 Series Encoders and Decoders.
FIG. 4
Front Panel (N1133/N1233)
FIG. 5 N1133 Encoder Rear Panel
FIG. 6 N1233 Decoder Rear Panel
1 2 3 54
1) USB Mini-B Port (supported by Encoders)
2) USB Standard-A Ports (supported by Decoders)
3) Device Reset Button
4) Device ID Discovery Button
5) Power/Status Indicators
9
1) 12VDC Input (not needed with PoE)
2) Status Indicators
3) RJ45 Auto-Sensing Gigabit Ethernet Switch Port — PoE
4) 1G SFP Port
5) IR Emitter Connection
6) RS232 Connection
7) Analog Audio Input
8) HDMI Video Input
9) DB-15 Analog Input
1 2 3 7654
8
1) 12VDC Input (not needed with PoE)
2) Status Indicators
3) RJ45 Auto-Sensing Gigabit Ethernet Switch Port — PoE
4) 1G SFP Port
5) IR Emitter Connection
6) RS232 Connection
7) Analog Audio Output
8) HDMI Video Output
1 2 3 87654
