Status Section

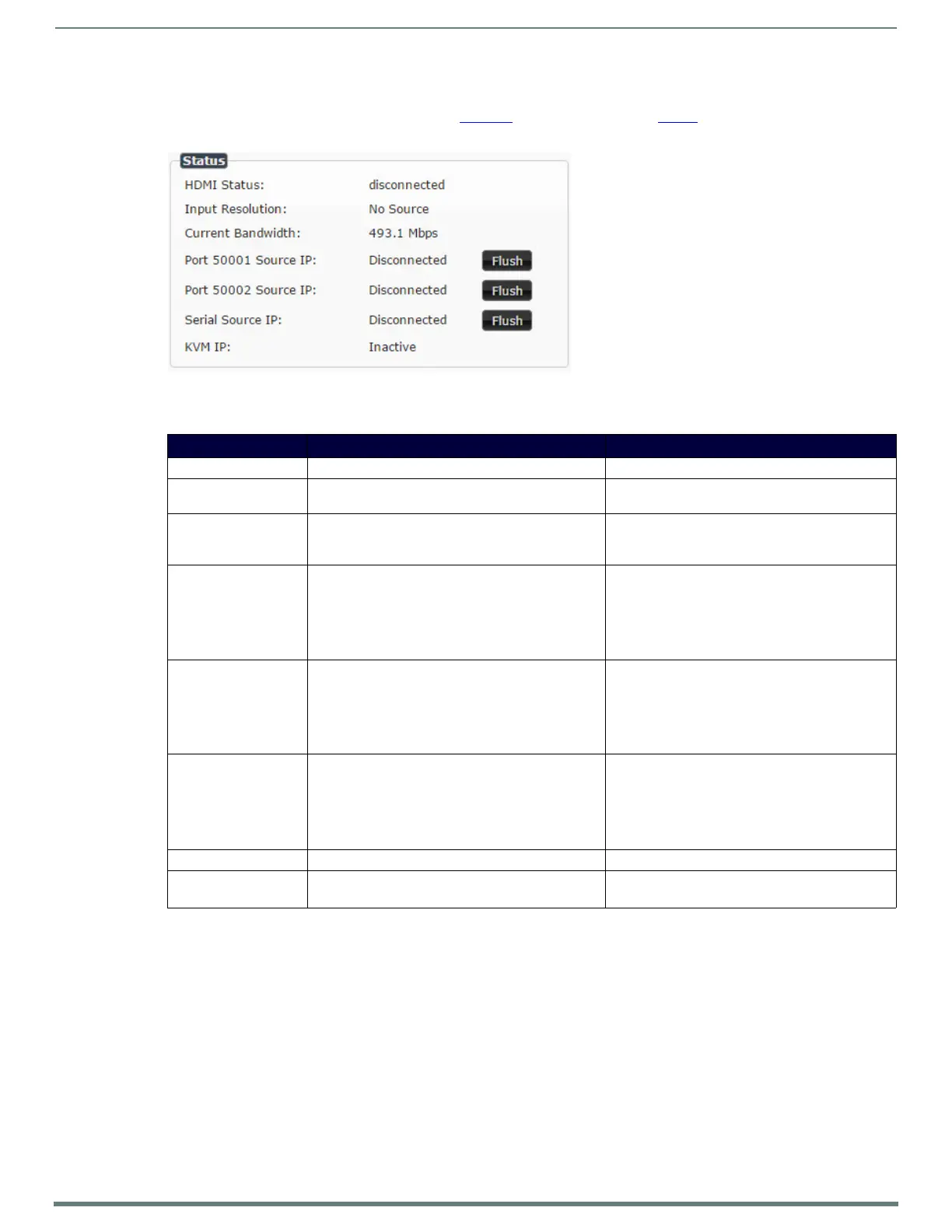

The Status section of the Settings page is shown in Figure 27. Options are described in Table 5.
FIG. 27
Status Section
TABLE 5 Settings Page: Status Section
Option Description Notes
HDMI Status Indicates if a video source is connected to the Encoder.
Input Resolution Indicates the video resolution of the currently
connected source.
Current Bandwidth This is a snapshot of the unit as properties were loaded
to the browser, not a live counter. Refresh the page to
get an updated bandwidth.
Port 50001 Source IP Shows the IP address of the currently connected device
or displays Disconnected if no connection exists.
Port 50001 can only accept a single external
connection at a time. If a device is currently showing
the port occupied (by a control system or other
device), then other connections will be rejected.
However, connection attempts from the same IP will
override the current connection.
Port 50002 Source IP Shows the IP address of the currently connected device
or displays Disconnected if no connection exists.
Port 50002 can only accept a single external
connection at a time. If a device is currently showing
the port occupied (by a control system or other
device), then other connections will be rejected.
However, connection attempts from the same IP will
override the current connection.
Serial Source IP Shows the IP address of the currently connected device
or displays Disconnected if no connection exists.
Only a single external connection can be accepted on
the port. If a device is currently showing the port
occupied (by a control system or other device), then
other connections will be rejected. However,
connection attempts from the same IP will override
the current connection.
Flush buttons These buttons reset the port.
KVM IP Shows the IP address of the KVM Decoder currently
connected to this Encoder.
This setting only applies to the N1133.
