Encoder Configuration Options
27
N1000 Series User Manual
Encoder Setup Section

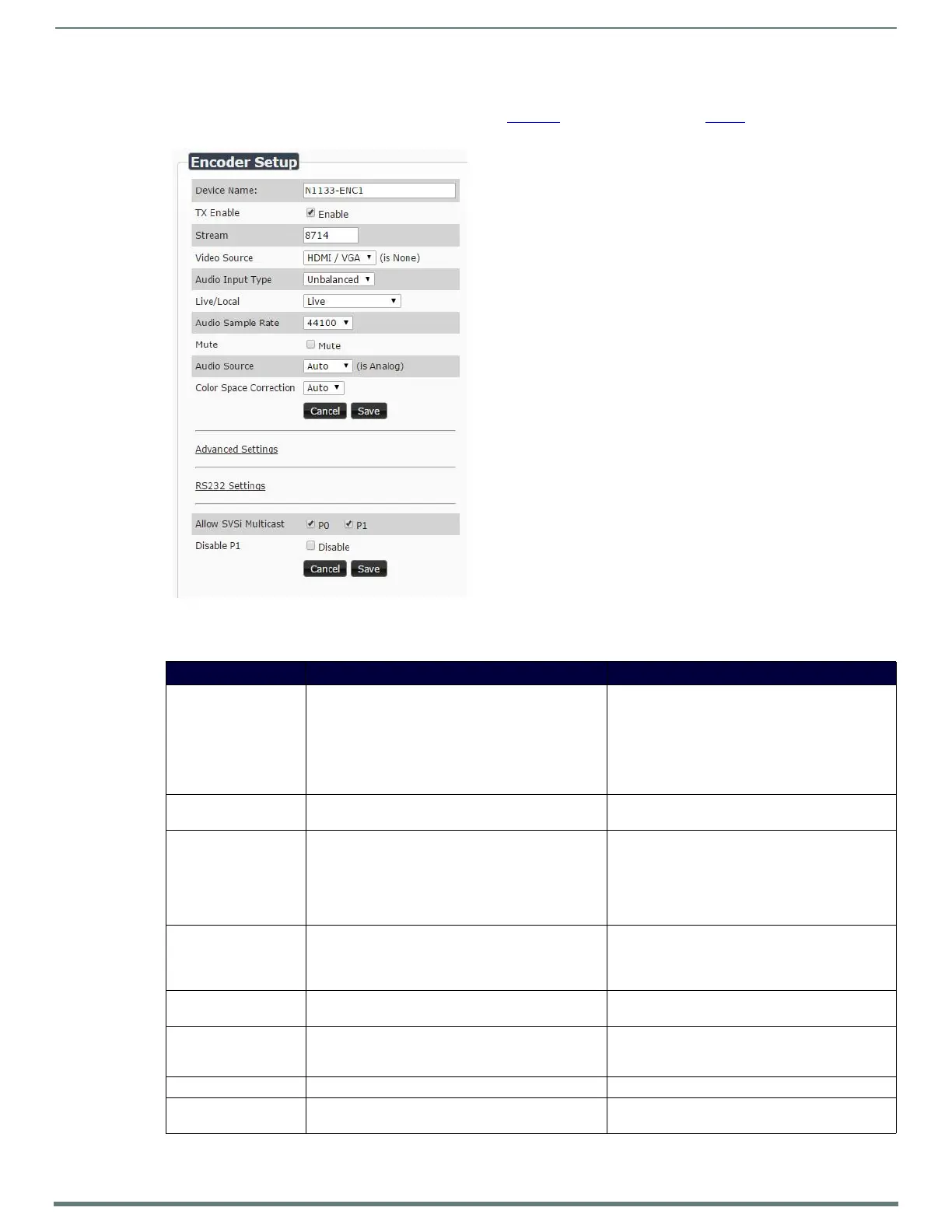

The Encoder Setup section of the Settings page is shown in Figure 23. Options are described in Table 1.
FIG. 23
Encoder Setup Section
TABLE 1 Settings Page: Encoder Setup Section
Option Description Notes
Device Name Enter a user-friendly name for the unit. More descriptive names in this field help you organize
and manage the SVSI system efficiently. Names
based on the unit’s location and function are very
useful. Some good examples are Lobby-Left-VGA (for
left side of lobby, VGA input) or CR201-HDMI (for
Conference Room 201, HDMI input). Keep in mind the
matrices are organized alphanumerically.
TX Enable Enable to broadcast the AV signals. Disable to turn off/
stop broadcasting.
Stream View/edit the current transmit stream number. To better understand this setting, think of Encoders
more like a channel on a cable box, rather than a
traditional AV Matrix. Each Encoder must have a
unique stream number, just like every channel must
have a unique channel number (e.g., Food Network
and HGTV cannot both be on channel 201).
Video Source Select which input port is encoding video. Selecting HDMI/VGA declares HDMI as the primary
port and VGA as the secondary port (when there is no
HDMI input). Selecting VGA only or HDMI only
disables the other video input port.
Audio Input Type Select Unbalanced (single-ended) or Balanced analog
audio input.
Live/Local Select live video or locally stored images for
transmission onto the network. When video is not
available, it automatically goes into local mode.
When video is not available, the most recently played
local playlist is displayed.
Audio Sample Rate Select the sample rate, in Hz, for the analog audio.
Mute Enable to stop the transmission of audio data onto the
network.
