Crop/Pan/Zoom Page

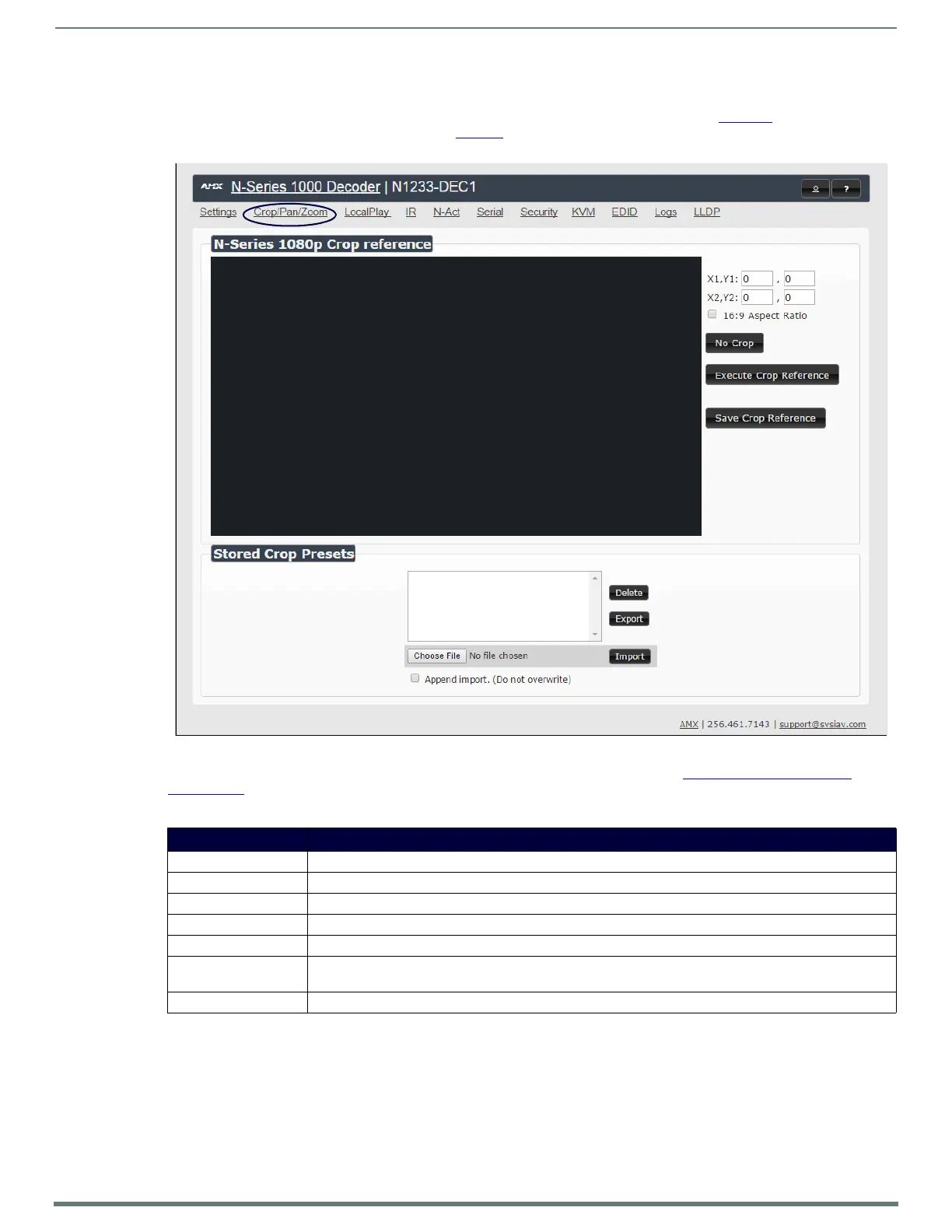

Click the Crop/Pan/Zoom link at the top of any of the main web pages to access the page shown in Figure 49. This page allows you
to customize the viewable portion of the input. See Table 20
for option descriptions.
FIG. 49
Crop/Pan/Zoom Page
NOTE: The Scaler check box must be enabled for changes on this page to take effect. See the Settings Page: Decoder Setup
Section table on page 43 for more information.
TABLE 20 Crop/Pan/Zoom Page Options
Option Description
X1, Y1 Set pixel coordinates of viewing area (top left).
X2, Y2 Set pixel coordinates of viewing area (bottom right).
16:9 Aspect Ratio Enable to force to a 16:9 ratio.
No Crop Click to disable existing crop settings and return unit to default output settings.
Execute Crop Reference Click to execute changes.
Save Crop Reference Click to save the current settings and store them as a preset for later use. Presets can be used by third-party
controllers.
Stored Crop Presets Use this section of the page to select/delete/export/import cropping presets.
