Click the Serial link at the top of any of the main web pages to access the page shown in Figure 33. This page allows you to upload
and execute commands used for direct control of serial devices. Commands may be saved for future use and executed later. The
Serial Code menu lists all saved commands. See Table 10
for option descriptions.
NOTE: If the Port 5004/Serial Port is currently in use by another device, sending commands from the Serial page will always return a
No Data message and fail to send the commands.

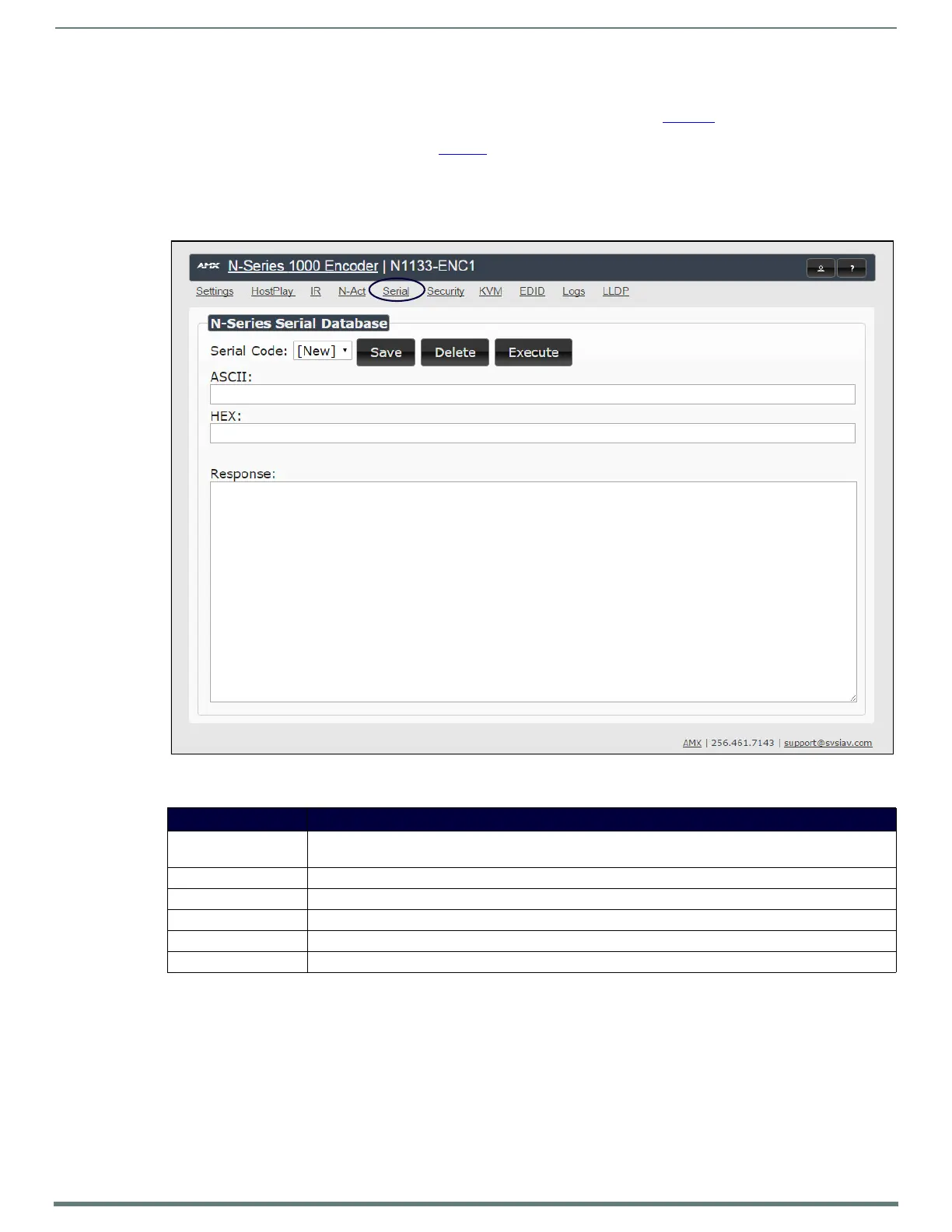

FIG. 33
Serial Page
TABLE 10 Serial Page Options
Option Description
Serial Code Create/select serial commands. Different vendors have different codes that can usually be found through a web
search. Copy/paste new commands (in either ASCII or HEX) directly into the appropriate input space.
Save Save the current code.
Delete Delete the current code.
Execute Apply the selected code to the Encoder’s serial connection.
ASCII and HEX Paste serial commands directly into either the ASCII or HEX field.
Response View responses provided by the device receiving the serial command(s).
