SECTION 6 PERFORMANCE TESTS
6-31
Step Procedure
9 As shown on Fig. (b), read the level of the current marker when ATT is set at 5dB. An error
is determined as calibrated ATT 5 dB value+∆ marker level.
10 Add a marker level corresponding to the calibrated ATT value when ATT is set as 10 to 90
DB (with 5 dB steps) and determine the error.
∆
MKR : 0.000kHz 0.0dB
ATT 0dB reference
∆
MKR : 0.000kHz
– 5.04dB
( 5 dB corrected value ) + ( Marker level )

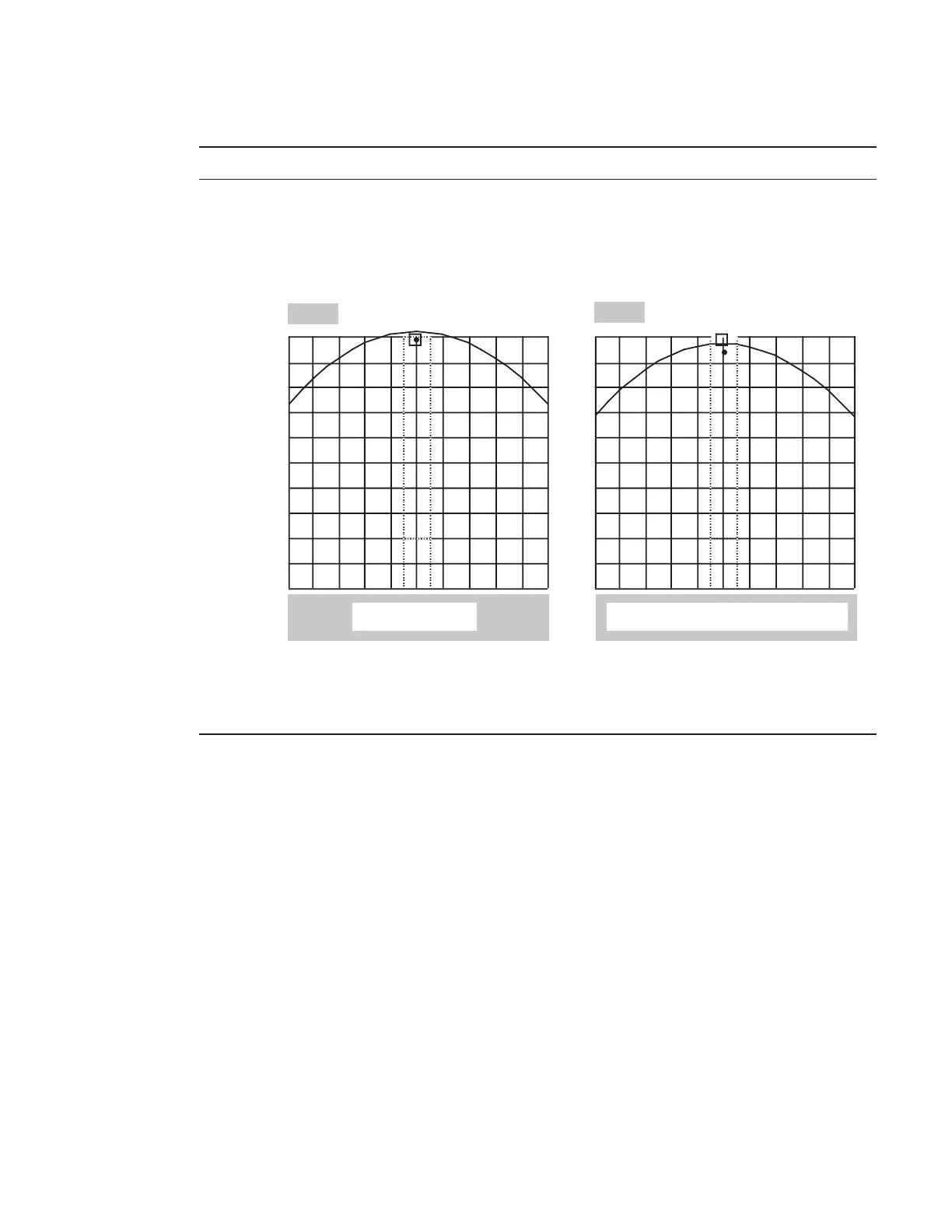

(a) Reference Point Setting
(b) ∆ Marker Level when ATT is 5
