Spectrum Analyzer Verification 2-5 Spectrum Analyzer Absolute Amplitude Accuracy Verification
S3xxE MM PN: 10580-00253 Rev. J 2-9
Measuring the Unit for 50 MHz Amplitude Accuracy
1. Remove Sensor A, add the adapter and connect it to the Spectrum Analyzer RF In connector of the S332E
or S362E Site Master as shown in Figure 2-2.
2. On the S332E or S362E, press the Shift key and then the Mode (9) key. Rotate the knob to highlight
Spectrum Analyzer and then press the Enter key to switch to Spectrum Analyzer mode.
3. Press the Shift key, the Preset (1) key, and then the Preset soft key to reset to the default starting
conditions.
4. Press the Shift key, the Sweep (3) key, then the Sweep Mode soft key, and press the Performance soft key.
5. Press the Freq soft key and press the Center Freq soft key.
6. Use the keypad to enter 50 and press the MHz soft key.
7. Press the BW soft key and the RBW soft key.
8. Use the keypad to enter 1 and press the kHz soft key.
9. Press the VBW soft key and use the keypad to enter 0, then press the Hz soft key.
10. Press the Span soft key, use the keypad to enter 10, and press the kHz soft key.

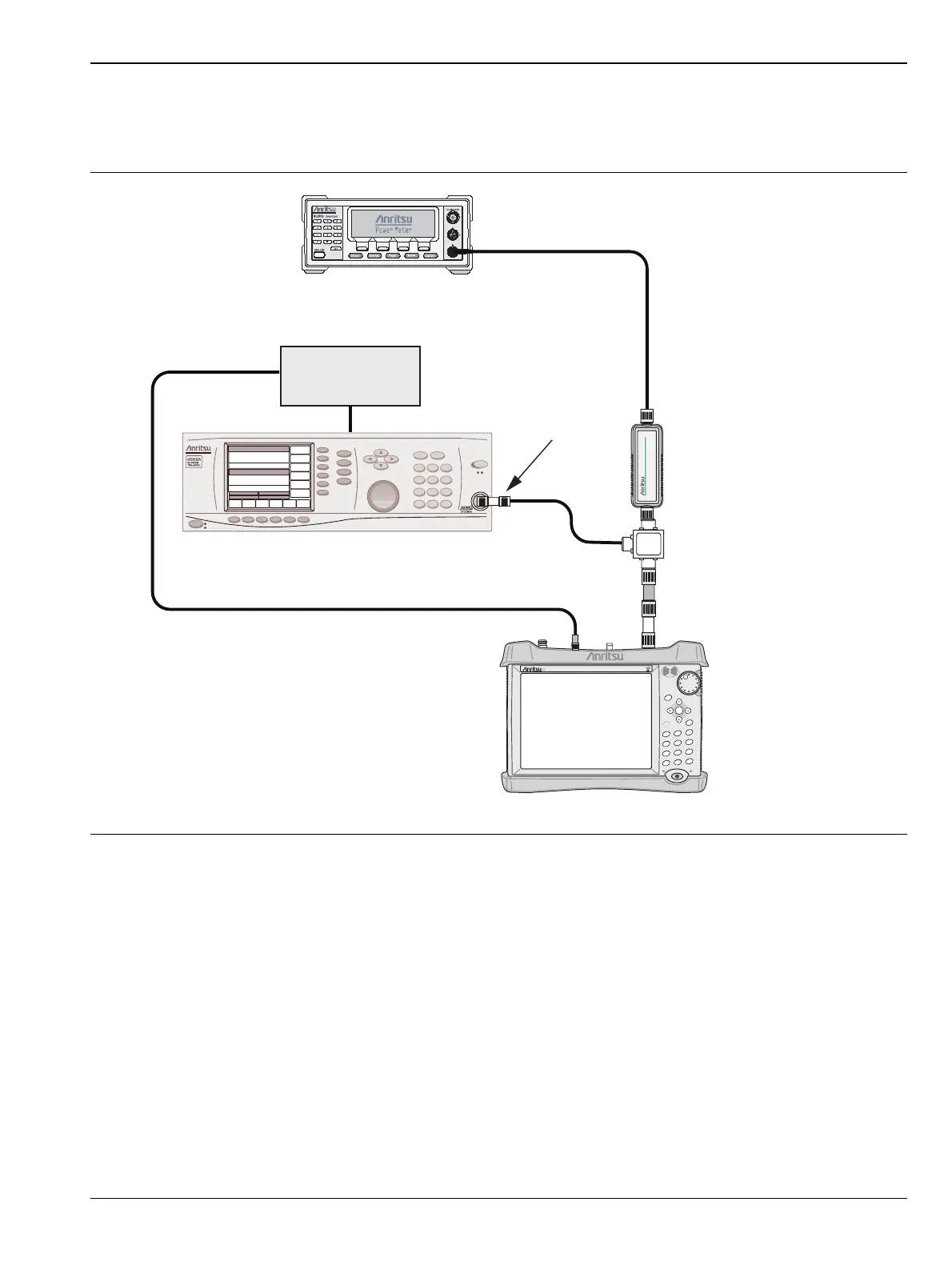

Figure 2-2. Absolute Amplitude Accuracy Verification Test Setup
S3xxE Site Master
Power Charge
+/-
.
0
3
Sweep
2
Calibrate
1
Preset
6
Limit
5
Trace
4
Measure
9
Mode
8
System
7
File
Shift
Back
Enter
ESC
SiteMaster
S332E
MG3692x Synthesized Signal Generator
10 MHz
Reference
ML2438A Power Meter
MA2442D
Sensor B
1870A
Power Splitter
Adapter
N(m) to N(m) Adaptor
10 dB Attenuator
