E-ITN 30
Installation and service manual M2019/01a [EN]
7. INSTALLATION METHODS
7.1. ALLOCATOR INSTALLATION
The back plate is mounted on the radiator using mounting material in compliance with EN 834:1995 and with
Installation and service manual. Mounting material is provided by manufacturer and supplied with allocator.
Installation can be done only by person professionally trained by the manufacturer.
Warning!
Static electricity is harmless for humans but can seriously damage electronic devices. When
handling or installing the product follow these rules:
• discharge accumulated static electricity by touching the hand with a grounded metal object (e.g.
radiator) before installation,
• keep the product in antistatic package until installation,
• do not touch the PCB before or during installation,
• avoid PCB contact with other items, especially metallic,
• never remove PCB from the housing,
• do not touch metal parts when handle the product (e.g. temperature sensor body).
Use only original parts or parts approved by the manufacturer for installation, pay attention to the
tightening of mounting material specified torque.
7.2. ALLOCATOR BACK PLATE
The back plate is made of aluminium alloy and designed to have the best heat transfer from the radiator to
the allocator. it is necessary to install back plate to the radiator with recommended mounting material to
ensure the optimal thermal contact.

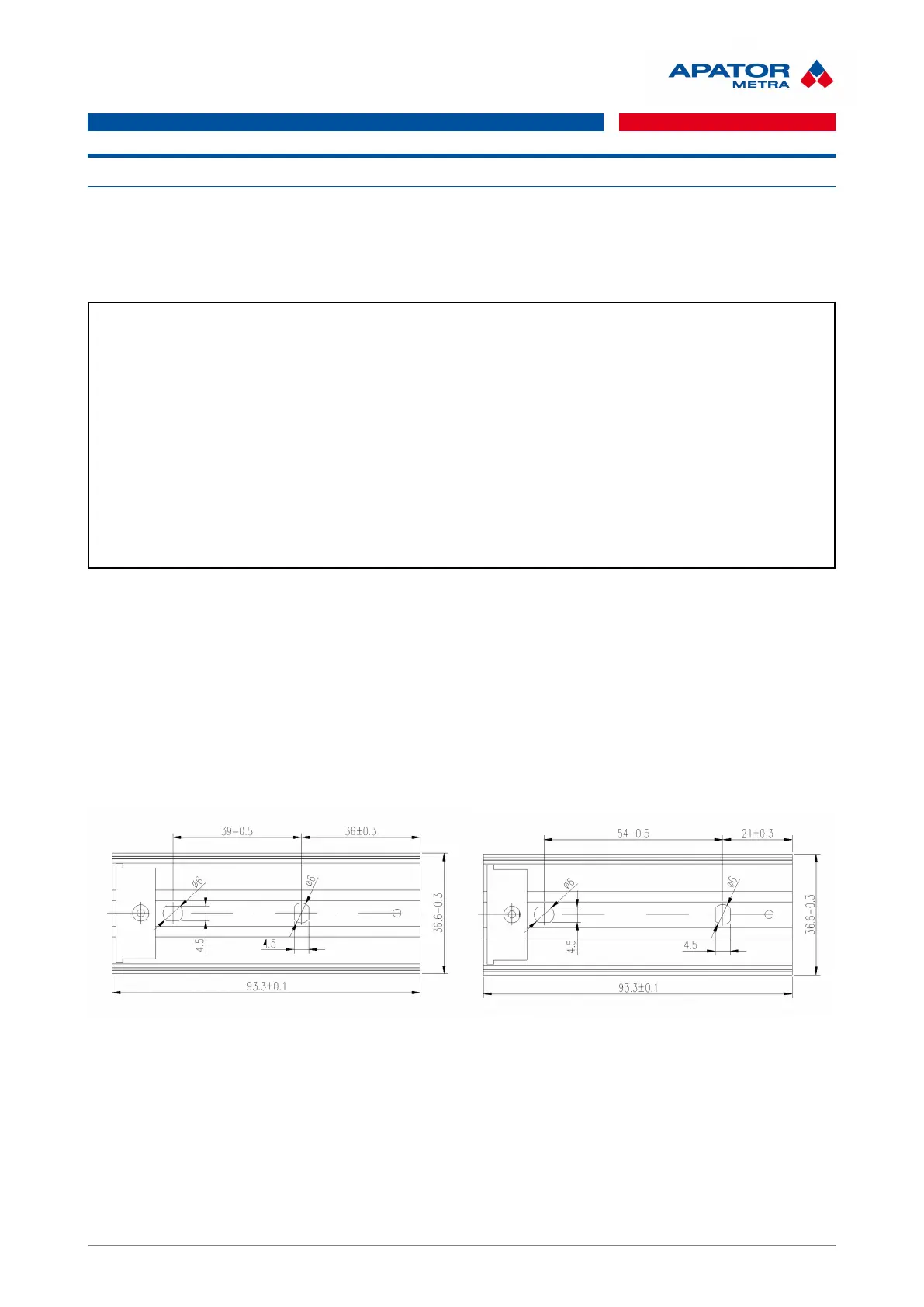

The standard back plate is produced with mounting holes: Illustration 5: Standard back plate. For installation
to JAGA Tempo radiators a different back plate is supplied: Illustration 6: Back plate for JAGA Tempo
radiators.
If agreed with manufacturer, custom back plate version can be produced, e.g. to install the allocators to
formerly installed welding bolts on panel radiators.
21 / 46
