7.15. MODEL NO. 8 – TUBULAR RADIATORS - LADDER
Verified on: K 750/1640, manufacturer: Thermal – trend, s.r.o.

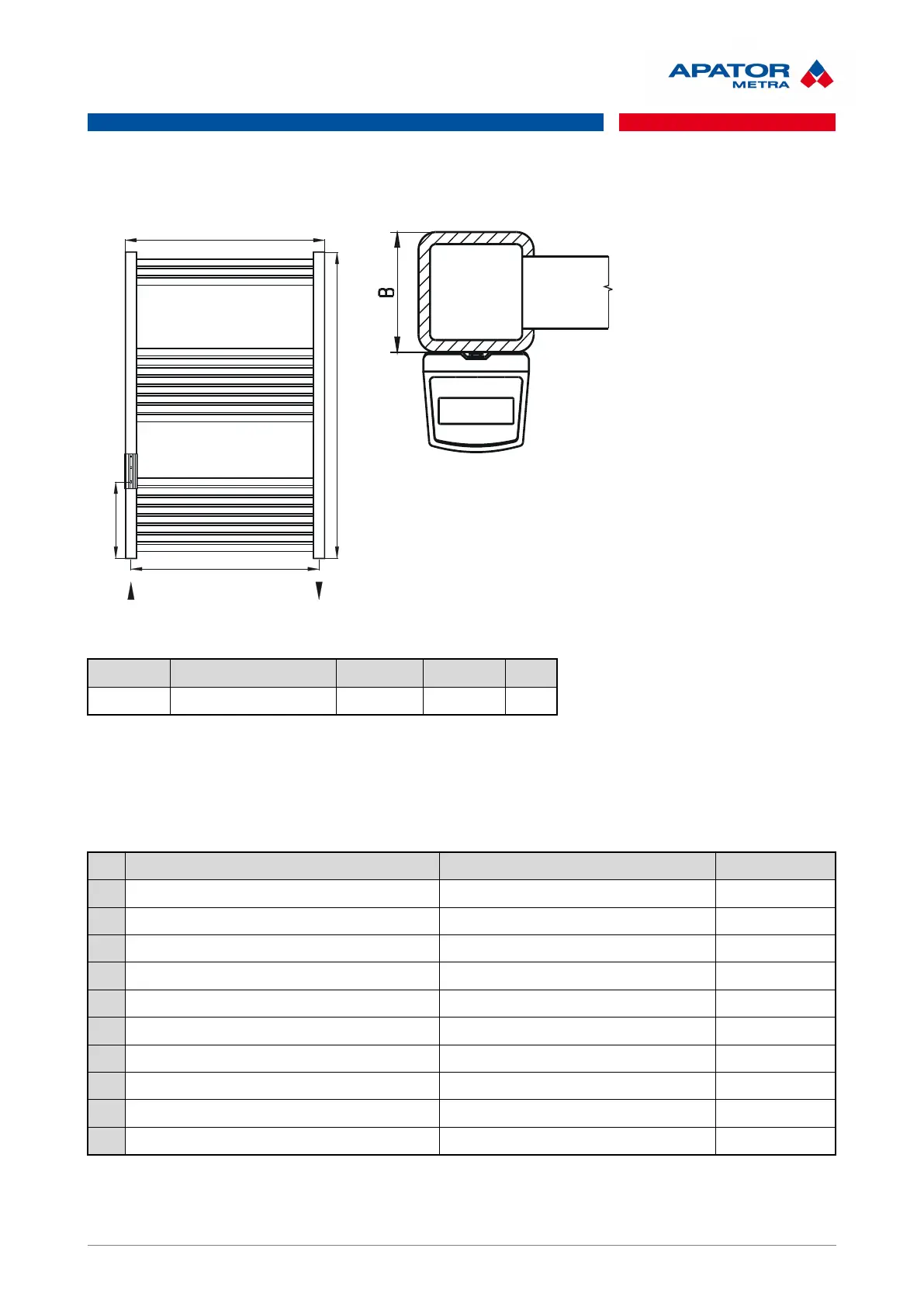

Basic dimensions of the K 750/1640 and data for correct allocator installation (mm):
Height - H Mounting distance - h Length - L Depth - B MM
1640 720 750 30 0052
Heat output Q
N
[W] of the K 600/940 radiator can be found in manufacturer catalogue: Thermal – trend, s.r.o.
Starovičky 11, pošta Hustopeče u Brna
Table 19: Types of heating elements belonging to the model group 8
Type of the radiator Manufacturer of the radiator MM
1 KM, KO, K Thermal – trend, s.r.o. 0052
2 Grenada, Panama AMTEX Radiátory s.r.o. Blansko 0052
3 Koralux Linear, Linear Classic KORADO a.s. Č.Třebová 0052
4 Koralux Rondo, Rondo Classic KORADO a.s. Č.Třebová 0053
5 Clasic, Premier, Eliptic Neria a.s. Hustopeče u Brna 0053
6
7
8
9
10
